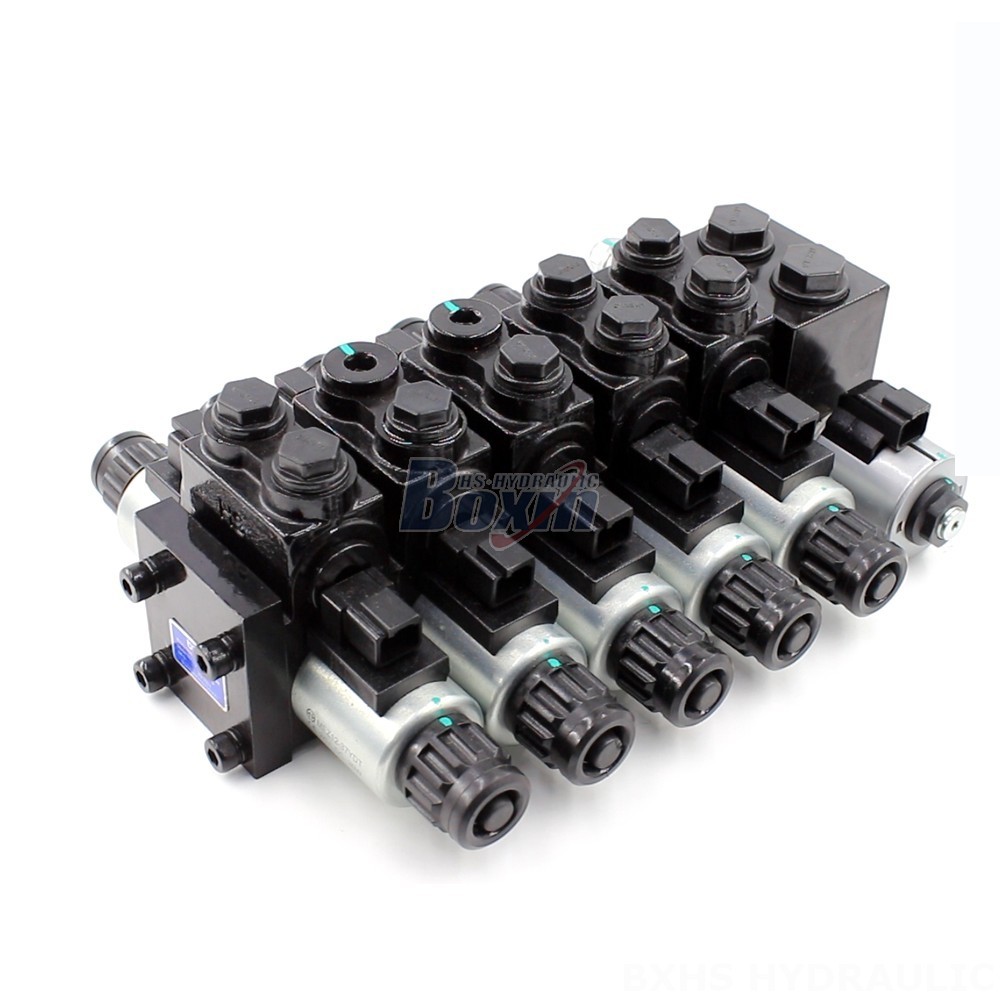

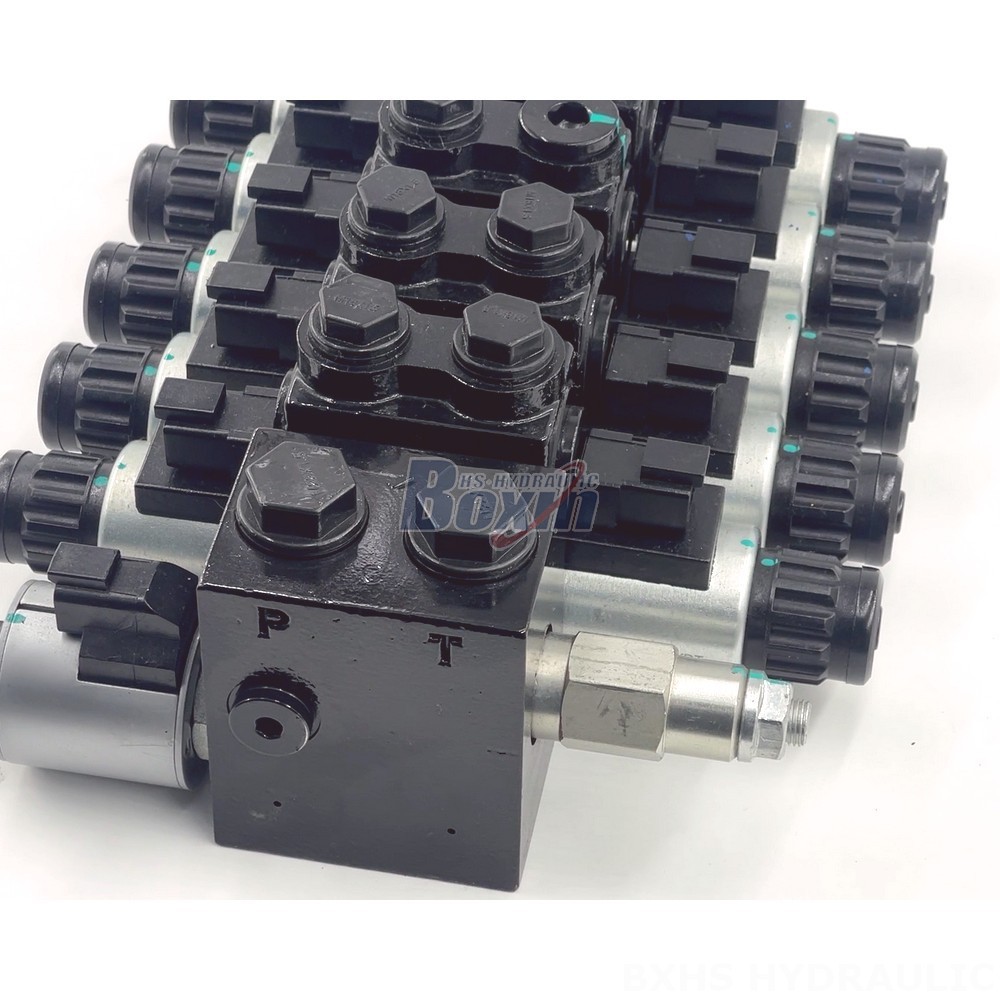

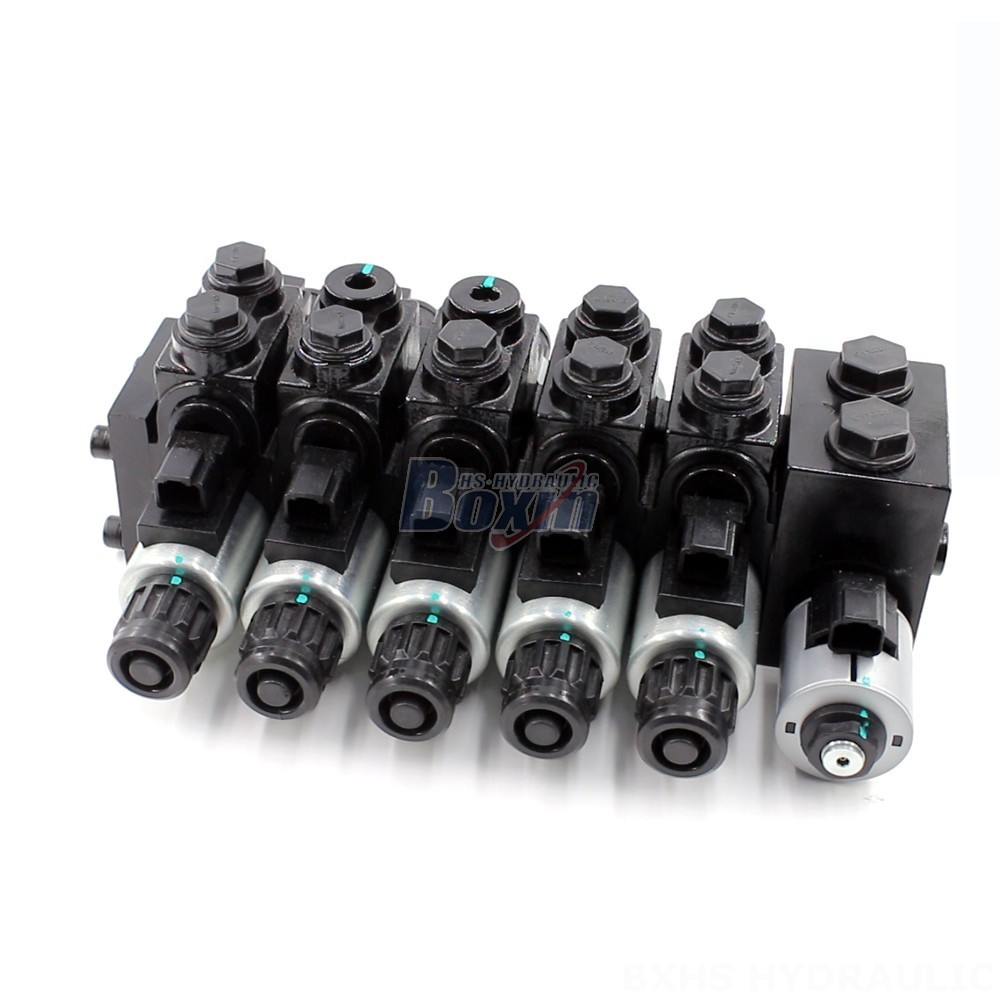

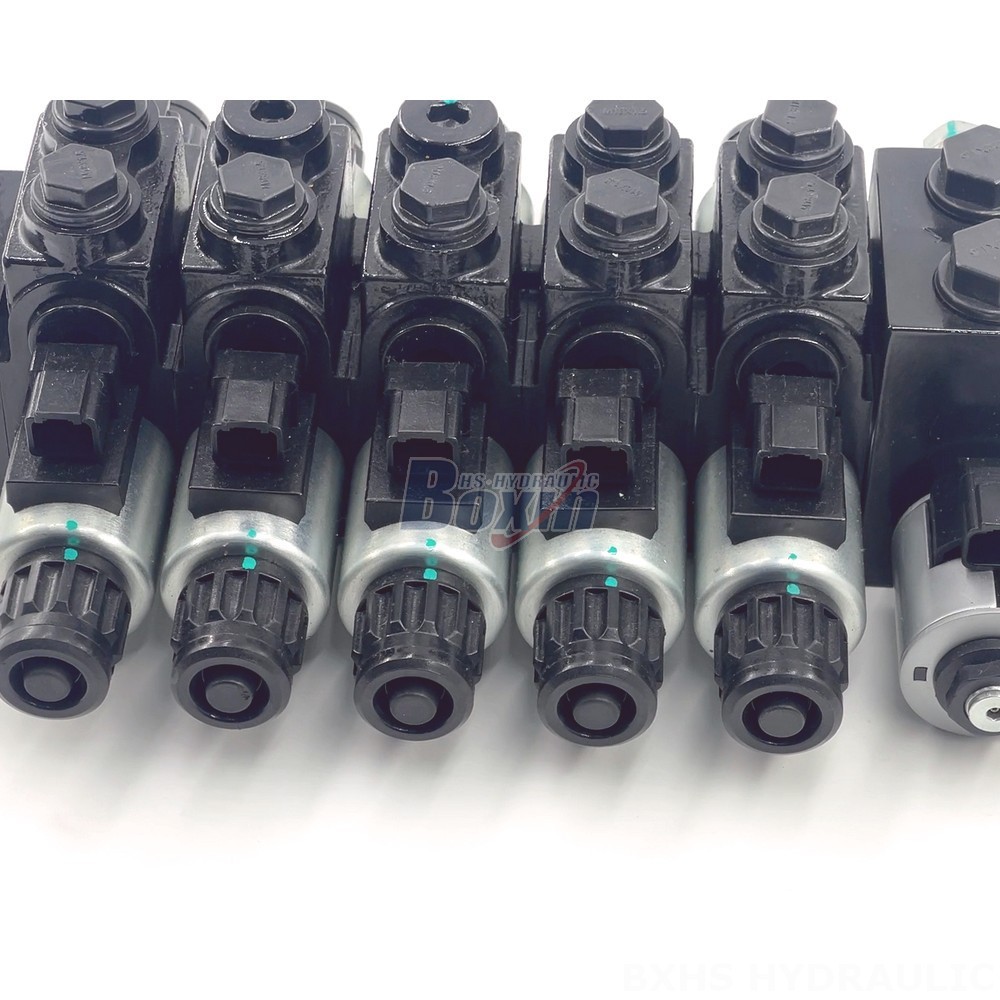

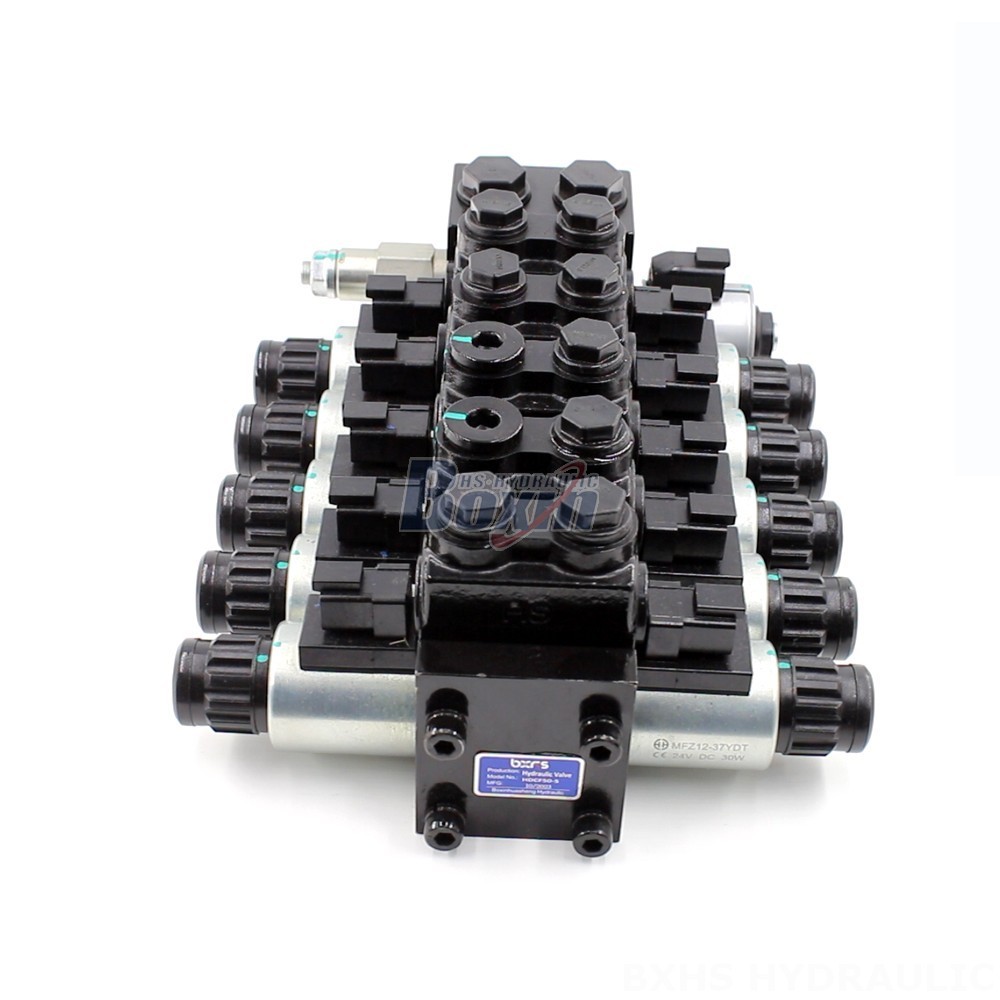

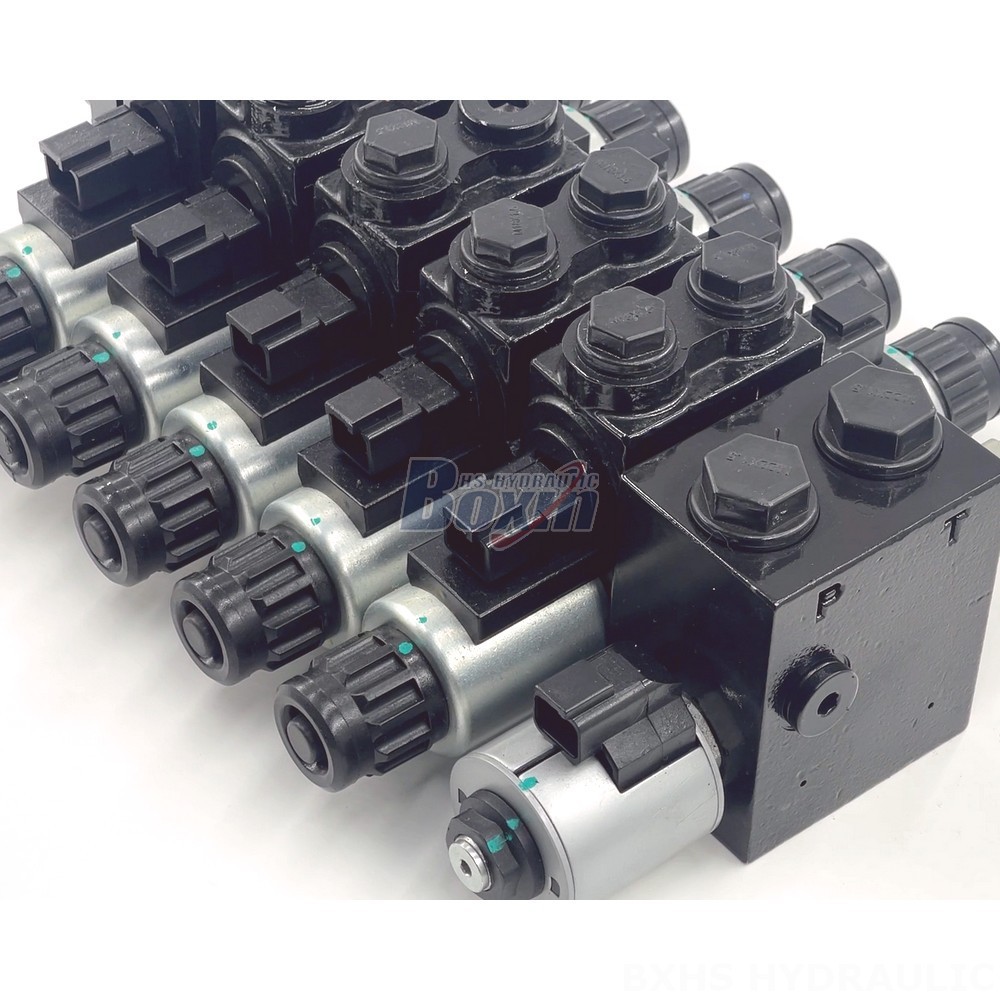

The Advanced HDCF50 Solenoid Control Valve is a high-performance hydraulic valve designed for demanding applications across various industries. With its robust sectional structure, 50 L/min flow capacity, and 160 bar pressure rating, this valve offers exceptional control and reliability.
| HDCF50系列 电磁控制阀 参数 | |
|---|---|
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联 |
| 控制方式 | 电磁 |
| 接口尺寸 | M22×1.5螺纹, SAE 8接头 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 环境温度范围 | -20°C to +80°C (-4°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 出油口 | M18×1.5螺纹, M22×1.5螺纹, SAE 8接头 |
| 最大压力 | 160 bar (2300 psi) |
| 额定流量 | 50 L/min (13.2 US gpm) |
| 结构类型 | 分片阀 |
| 进油口 | M18×1.5螺纹, M22×1.5螺纹, SAE 8接头 |
**Product Name:** Advanced HDCF50 Solenoid Control Valve
**Control Method:** Solenoid
**Section:** 5 Section
**Structure Type:** Sectional Valve
**Rated Flow:** 50 L/min (13.2 US gpm)
**Max Pressure:** 160 bar (2300 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -20°C to +80°C (-4°F to +176°F)
**Spool:** 5 Spool
**Voltage:** 12V 24V
**Series:** HDCF50 Series
**Application Area:** Material Handling, Construction and Earth Moving, Agriculture, Industrial Vehicles
**Applicable Model:** Telehandler, Forklift, All Terrain Crane, Stacker, Aerial Platform, Motor Grader, Mini-Excavator, Skid Steer Loader, Compact Wheel Loader, Wheel Loader
**Key Features:**
- Advanced design for demanding hydraulic applications
- Sectional valve construction allows for customization and flexibility
- High flow capacity of 50 L/min ensures efficient operation
- Maximum pressure rating of 160 bar for heavy-duty applications
- Wide operating viscosity range from 15 to 75 cSt
- Robust construction with high durability and reliability
- Available in various spool configurations and voltage options
- Suitable for a wide range of hydraulic systems and equipment
- Backed by global manufacturing and support
