Hydraulic Hand Pump 50 cc/rev Gear Pump: CBHS-F550 | Factory Direct & Customizable

排量:50 毫升/转

额定压力:20 MPa (2900 psi)

最大压力:25 MPa (3625 psi)

最大转速:3000 r/min

旋转方向:右旋（顺时针旋转）

品牌:BXHS

所属类别:液压齿轮泵

产品系列:CBHS-F5系列液压齿轮泵

Packagingsize:37*17*17

Grossweight:14.00 kg

库存: 有货

描述

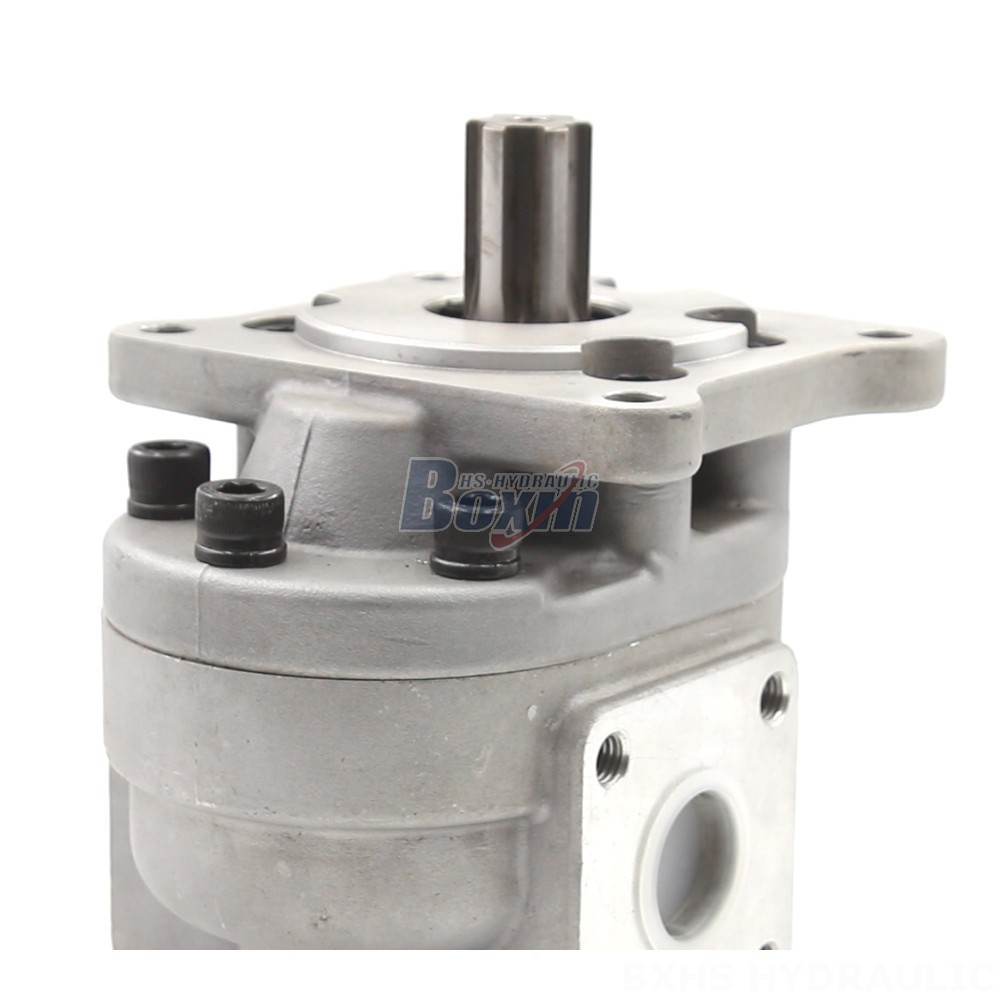

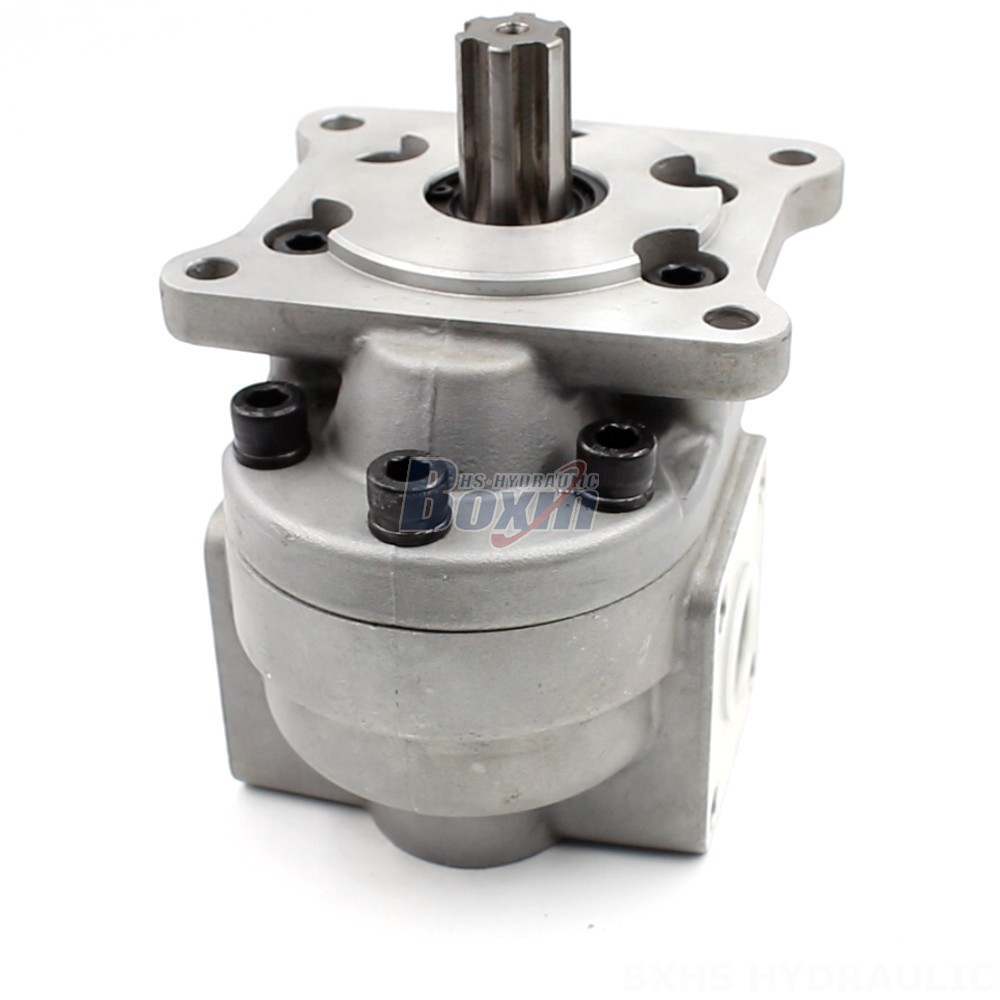

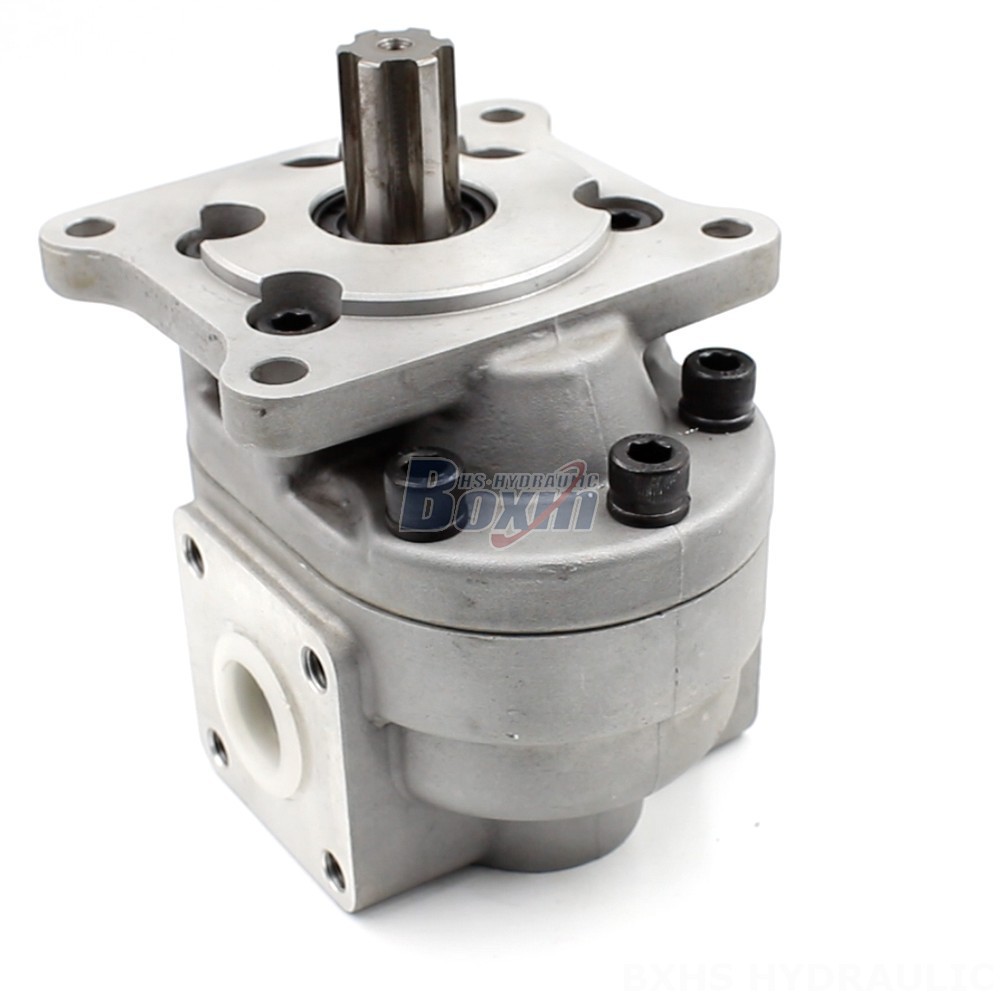

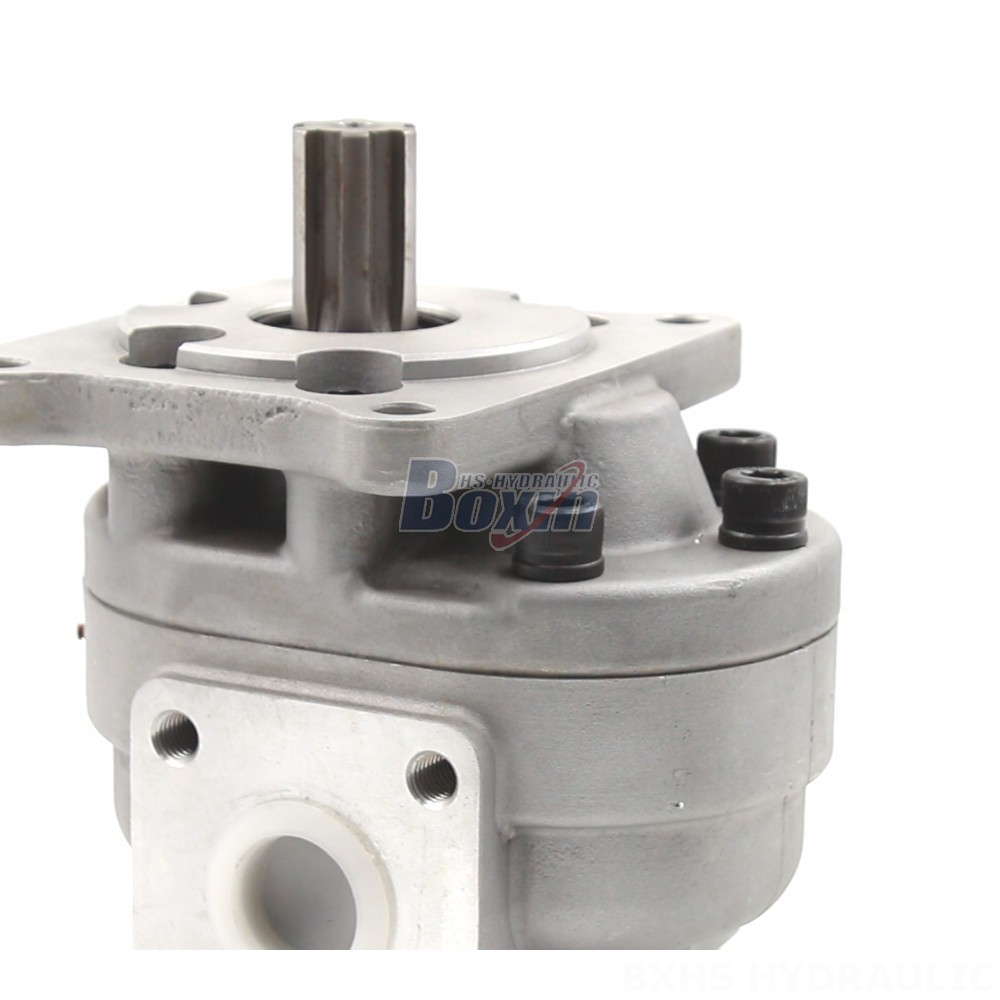

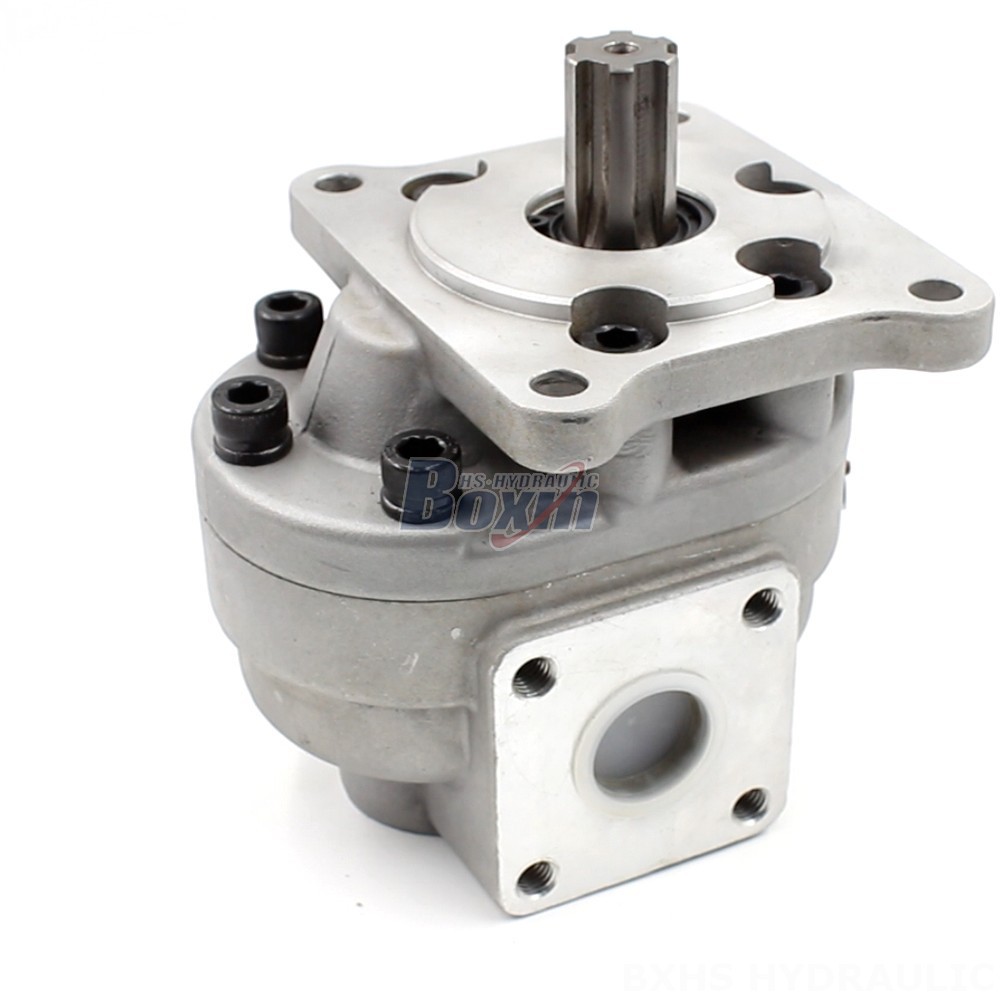

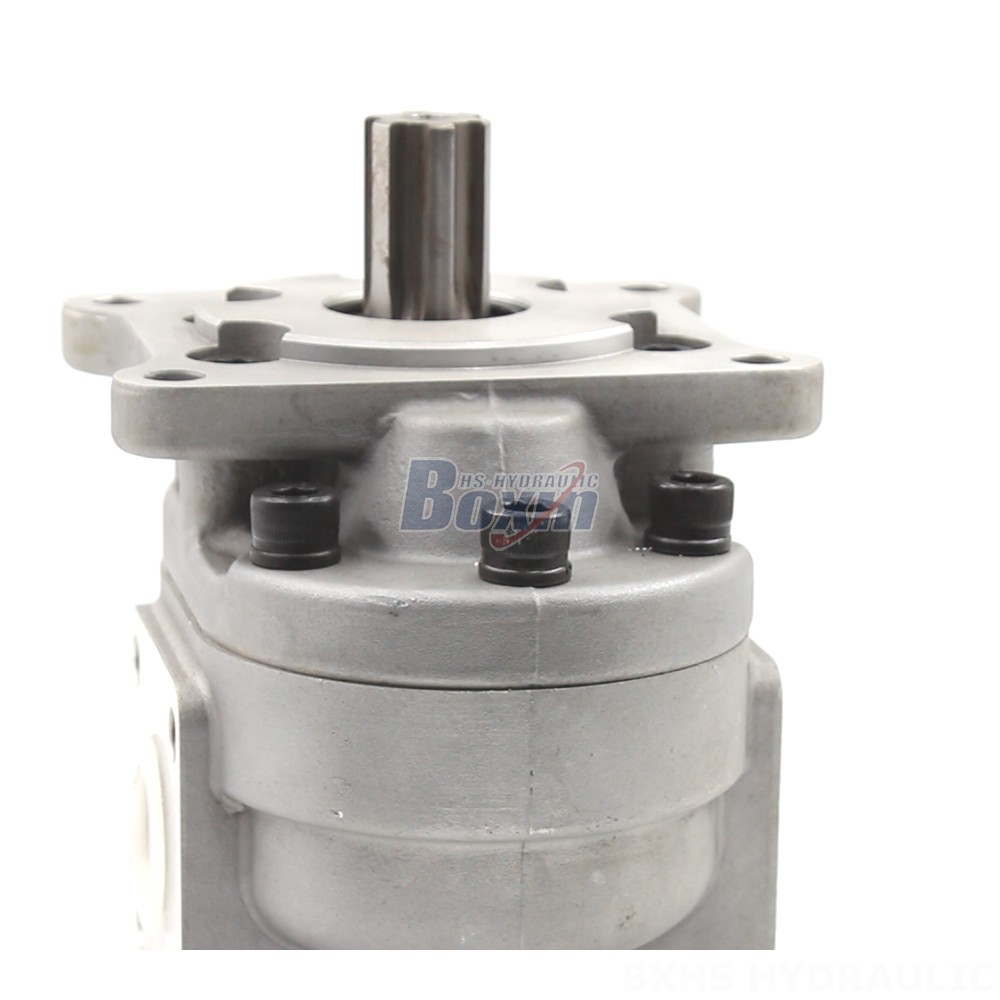

Hydraulic Hand Pump 50 cc/rev Gear Pump: CBHS-F550 | Factory Direct & Customizable

Hydraulic Hand Pump 50 cc/rev Gear Pump: CBHS-F550 | Factory Direct & Customizable drawing image

The CBHS-F550 Gear Pump is a high-performance hydraulic pump designed for demanding applications in various industries. With a displacement of 50 cc/rev and a rated pressure of 20 MPa, it delivers exceptional power and efficiency.

CBHS-F5系列液压齿轮泵参数
排量	32 毫升/转, 50 毫升/转, 63 毫升/转, 20 毫升/转
额定压力	20 MPa (2900 psi)
最大压力	25 MPa (3625 psi)
额定转速	2000 r/min
最大转速	2500 r/min
旋转方向	左旋（逆时针旋转）, 右旋（顺时针旋转）
材质	铸铁
架构	外啮合齿轮泵
法兰盘类型	B-方形法兰
轴伸形式	H:矩形花键, X:渐开线花键, P：普通键

**CBHS-F550 Gear Pump: Technical Specifications**

- Displacement: 50 cc/rev
- Rated Pressure: 20 MPa
- Rated Speed: 2000 r/min
- Max Speed: 2200 r/min
- Rotation: Left (counter-clockwise) or Right (clockwise)
- Structure: Internal Gear Pump
- Material: Cast Iron
- Flange Version: B-Square Flange
- Shaft Type: Plain Key, Rectangle Spline, or Involute Spline

**Applications:**

- Material Handling Equipment
- Construction and Earth Moving Machinery
- Agricultural Equipment
- Industrial Vehicles

**Applicable Models:**

- Telehandlers
- Forklifts
- All Terrain Cranes
- Stackers
- Aerial Platforms
- Motor Graders
- Midi-Excavators
- Mini-Excavators
- Skid Steer Loaders
- Compact Wheel Loaders
