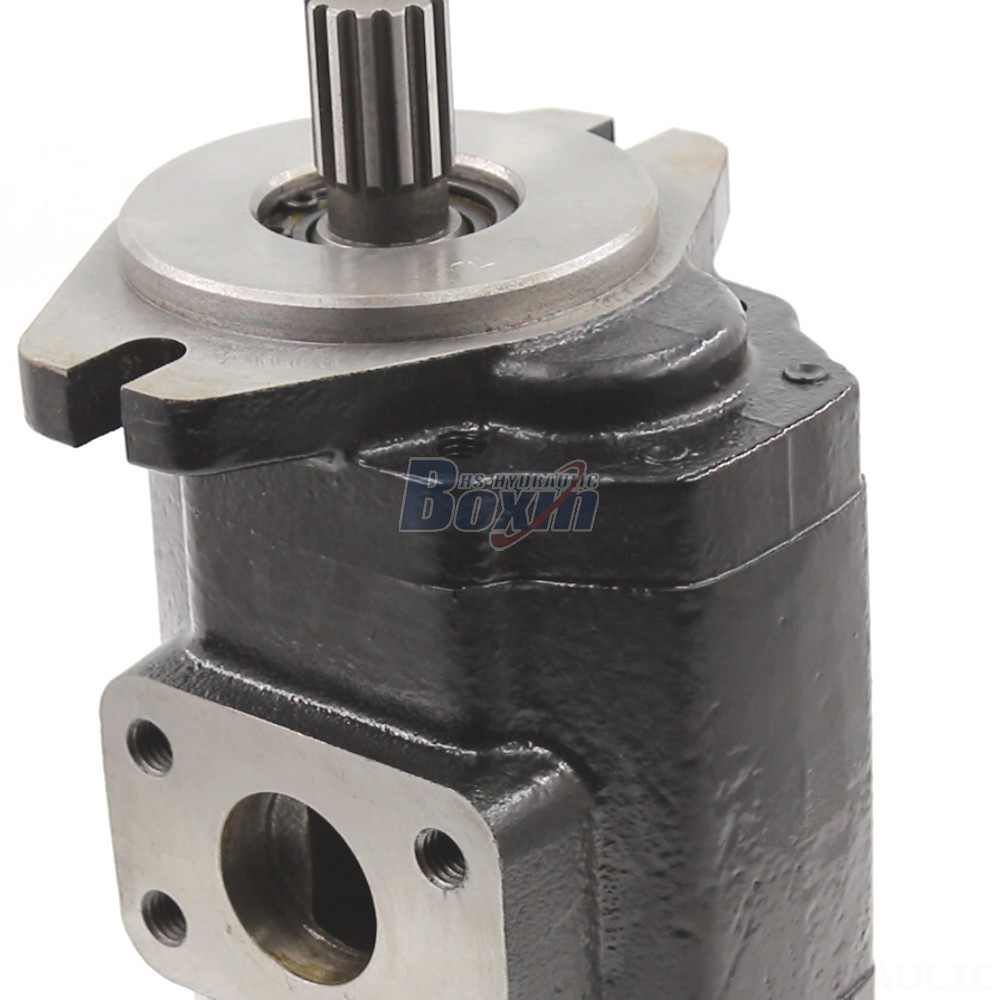

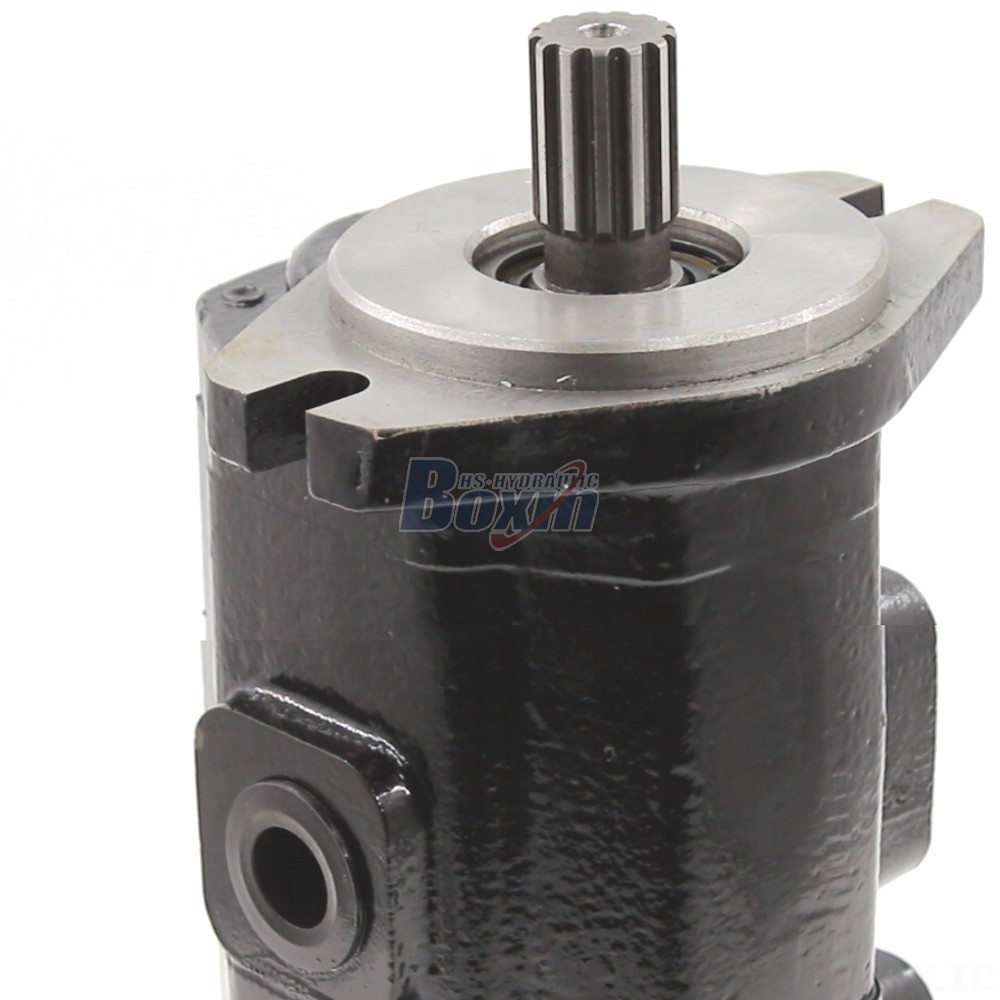

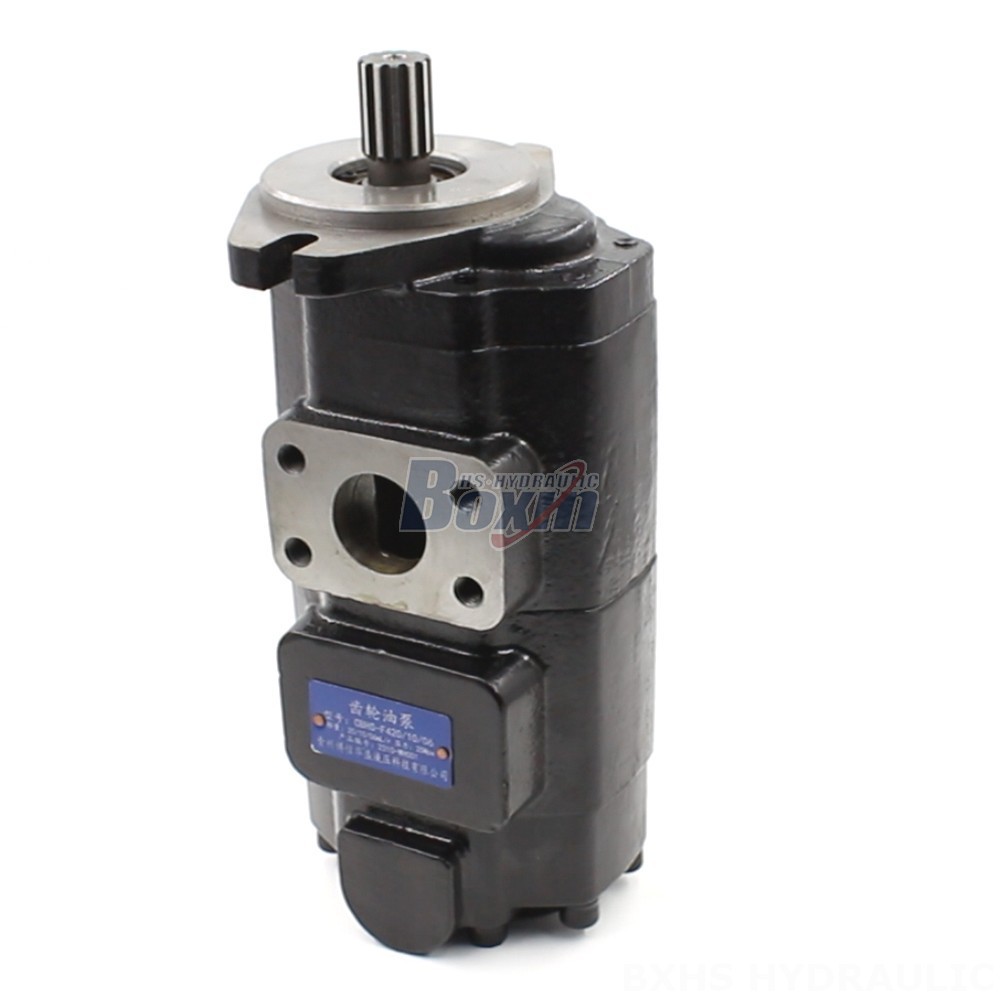

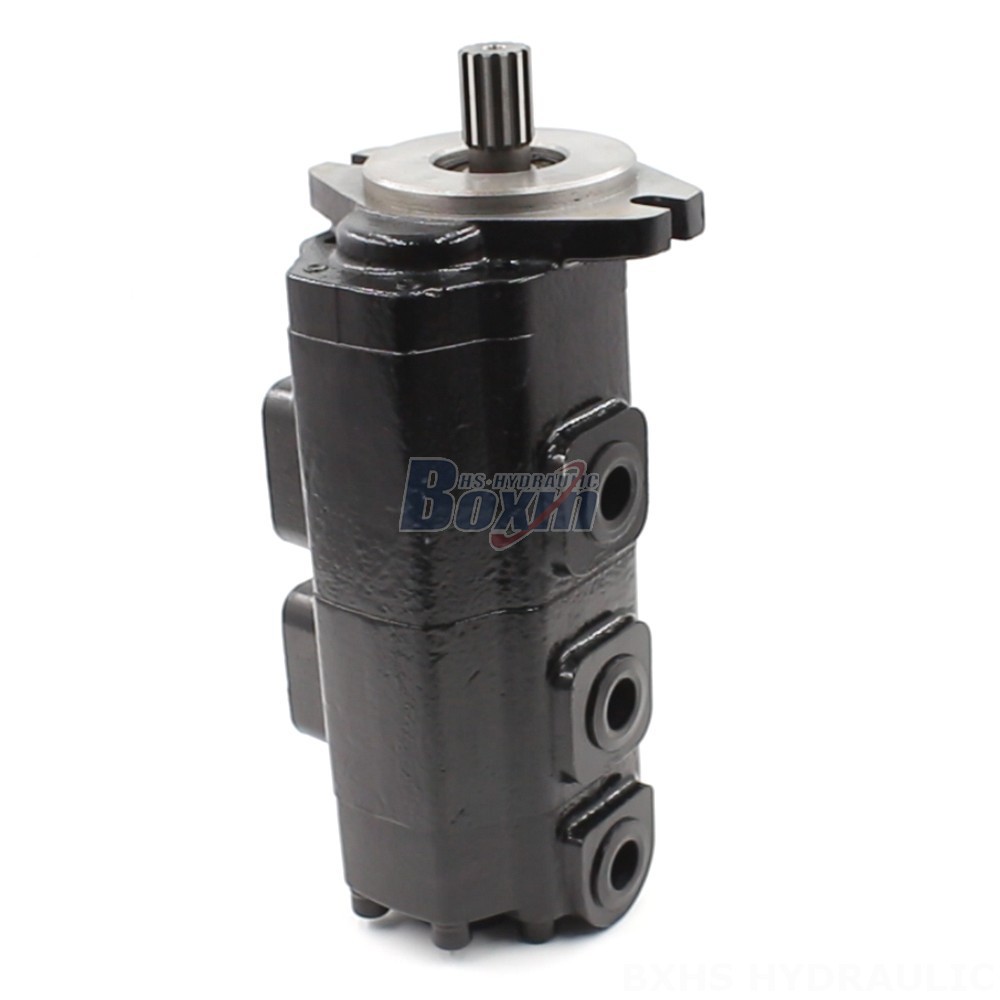

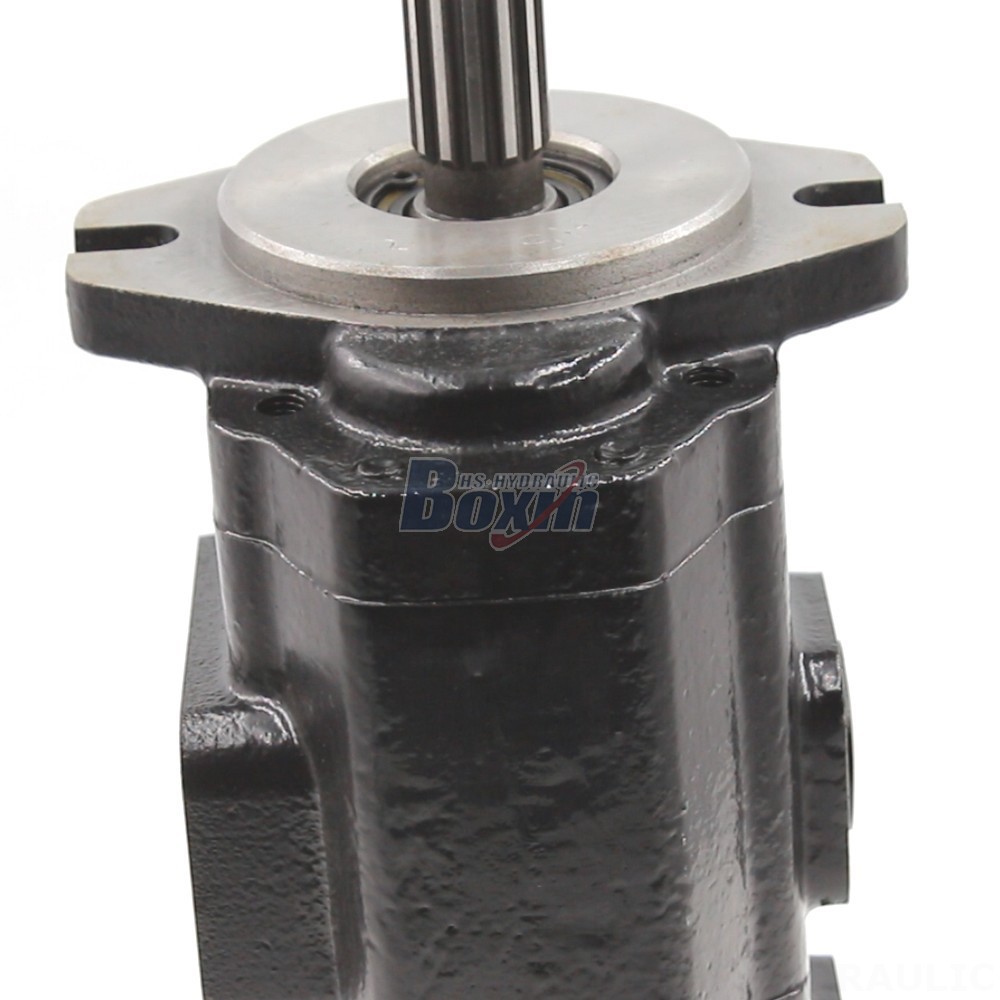

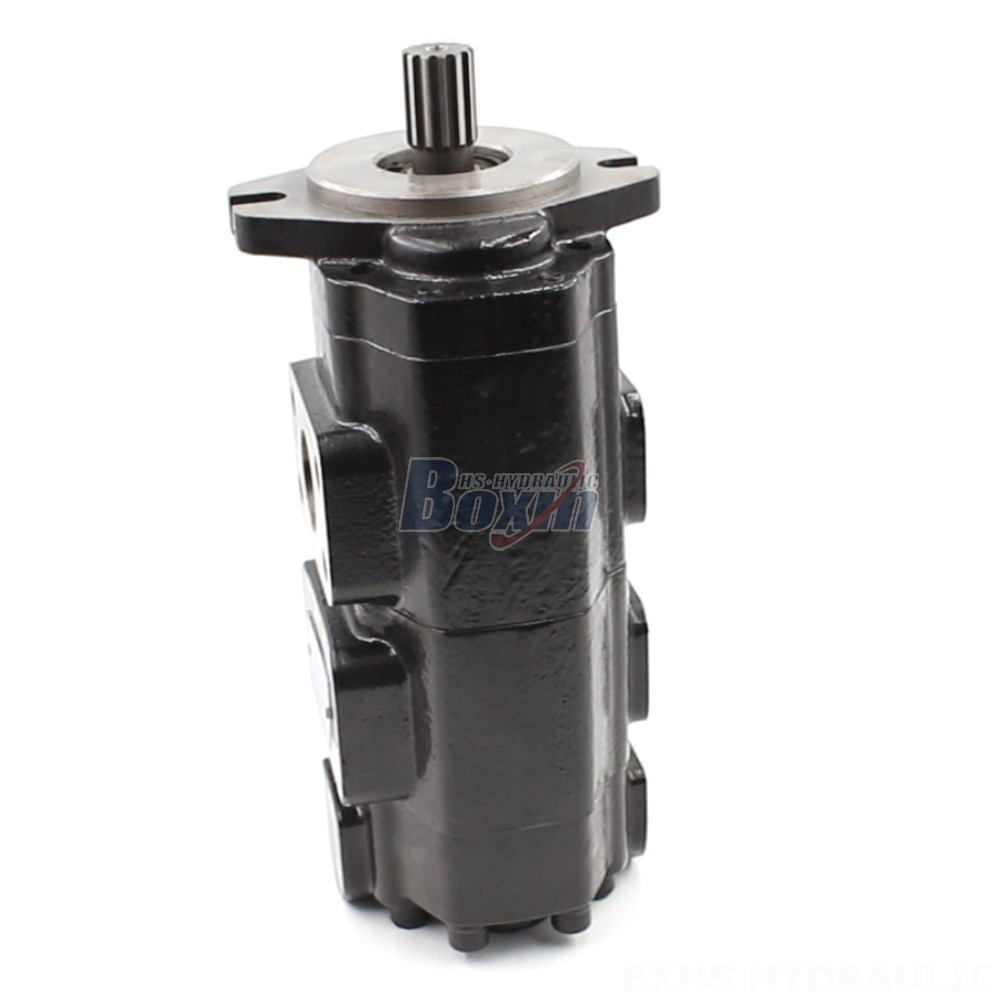

This is a high-quality, durable hydraulic gear pump designed for use in a wide range of applications, including construction equipment, agricultural machinery, industrial vehicles, and material handling. Available in various displacements, pressure ratings, and configurations to meet your specific needs.
| CBHS-F4系列 液压齿轮泵 参数 | |
|---|---|
| 排量 | 40 毫升/转, 25 毫升/转, 20 毫升/转 |
| 额定压力 | 20 MPa (2900 psi), 25 MPa (3625 psi) |
| 最大压力 | 25 MPa (3625 psi) |
| 额定转速 | 2000 r/min |
| 最大转速 | 2500 r/min |
| 旋转方向 | 左旋(逆时针旋转), 右旋(顺时针旋转) |
| 材质 | 铸铁, 铝+铸铁, 铝 |
| 架构 | 凸轮类型 |
| 法兰盘类型 | A-菱形法兰, B-方形法兰, ISO-4 安装孔, UNI-3 安装孔, SAE法兰 |
| 轴伸形式 | H:矩形花键, X:渐开线花键, P:普通键 |
Our 40 cc/rev Hydraulic Gear Pump is available for wholesale orders and bulk purchases. The pump features a robust design with a displacement ranging from 32 cc/rev to 80 cc/rev and pressure ratings up to 25 MPa (3625 psi). It operates at speeds up to 2500 r/min and is available with right or left rotation. The pump can be configured with different flange versions (A-Oval or B-Square), shaft types (H: Rectangle Spline), and is part of the CBHS-F4 Series. Ideal for various applications like construction and earth moving, agriculture, industrial vehicles, and material handling. It is suitable for forklifts, telehandlers, mini and midi excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters. We offer OEM, ODM, private label, and customizable options to meet your specific requirements.
