Directional Control Valve Hydraulic Price 3-Spool Monoblock Valve | P80 Series | Factory Direct

控制方式:电磁

路数:3 联

额定流量:80 L/min (21.2 US gpm)

最大压力:200 bar (2900 psi)

进油口:G3/4接口

出油口:G3/4接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P80系列 单块式方向阀

Packagingsize:33*28*13

Grossweight:13.00 kg

库存: 有货

1054 次查看了此产品

Directional Control Valve Hydraulic Price 3-Spool Monoblock Valve | P80 Series | Factory Direct

Directional Control Valve Hydraulic Price 3-Spool Monoblock Valve | P80 Series | Factory Direct

Directional Control Valve Hydraulic Price 3-Spool Monoblock Valve | P80 Series | Factory Direct drawing image

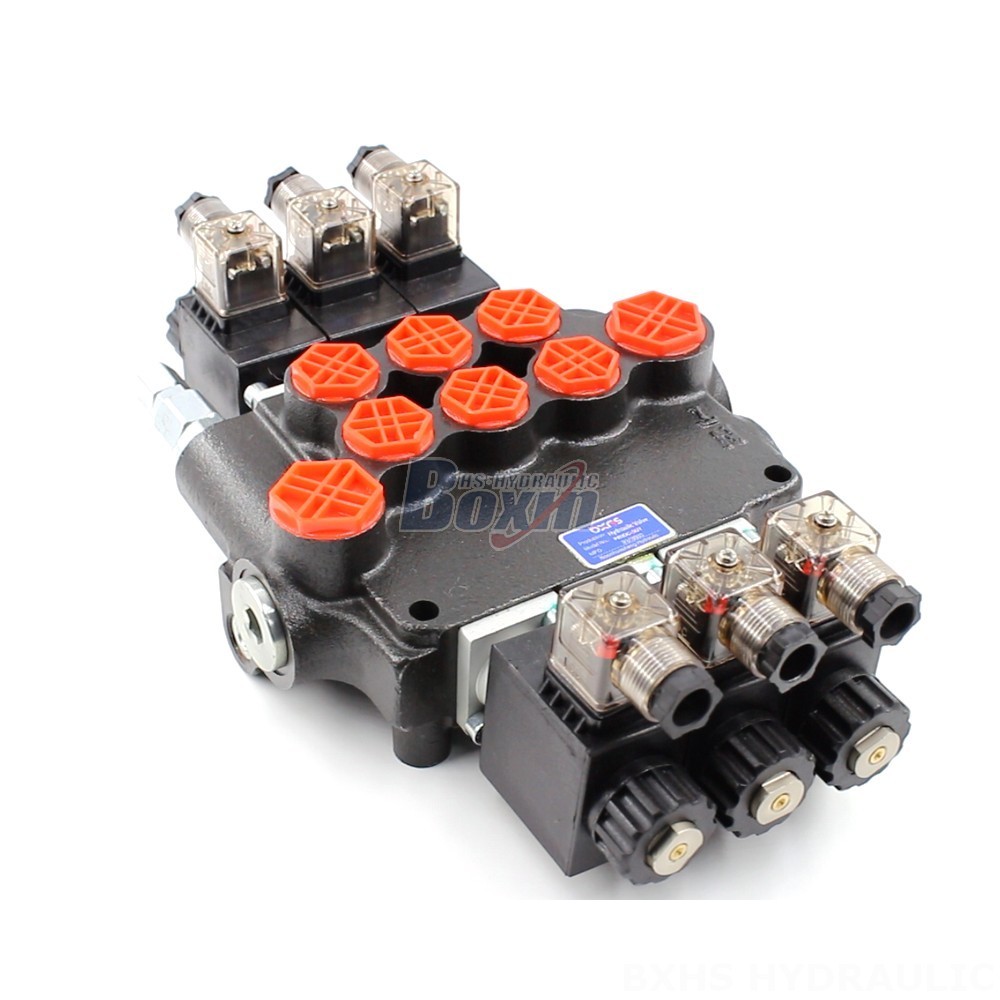

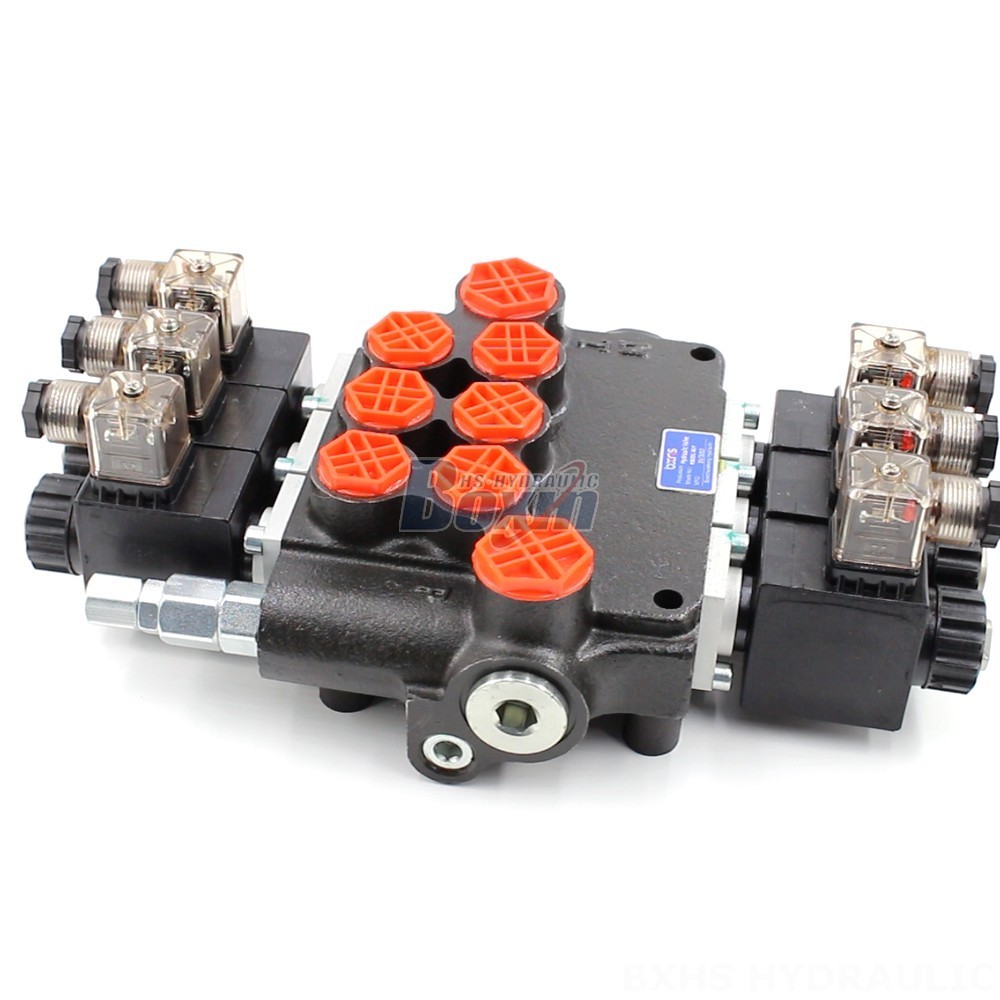

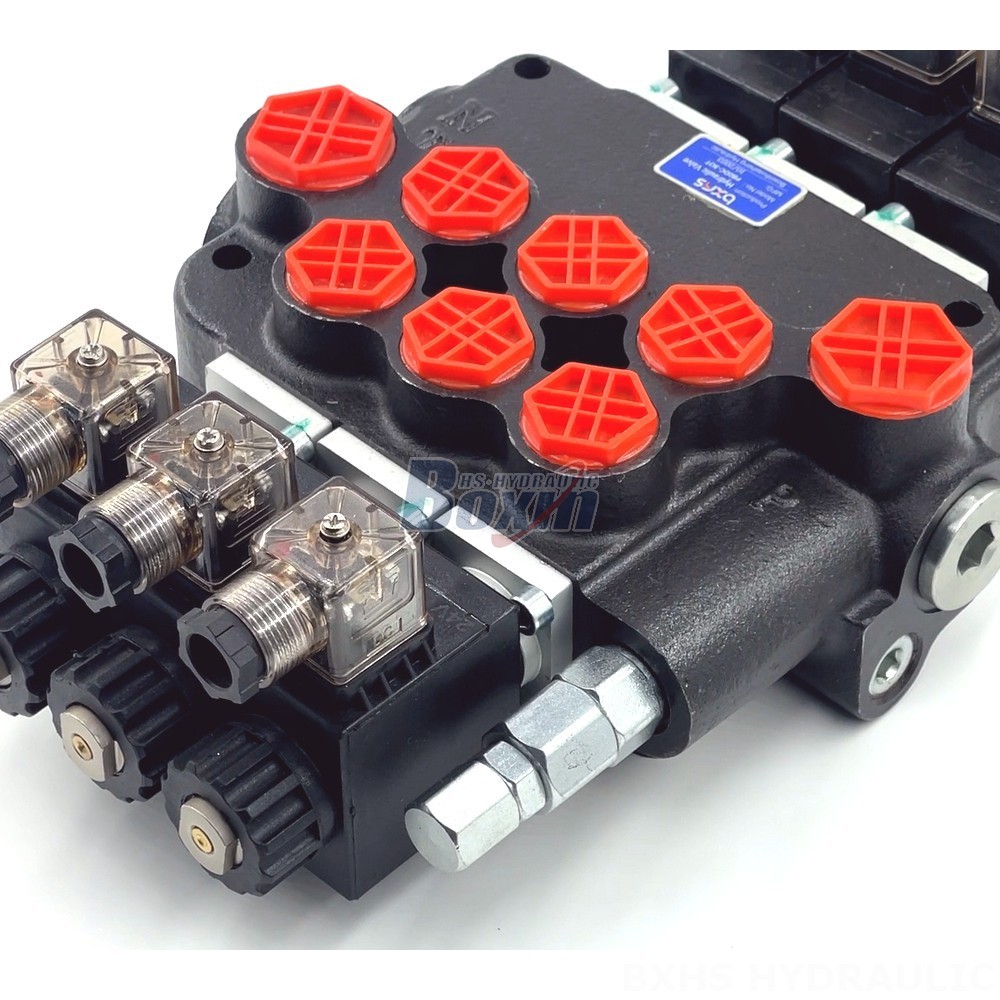

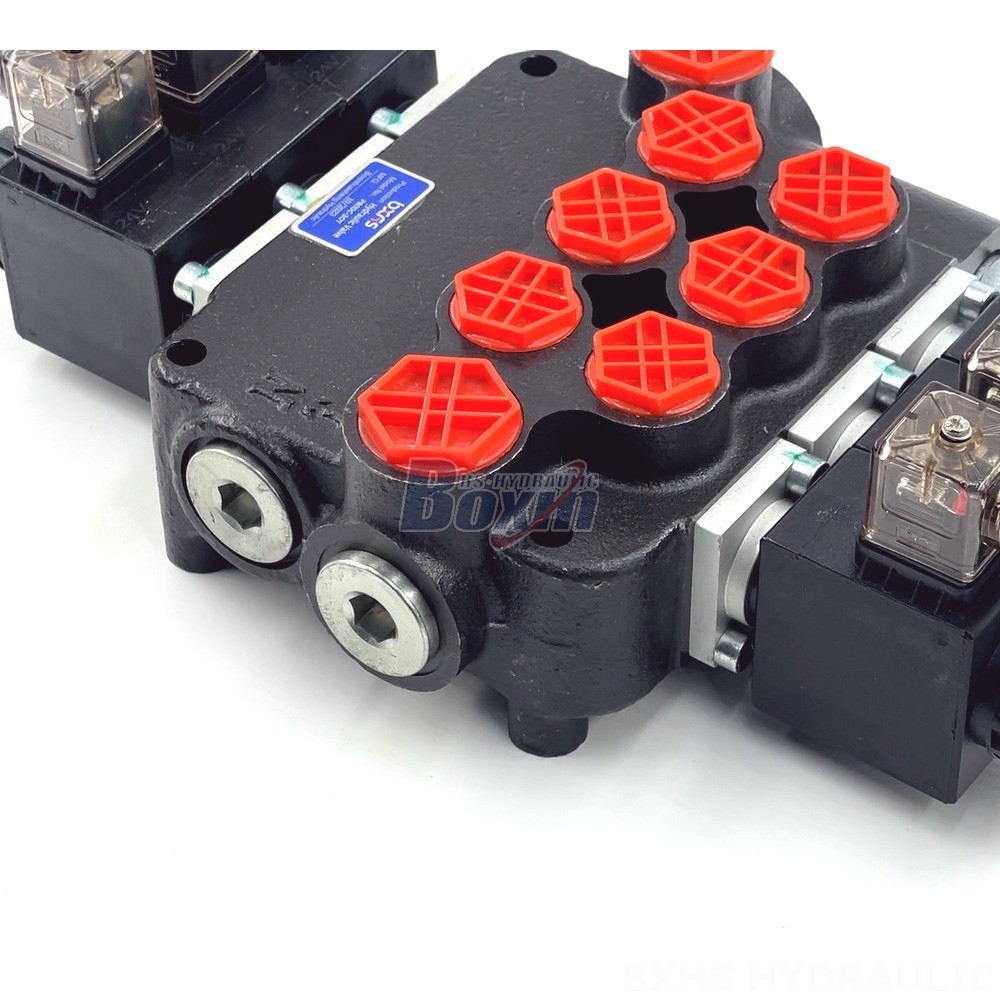

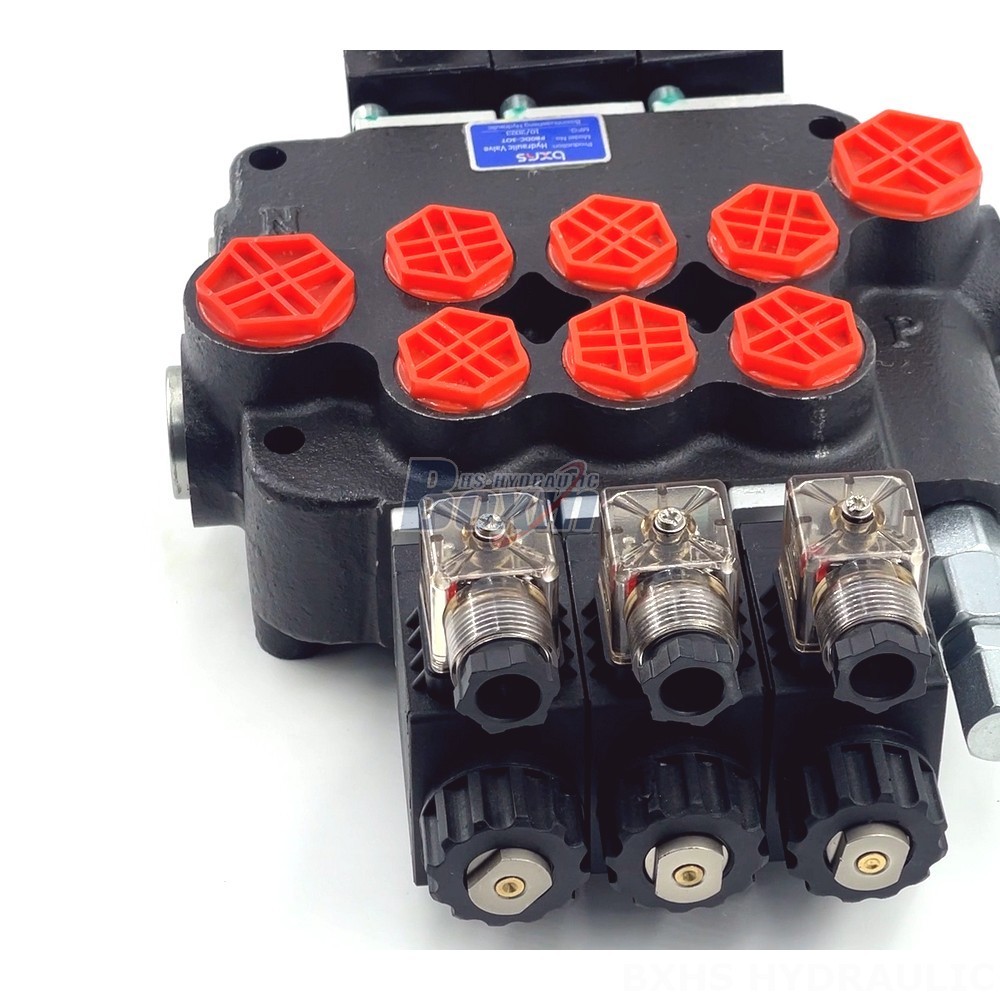

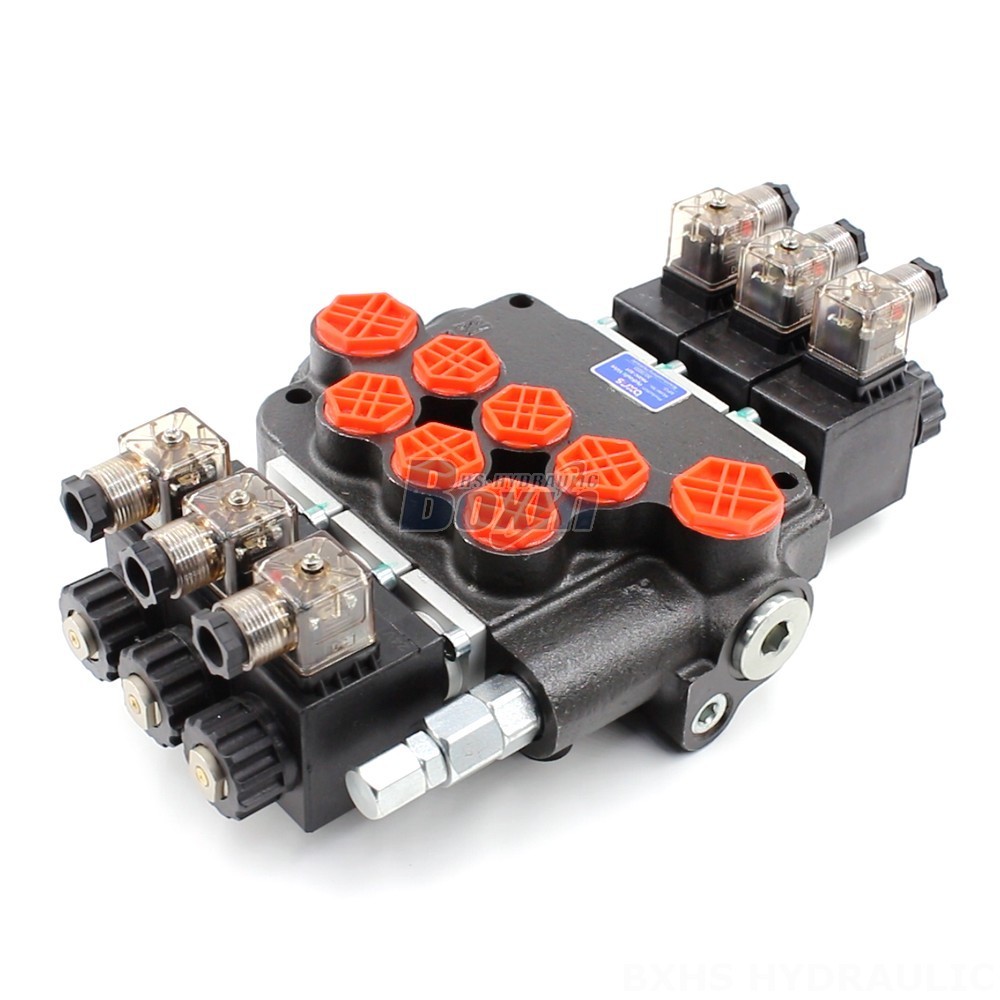

The P80 Series 3-Spool Monoblock Directional Control Valve is a high-performance hydraulic valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. This valve features a compact design, high flow rate, and durable construction, making it ideal for demanding applications.

P80系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 80 L/min (21.2 US gpm)
最大压力 315 bar (4600 psi)
进油口 G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
出油口 G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
接口尺寸 G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹

The P80 Series 3-Spool Monoblock Directional Control Valve is a powerful and versatile hydraulic component designed for demanding applications. It offers a high flow rate of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi), making it suitable for a wide range of heavy-duty machinery. The valve's compact monoblock design ensures robust performance and durability, while its solenoid control system provides precise and responsive operation. This valve is specifically designed for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. It is manufactured to meet the highest quality standards and is backed by a comprehensive warranty.
