High-quality and reliable 3 Spool Hydraulic Directional Valve with solenoid control, monoblock structure, 40 L/min rated flow, and 250 bar max pressure. Suitable for various applications including material handling, construction, agriculture, and industrial vehicles.
| P40-DKL系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |

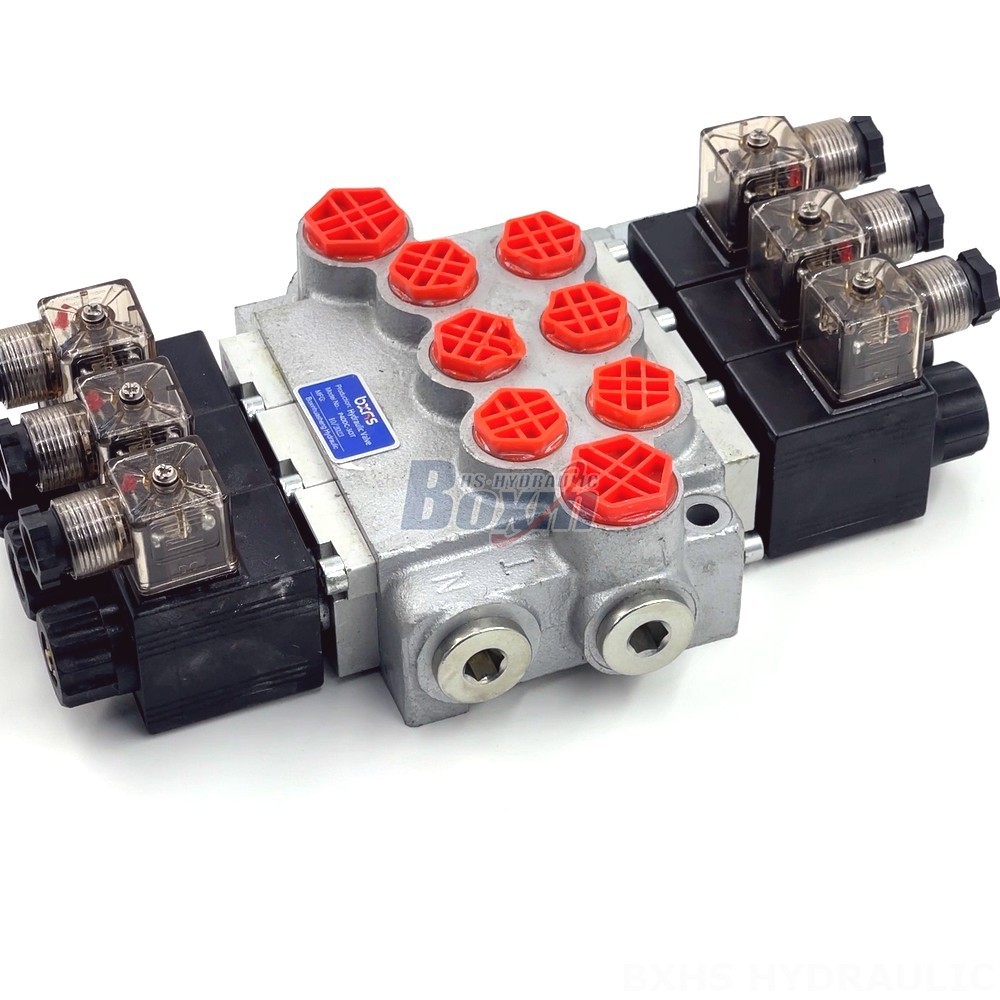

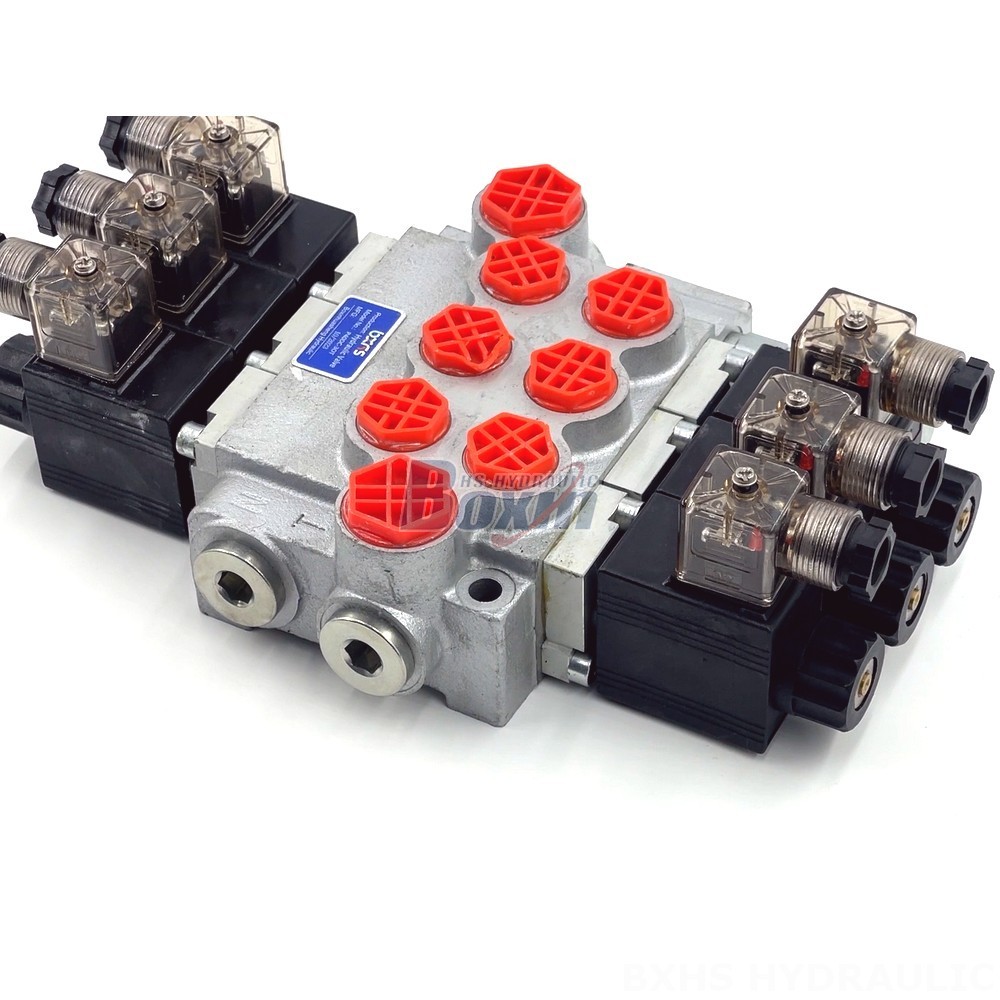

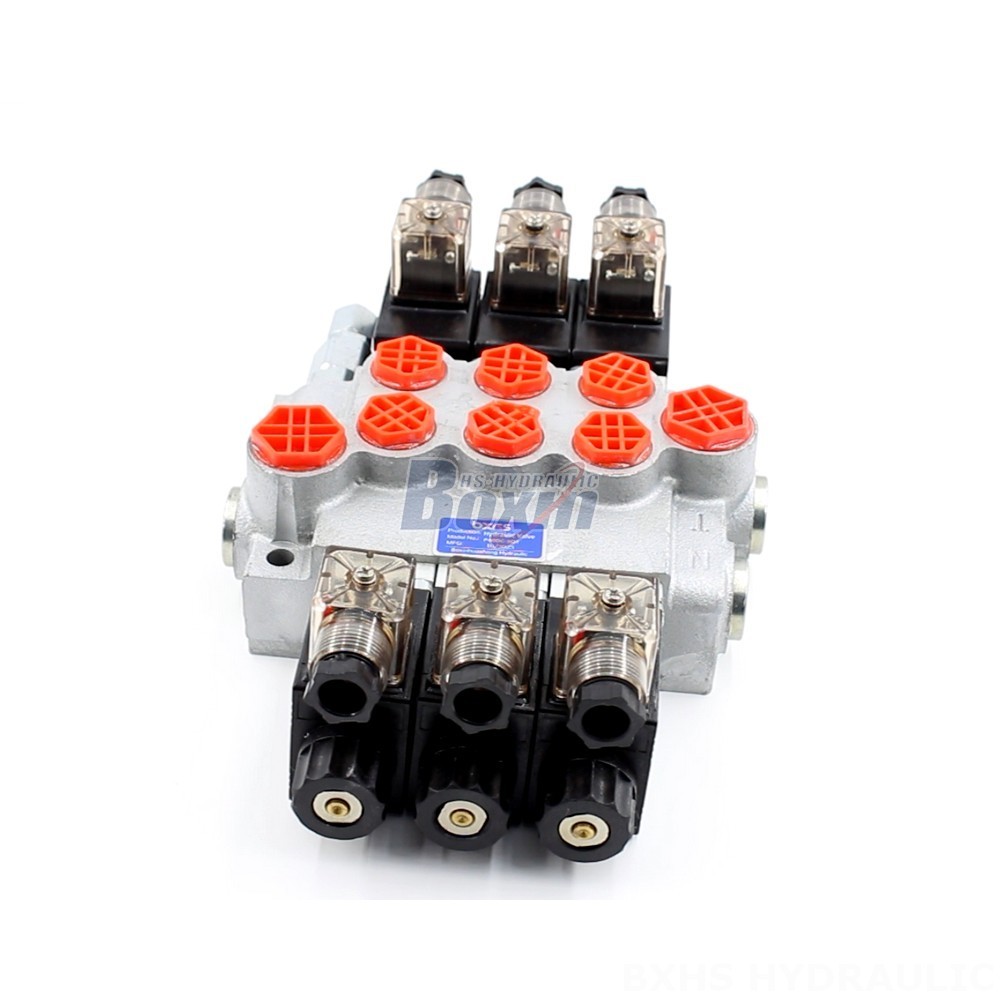

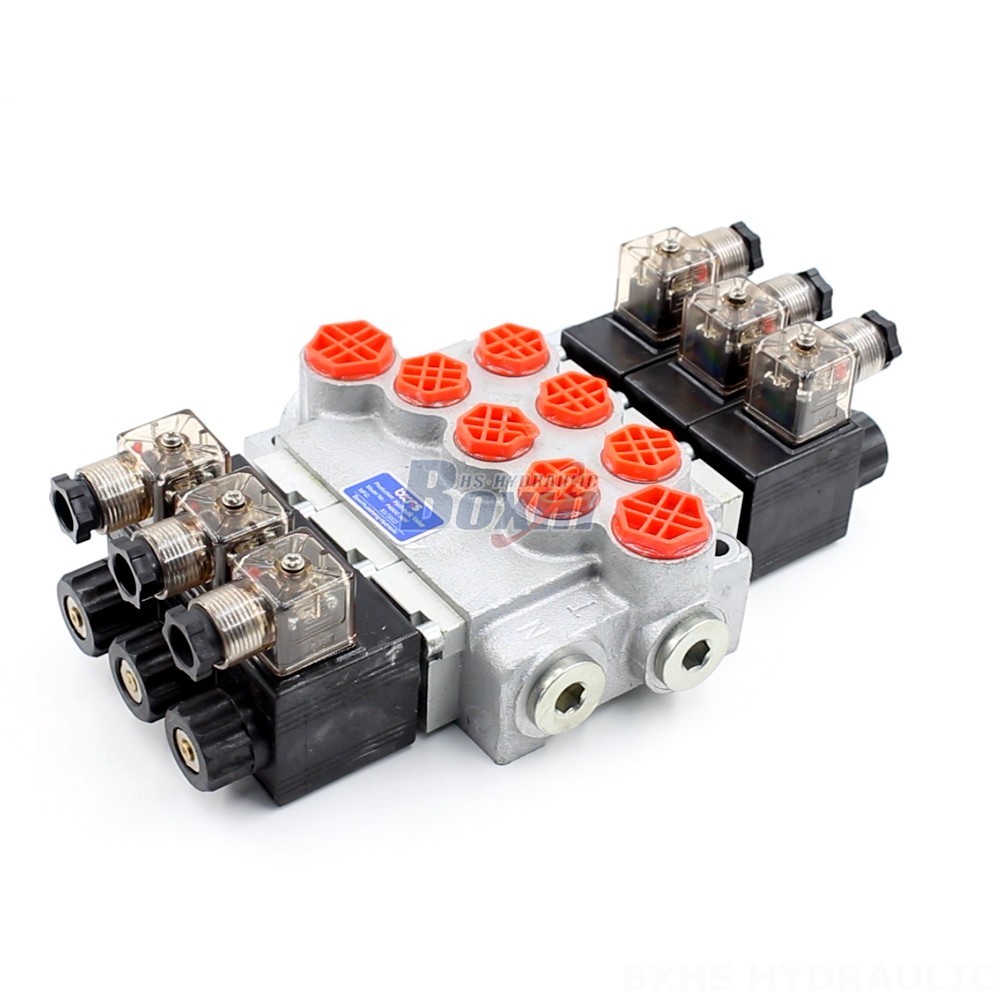

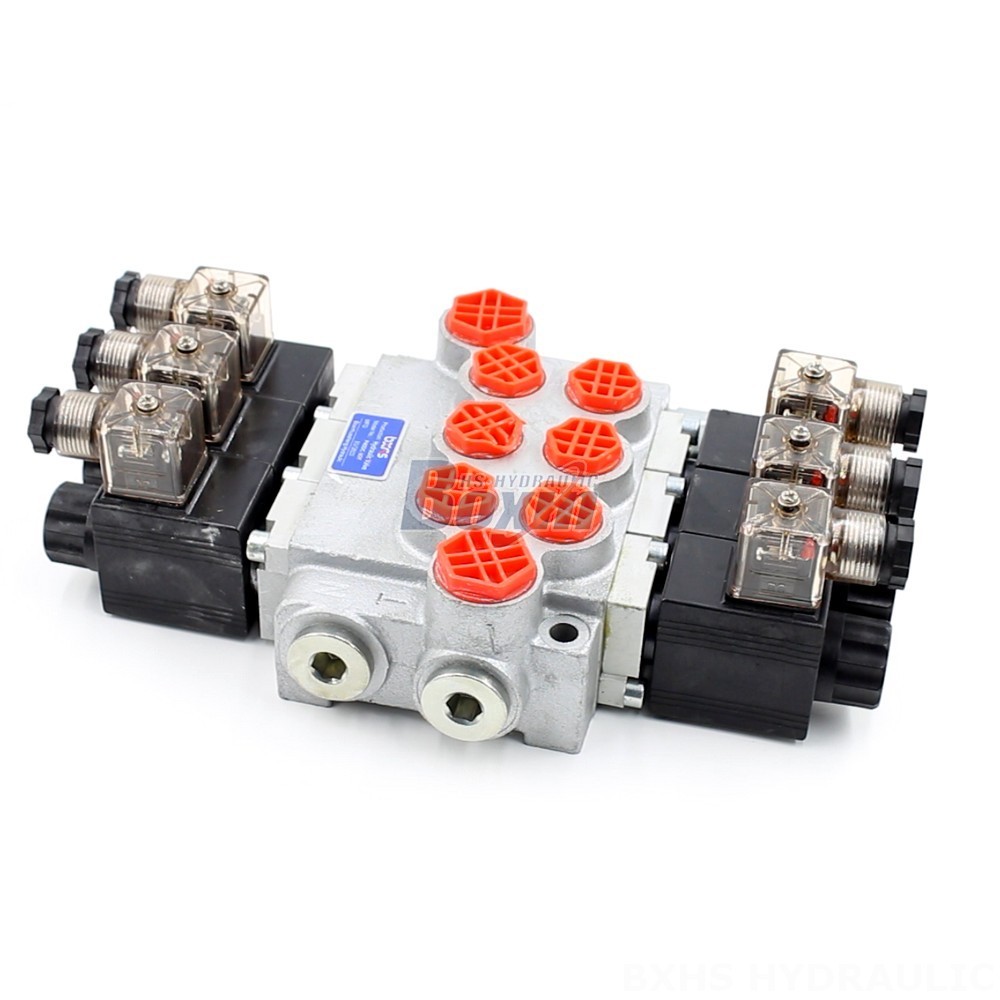

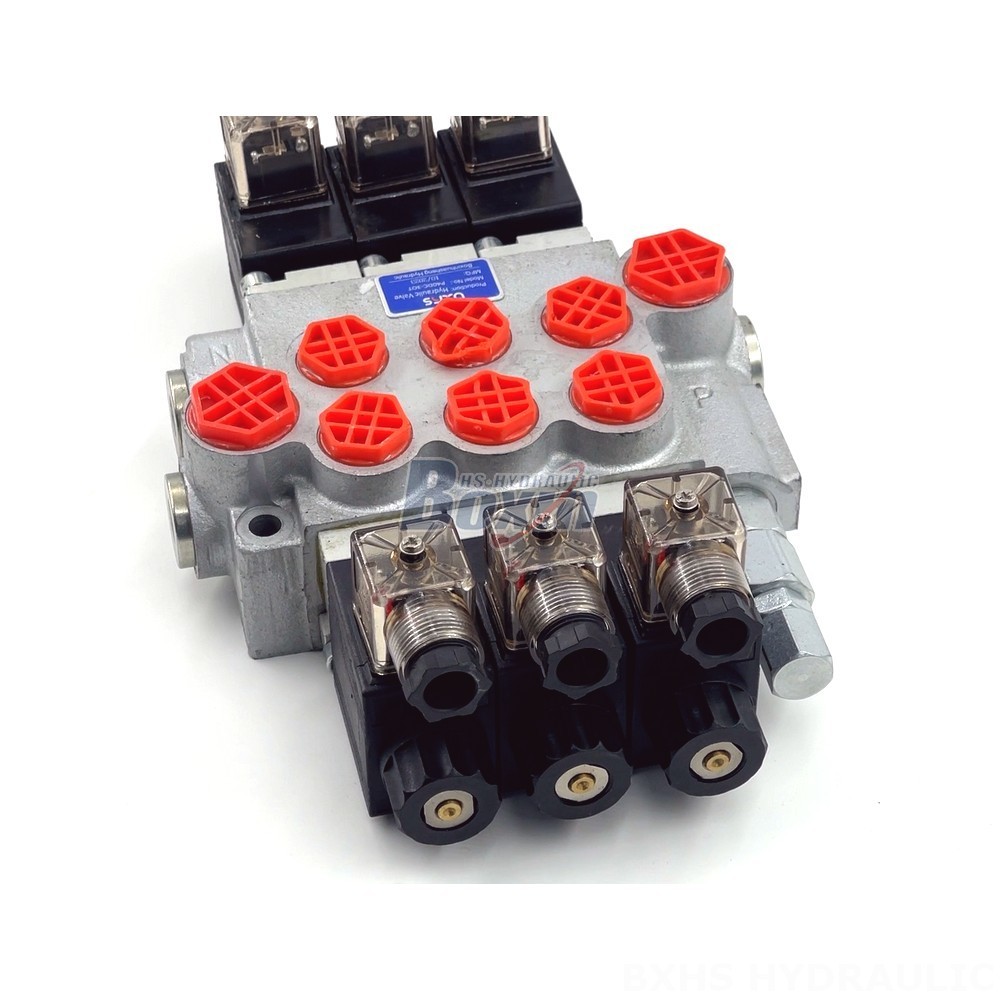

**3 Spool Hydraulic Directional Valve**
**Control Method:** Solenoid
**Section:** 3 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 40 L/min (10.5 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 3 Spool
**Series:** P40-DKL Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER
