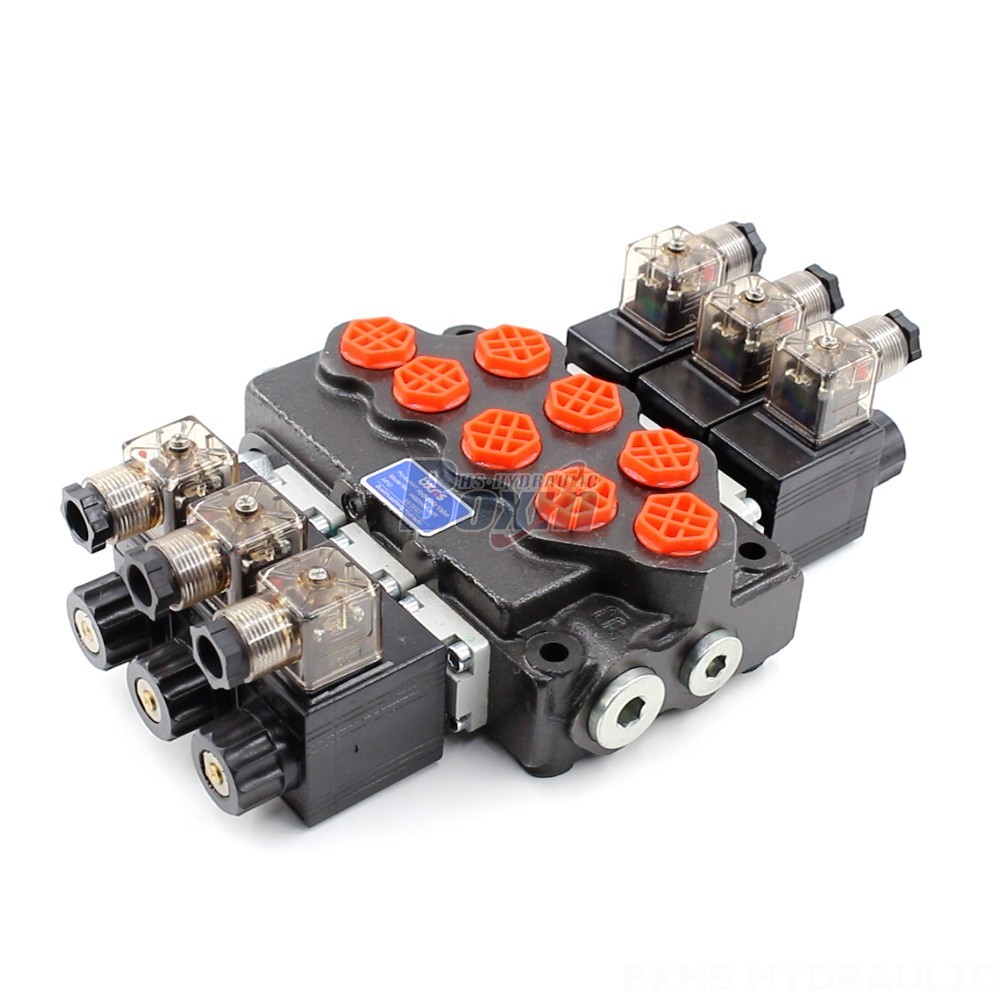

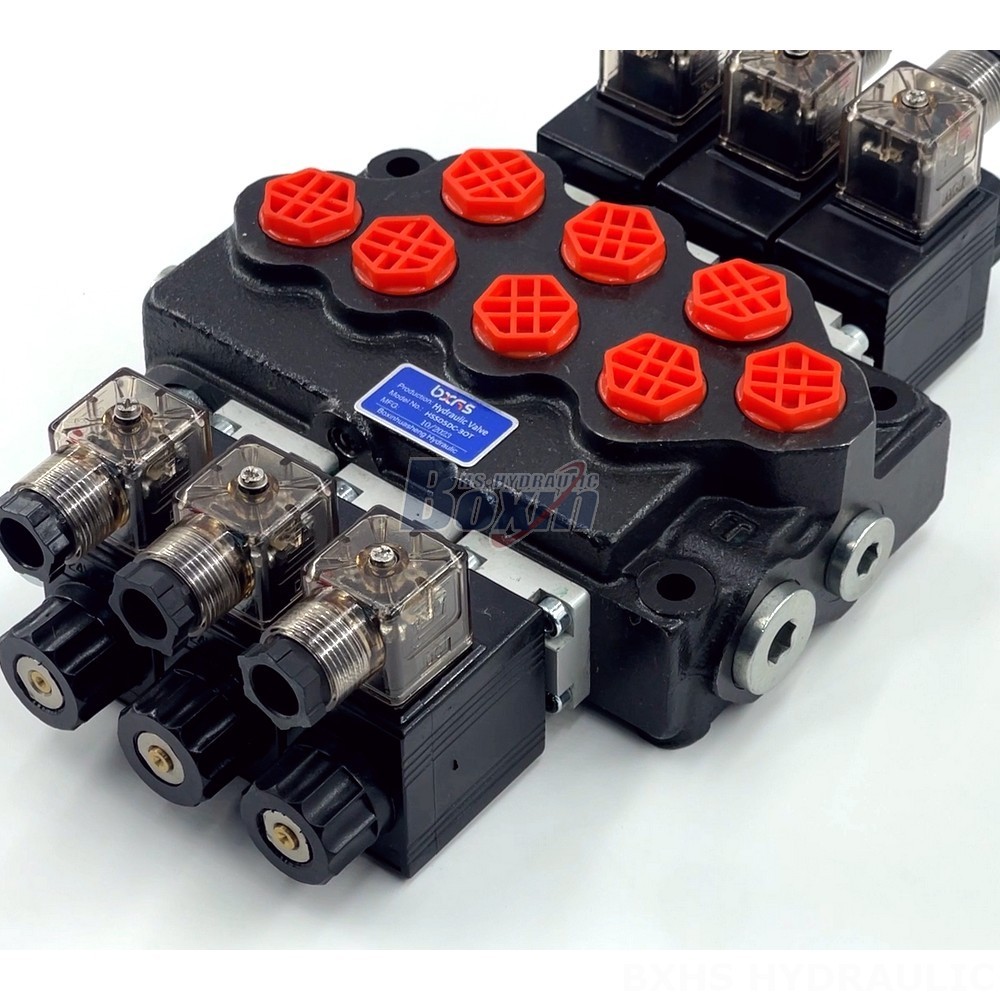

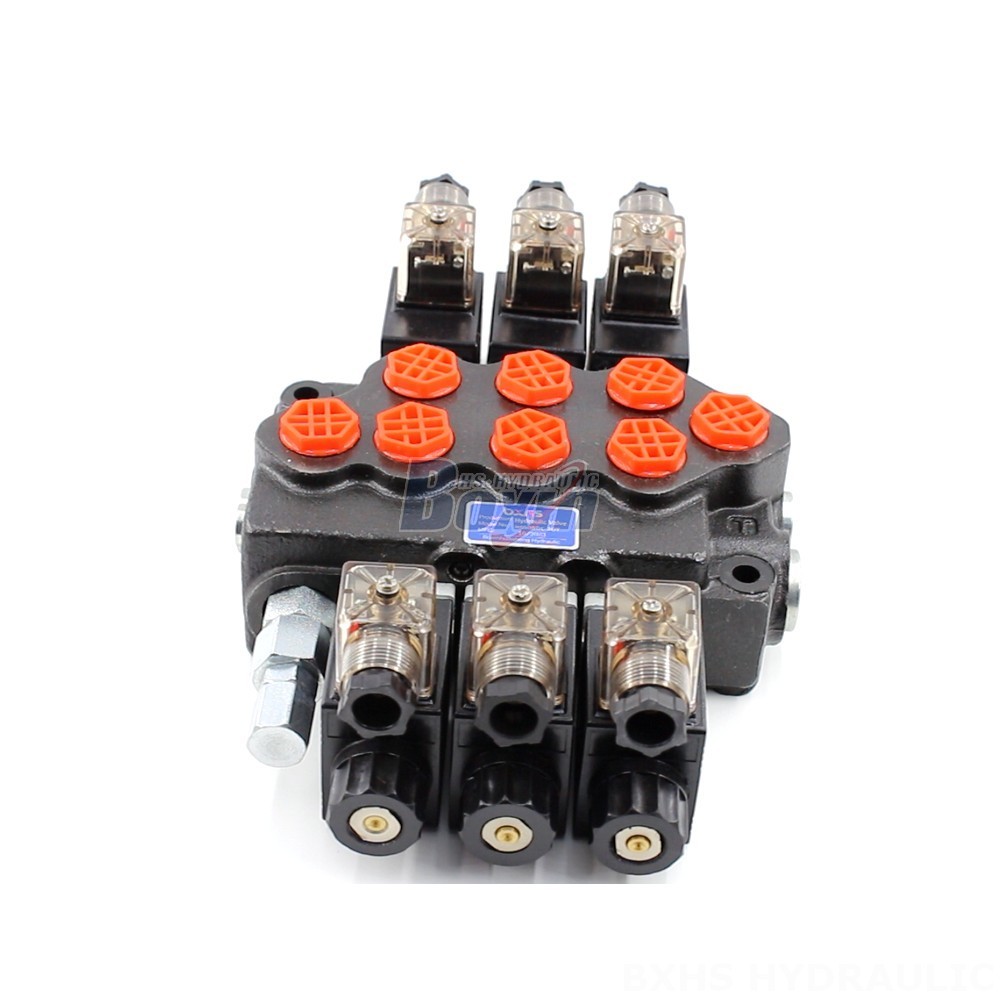

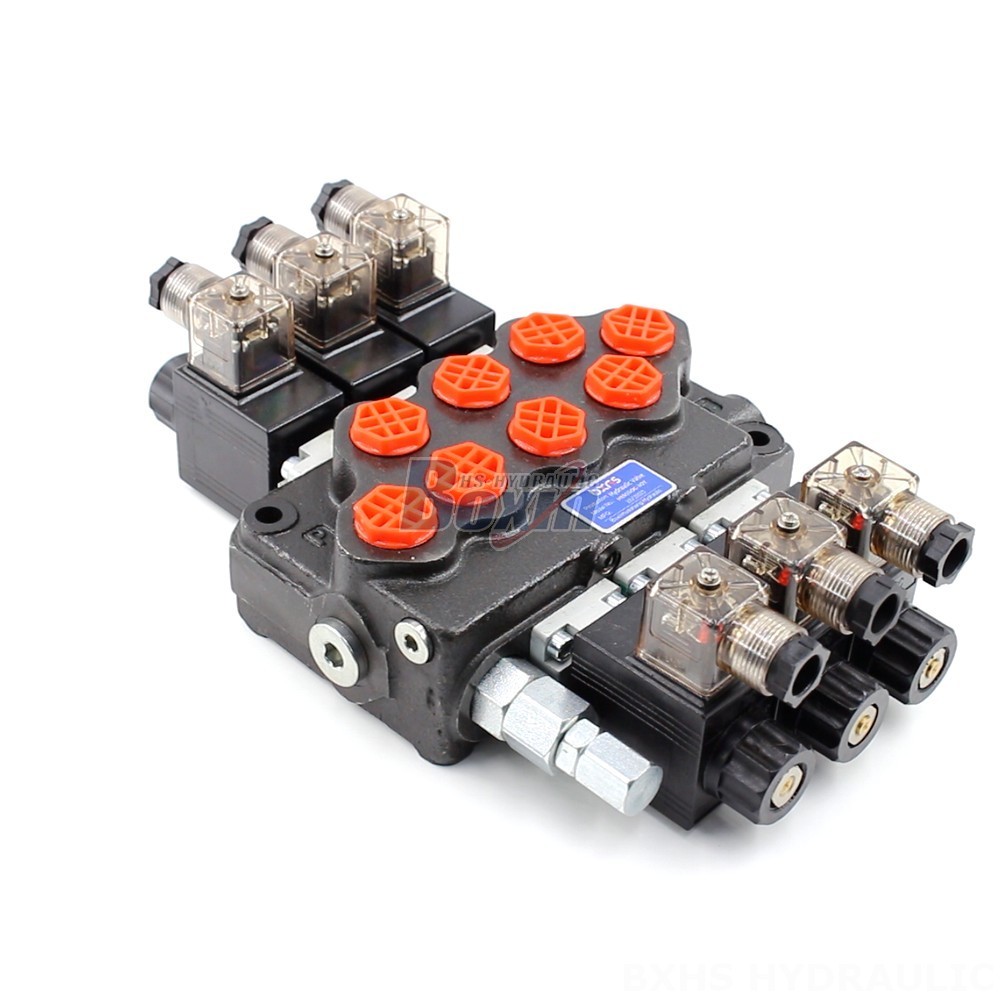

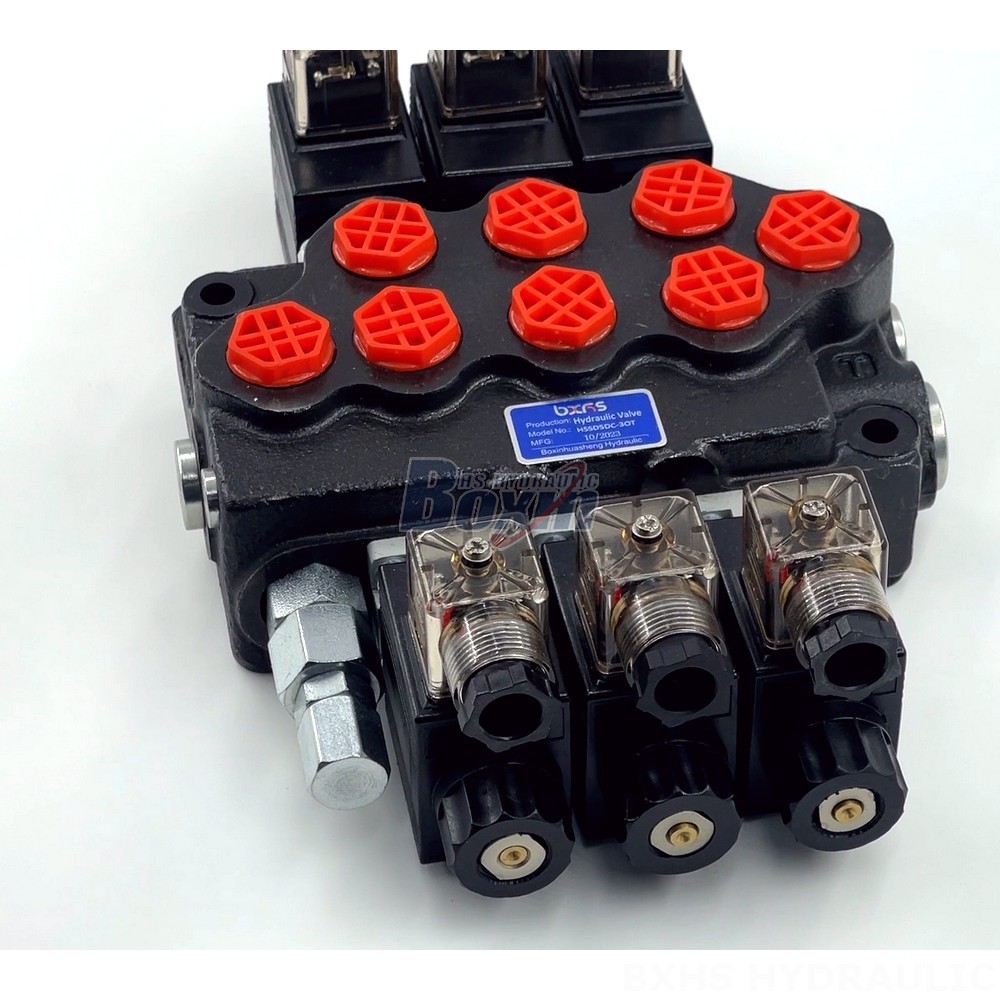

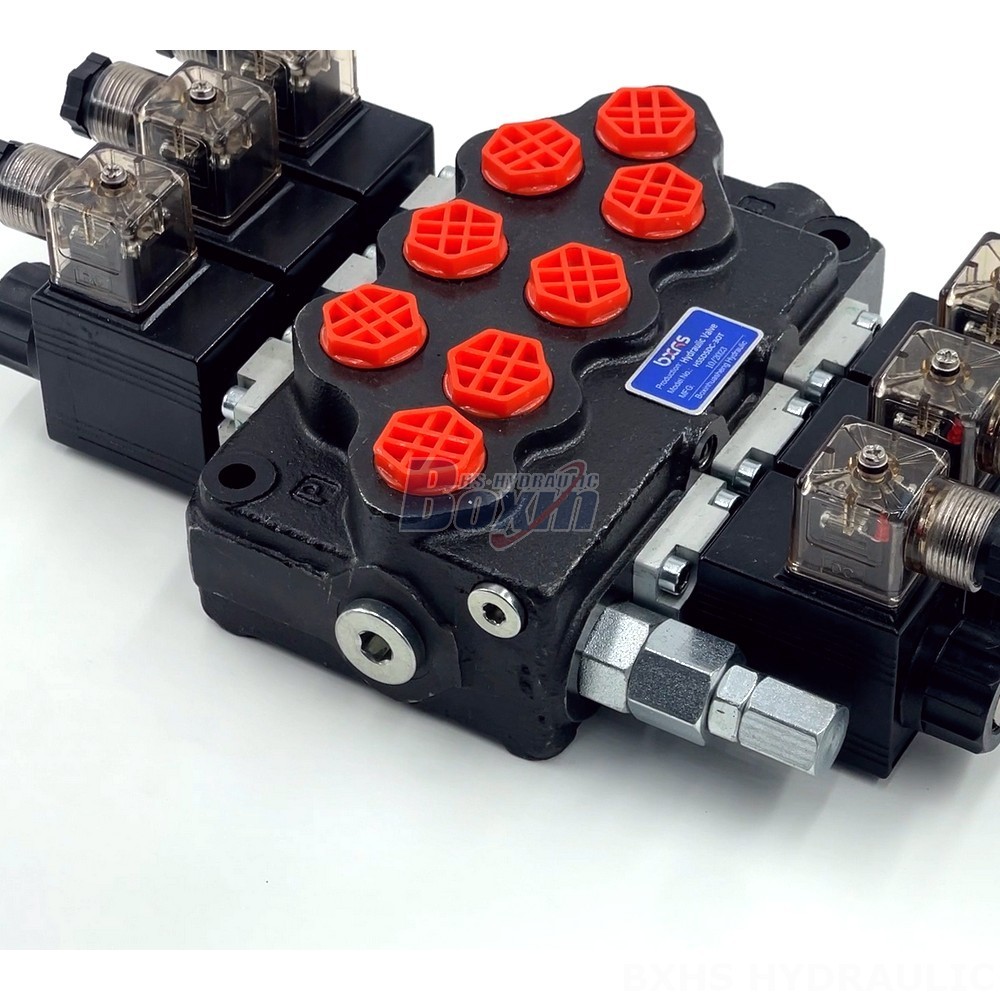

3-Position Monoblock Directional Valve | SD5 Model | Factory Direct & Customizable

控制方式:电磁

路数:3 联

额定流量:45 L/min (11.8 US gpm)

最大压力:315 bar (4600 psi)

进油口:G3/8接口

出油口:G3/8接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:SD5系列单块式方向阀

Packagingsize:30*21*13

Grossweight:9.00 kg

库存: 有货

描述

3-Position Monoblock Directional Valve | SD5 Model | Factory Direct & Customizable

3-Position Monoblock Directional Valve | SD5 Model | Factory Direct & Customizable drawing image

Our factory-direct and customizable SD5 Model 3-Position Monoblock Directional Valve is designed for various applications in material handling, construction, agriculture, and industrial vehicles. With a rated flow of 40 L/min, max pressure of 305 bar, and operating viscosity range of 15 - 75 mm²/s, it ensures optimal performance in demanding hydraulic systems.

SD5系列单块式方向阀参数
控制方式	手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制
路数	1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围	-40°C to +60°C (-40°F to +140°F)
结构类型	整体阀
联数	1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围	15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量	40 L/min (10.5 US gpm)
最大压力	305 bar (4400 psi)
进油口	G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头, G1-1/2接口
出油口	G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头
接口尺寸	G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头

**3-Position Monoblock Directional Valve | SD5 Model | Factory Direct & Customizable**

**Control Method:** Solenoid
**Section:** 3 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 40 L/min (10.5 US gpm)
**Max Pressure:** 305 bar (4400 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +60°C (-40°F to +140°F)
**Spool:** 3 Spool
**Series:** SD5 Series

**Applications:**

* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles

**Applicable Models:**

* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Telehandler
* Midi-Excavator
* Mini-Excavator
* Skid Steer Loader
