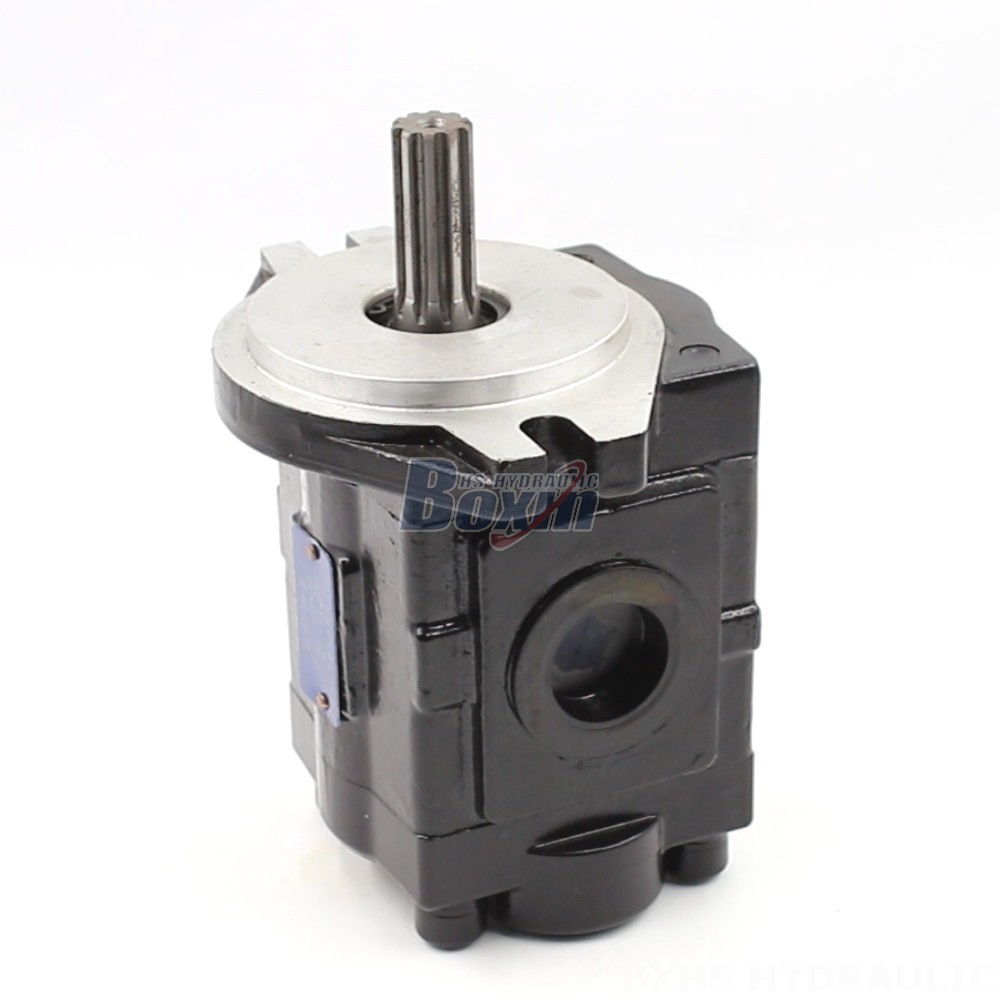

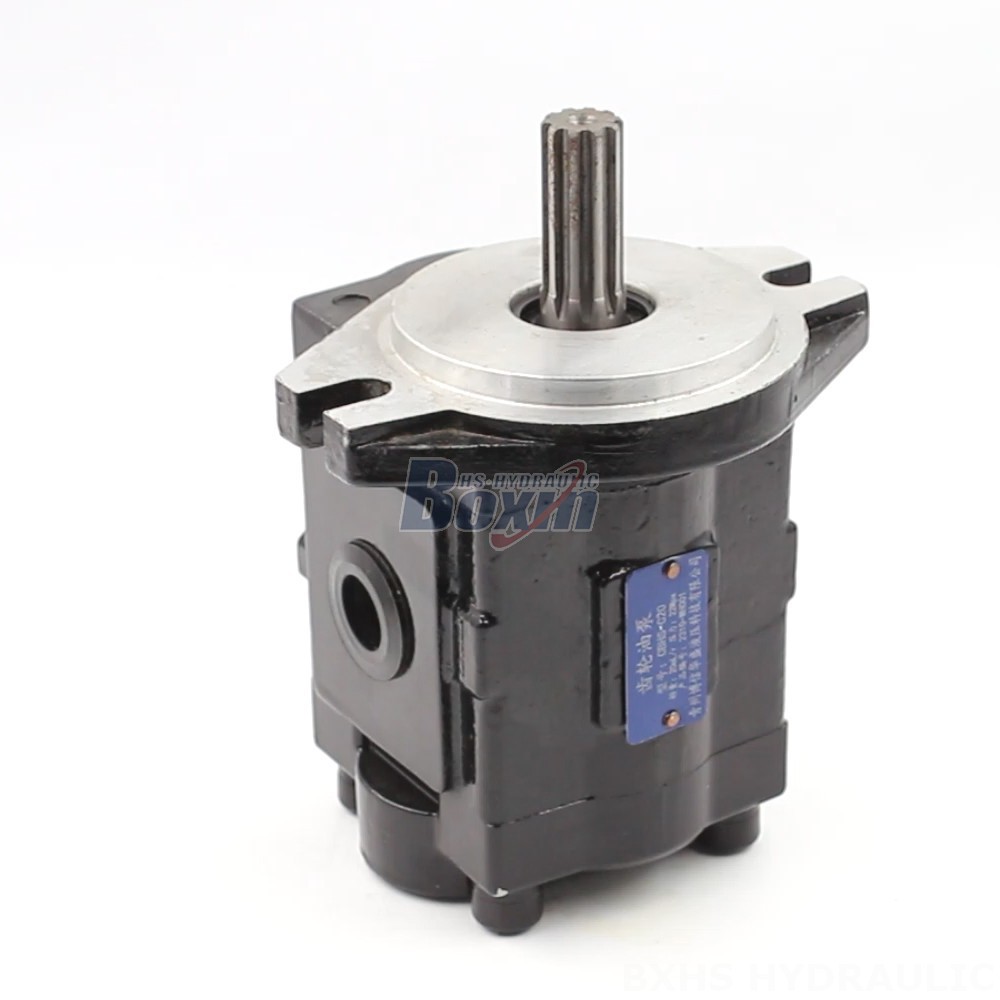

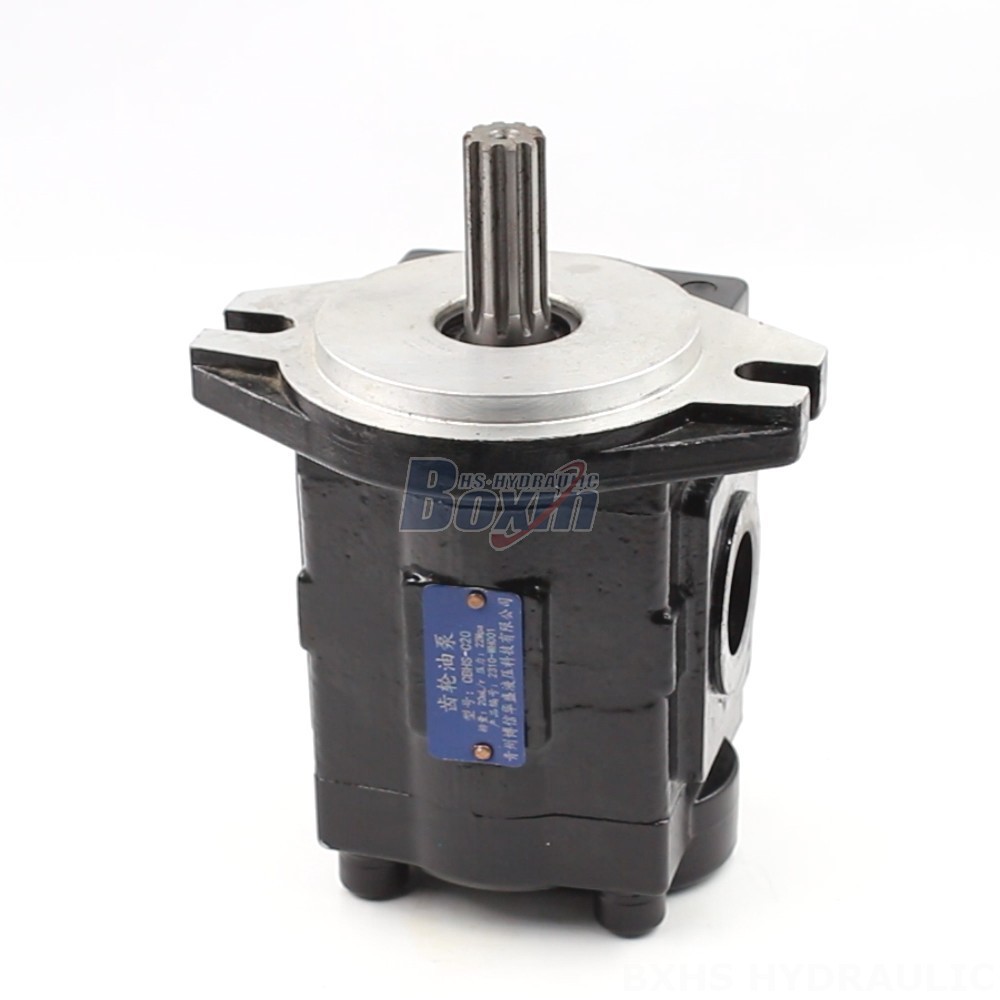

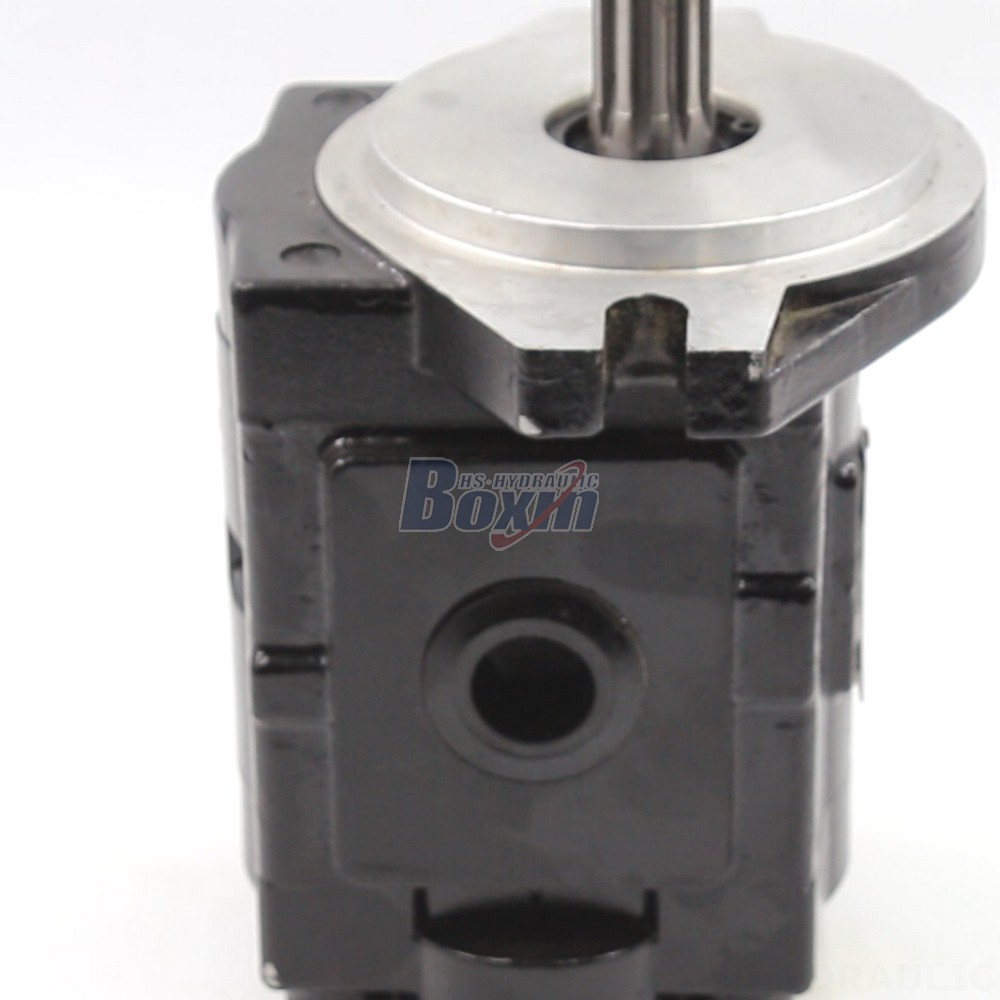

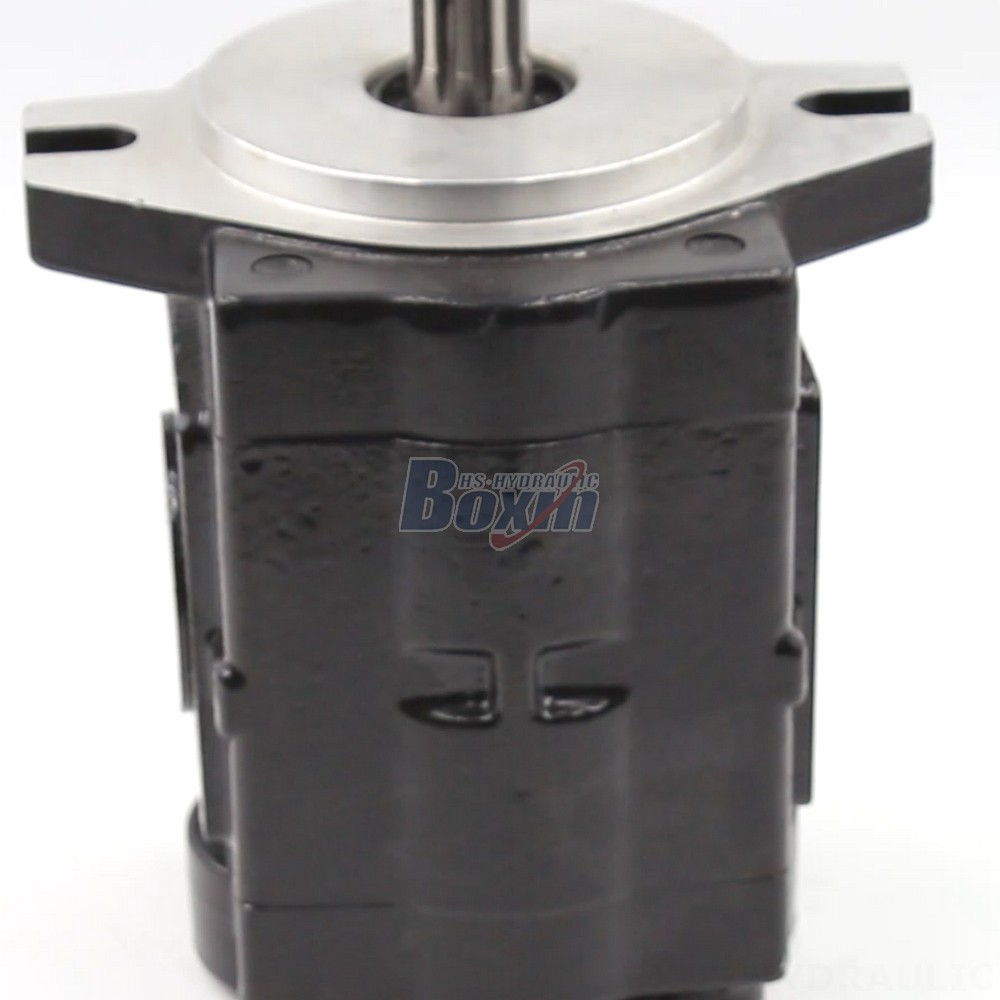

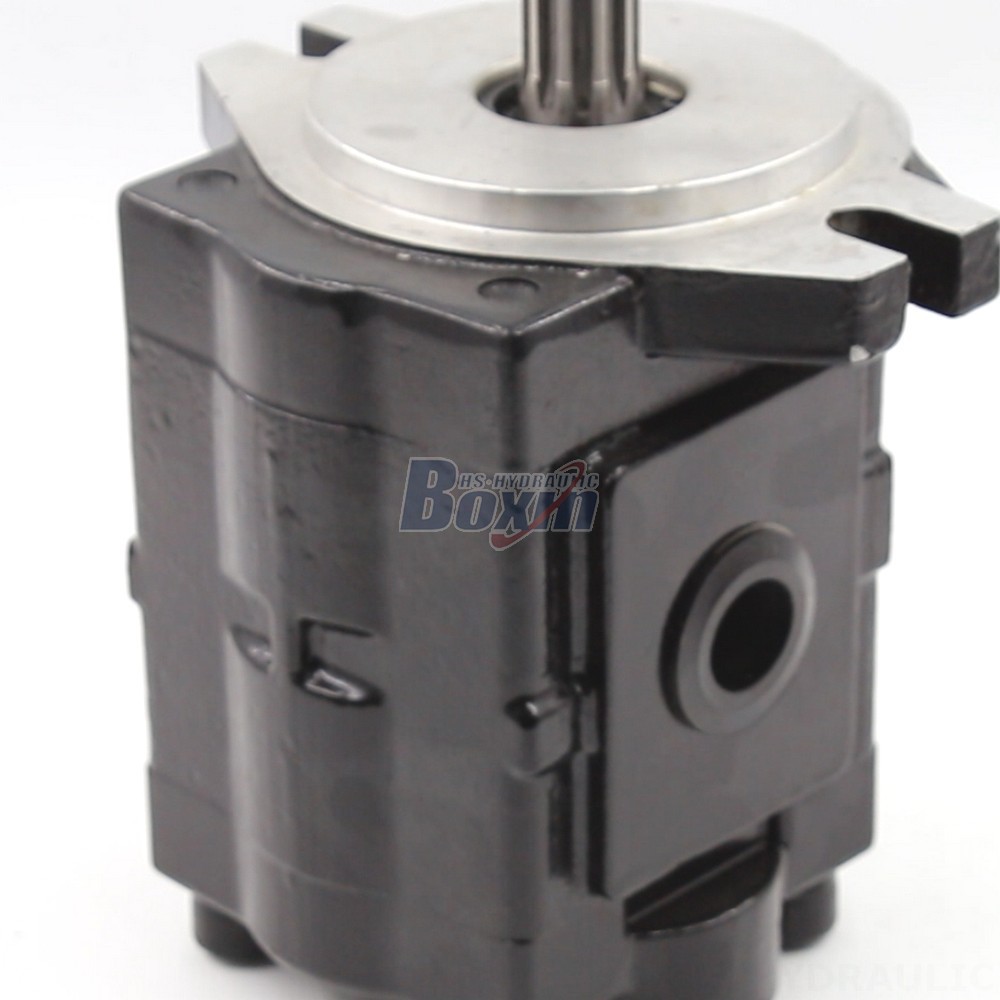

This 20 cc/rev Hydraulic Gear Pump is a high-performance, reliable, and durable pump designed for heavy-duty applications in construction, agriculture, and industrial vehicles. With a displacement of 100 cc/rev, rated pressure of 22 MPa (3190 psi), and max pressure of 25 MPa (3625 psi), this pump delivers exceptional power and efficiency.
| CBHS-C20系列 液压齿轮泵 参数 | |
|---|---|
| 排量 | 20 毫升/转 |
| 额定压力 | 20 MPa (2900 psi) |
| 最大压力 | 25 MPa (3625 psi) |
| 额定转速 | 2500 r/min |
| 最大转速 | 3000 r/min |
| 旋转方向 | 双向 |
| 材质 | 铸铁 |
| 架构 | 外啮合齿轮泵 |
| 法兰盘类型 | ISO-4 安装孔 |
| 轴伸形式 | H:矩形花键 |
This 20 cc/rev Hydraulic Gear Pump is a robust and reliable solution for a wide range of applications in the construction, agriculture, and industrial vehicle industries. Featuring a displacement of 100 cc/rev, rated pressure of 22 MPa (3190 psi), and maximum pressure of 25 MPa (3625 psi), this pump provides exceptional power and efficiency. Its bidirectional rotation and external gear pump design ensure smooth and consistent performance. Constructed with cast iron for superior durability, the pump is designed for long-term, heavy-duty operation. Equipped with ISO-4 mounting holes and a rectangle spline shaft, the pump offers easy integration into various systems. It is particularly well-suited for use in forklifts, telehandlers, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, tractors, front-end loaders, harvesters, and balers. Choose this high-performance hydraulic gear pump for unparalleled power, reliability, and durability in your demanding applications.
