Two Output Hydraulic Levers 2-Spool Hydraulic Valve | P80 Model | Factory Direct & Customizable

控制方式:电磁

路数:2 联

额定流量:80 L/min (21.2 US gpm)

最大压力:200 bar (2900 psi)

进油口:G3/4接口

出油口:G3/4接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P80系列 单块式方向阀

Packagingsize:37*18*11

Grossweight:9.50 kg

库存: 有货

941 次查看了此产品

Two Output Hydraulic Levers 2-Spool Hydraulic Valve | P80 Model | Factory Direct & Customizable

Two Output Hydraulic Levers 2-Spool Hydraulic Valve | P80 Model | Factory Direct & Customizable

Two Output Hydraulic Levers 2-Spool Hydraulic Valve | P80 Model | Factory Direct & Customizable drawing image

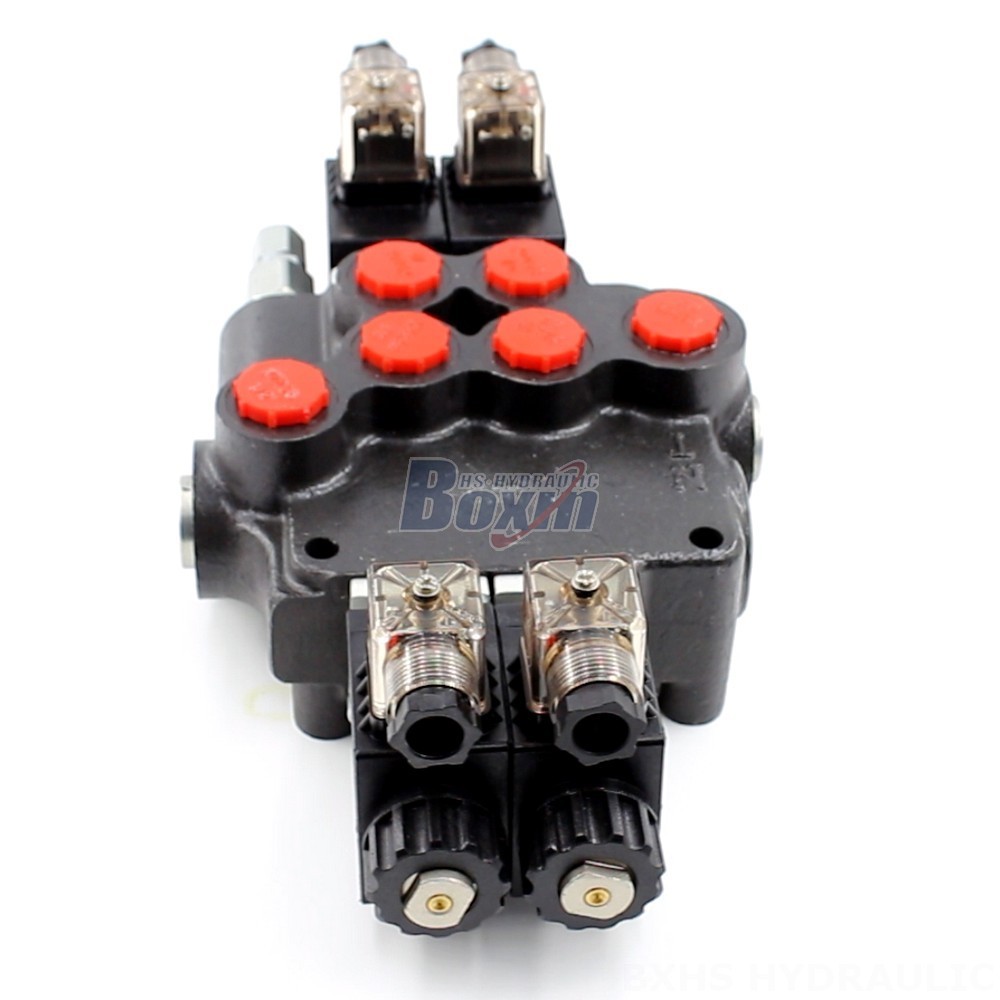

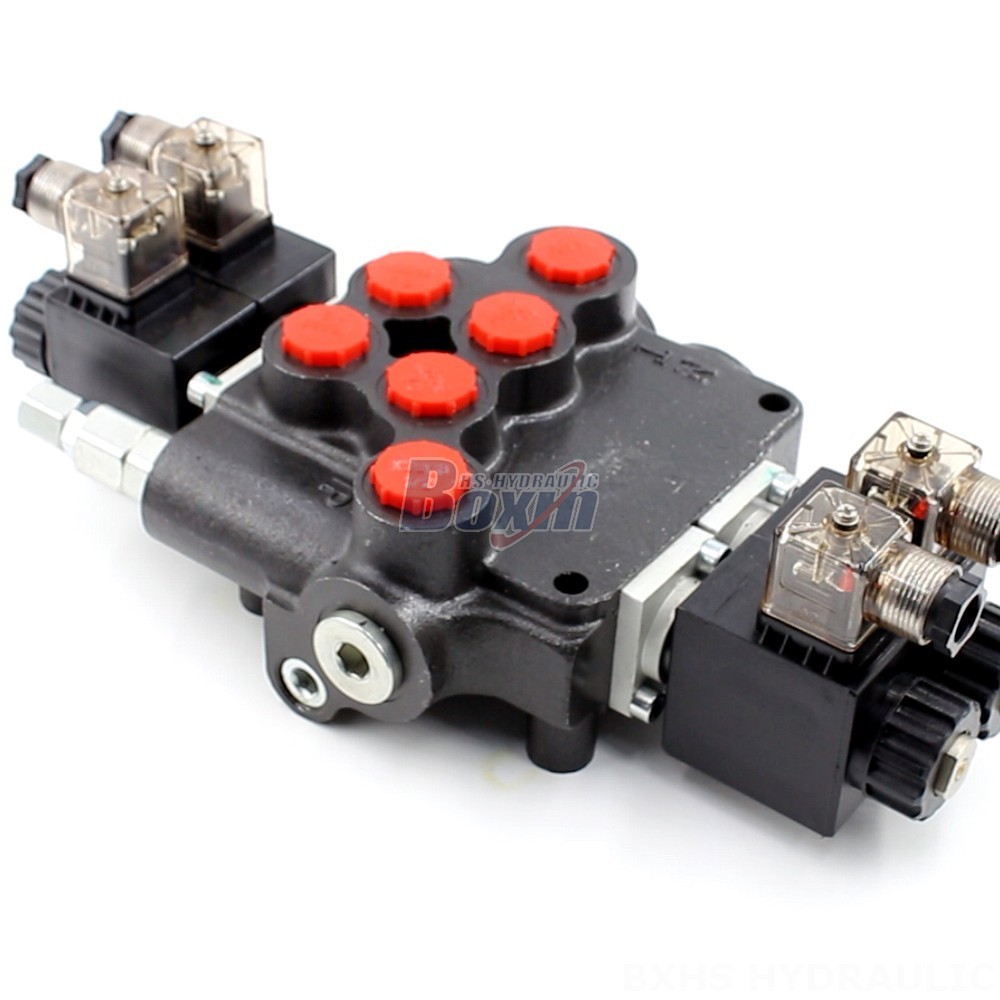

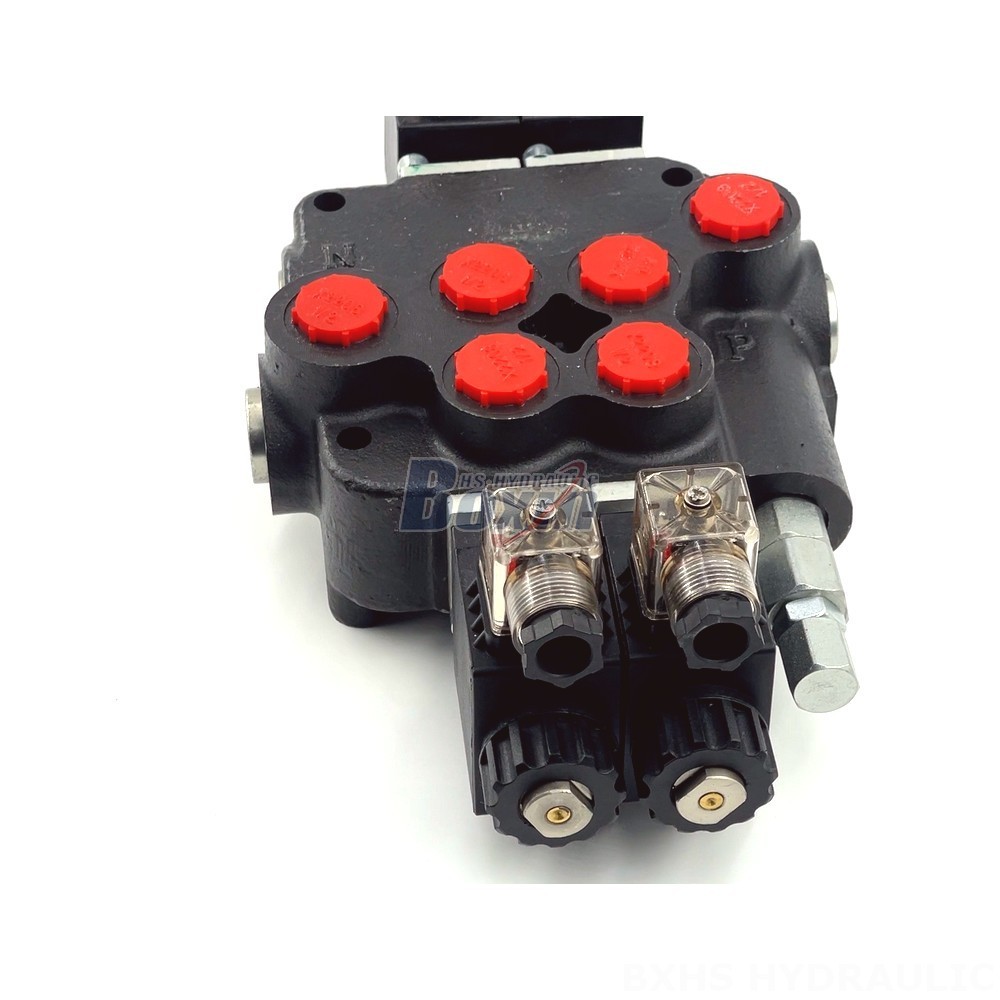

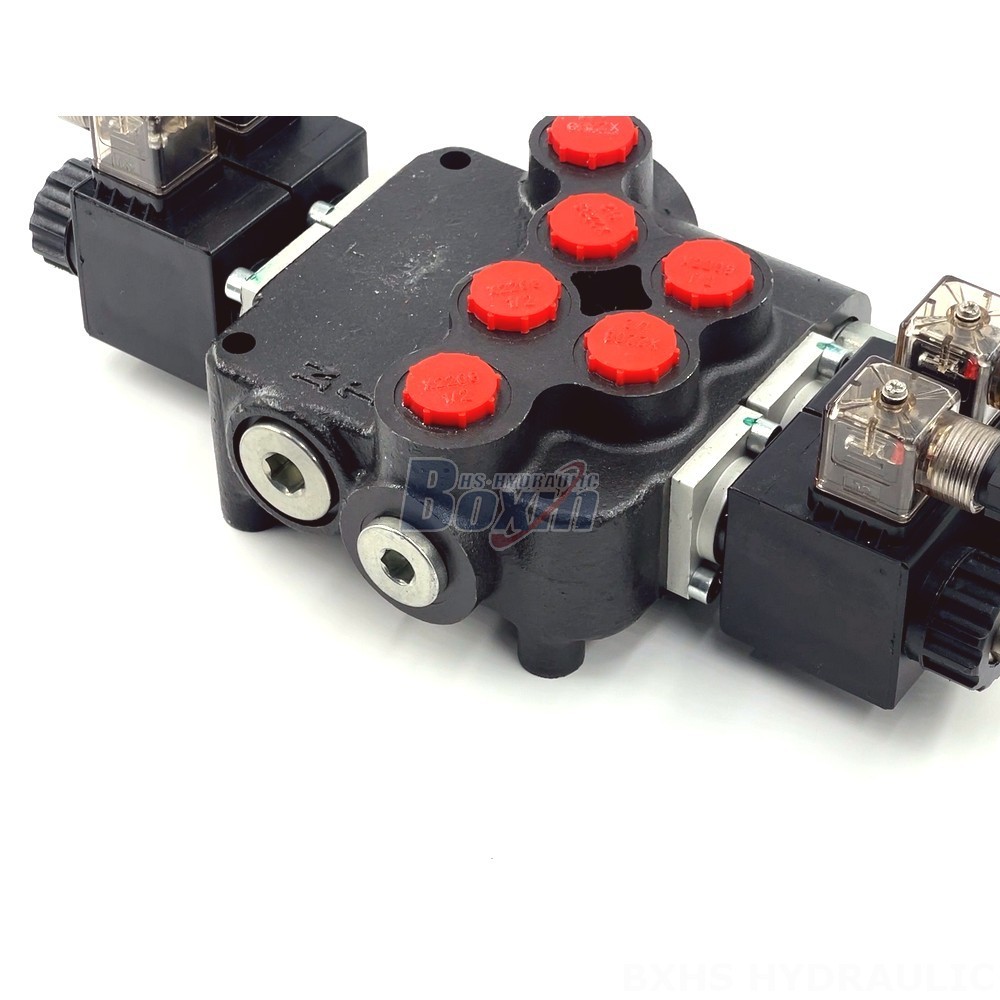

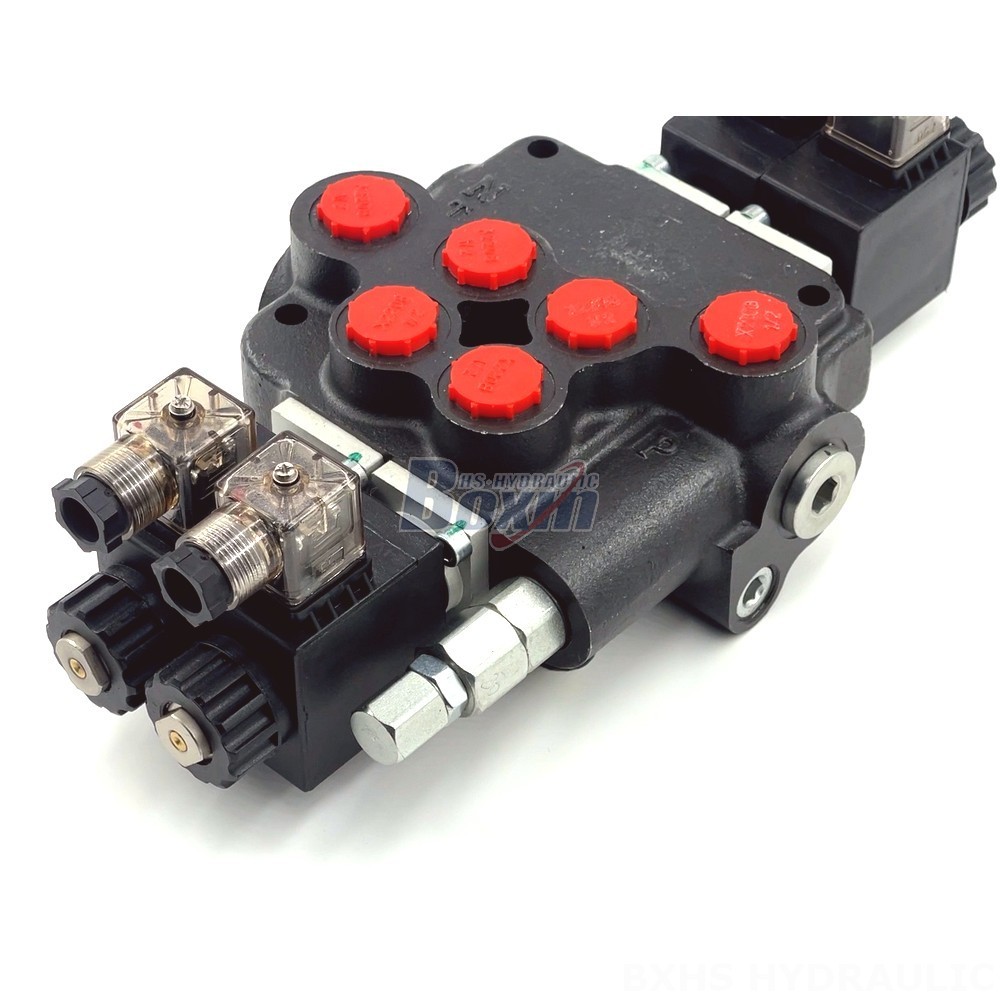

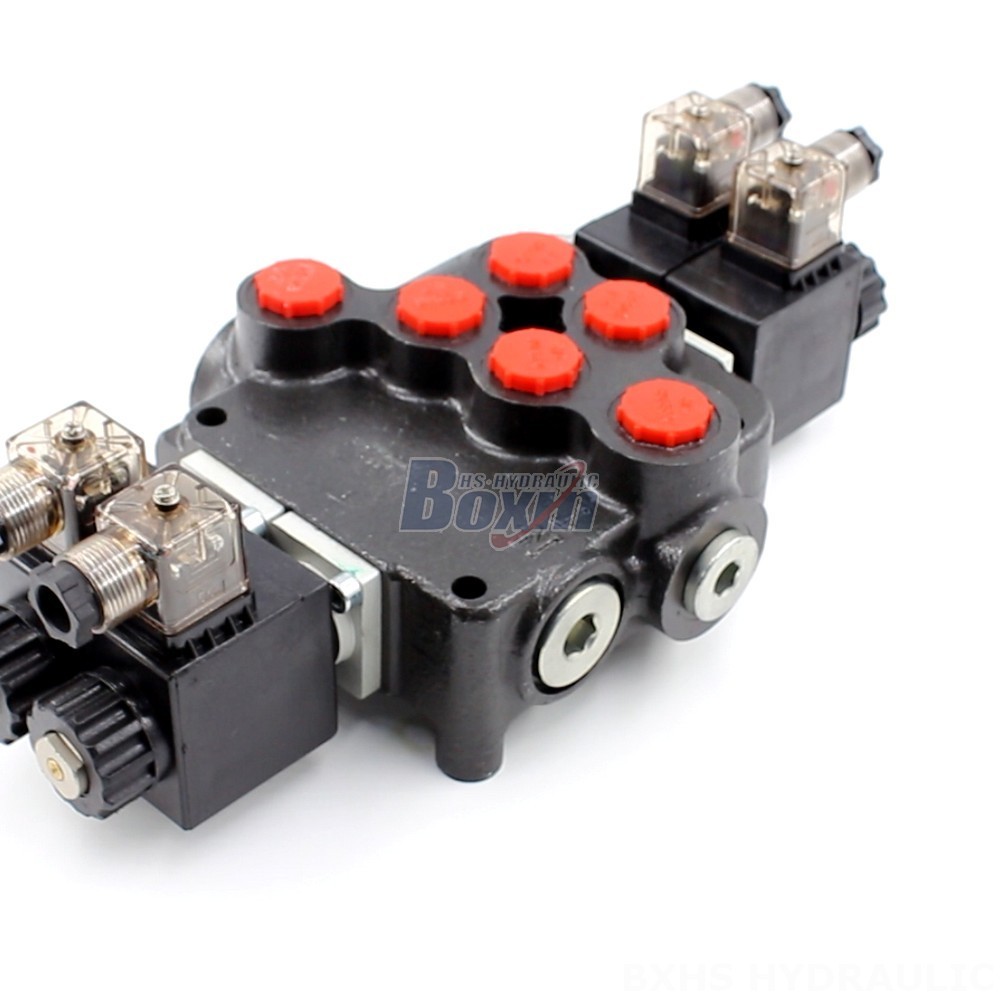

Our P80 model Two Output Hydraulic Levers is a 2-spool, monoblock hydraulic valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. It features a high flow rate and pressure capacity, making it suitable for demanding operations. The valve is available in a variety of configurations and can be customized to meet your specific requirements.

P80系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 80 L/min (21.2 US gpm)
最大压力 315 bar (4600 psi)
进油口 G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
出油口 G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
接口尺寸 G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹

The P80 model Two Output Hydraulic Levers is a powerful and versatile hydraulic valve, featuring a 2-spool design and a robust monoblock construction. This valve delivers a high flow rate of 80 L/min (21.2 US gpm) and can withstand pressures up to 250 bar (3600 psi), making it suitable for heavy-duty applications. It's designed for use in a range of vehicles and equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. The valve's solenoid control system offers precise and reliable operation. It's also built to withstand extreme temperatures, operating reliably in environments from -40°C to +80°C (-40°F to +176°F). Our P80 model is available directly from the factory and can be customized to meet your specific needs. Contact us today for more information about this powerful and reliable hydraulic valve.
