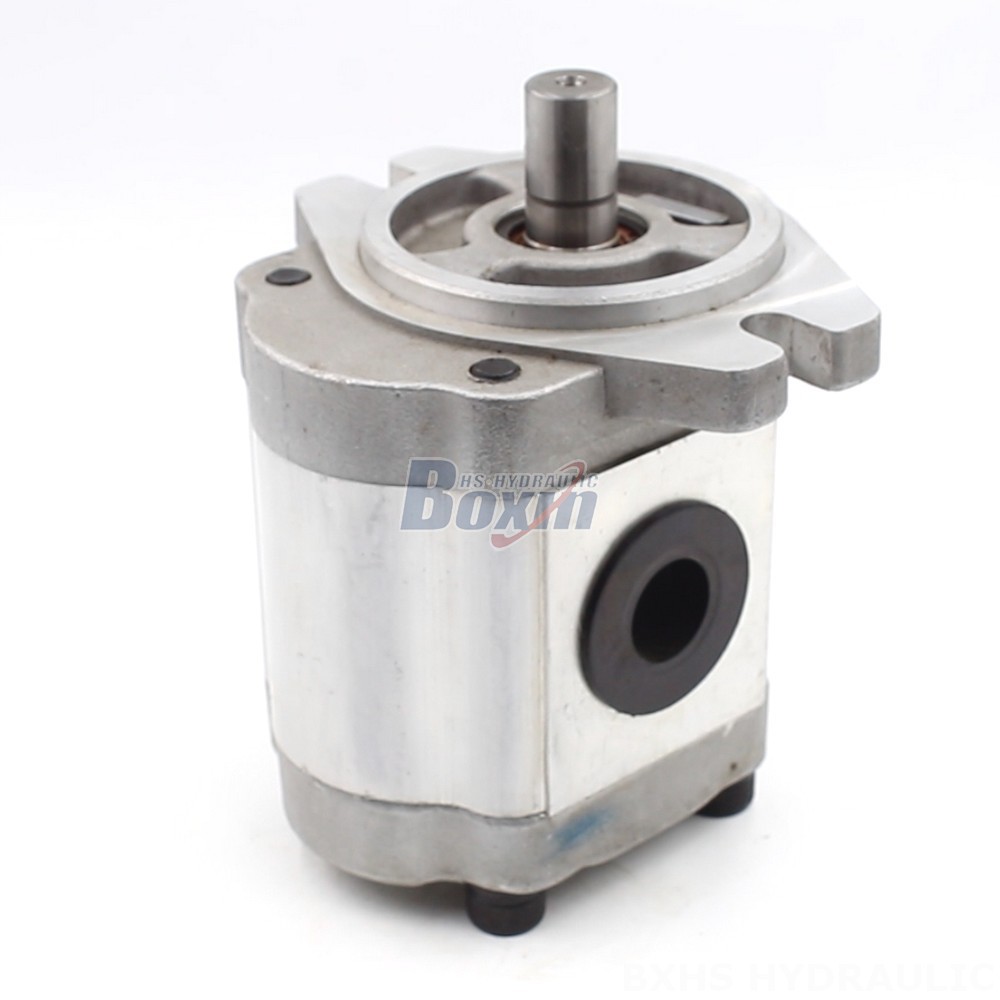

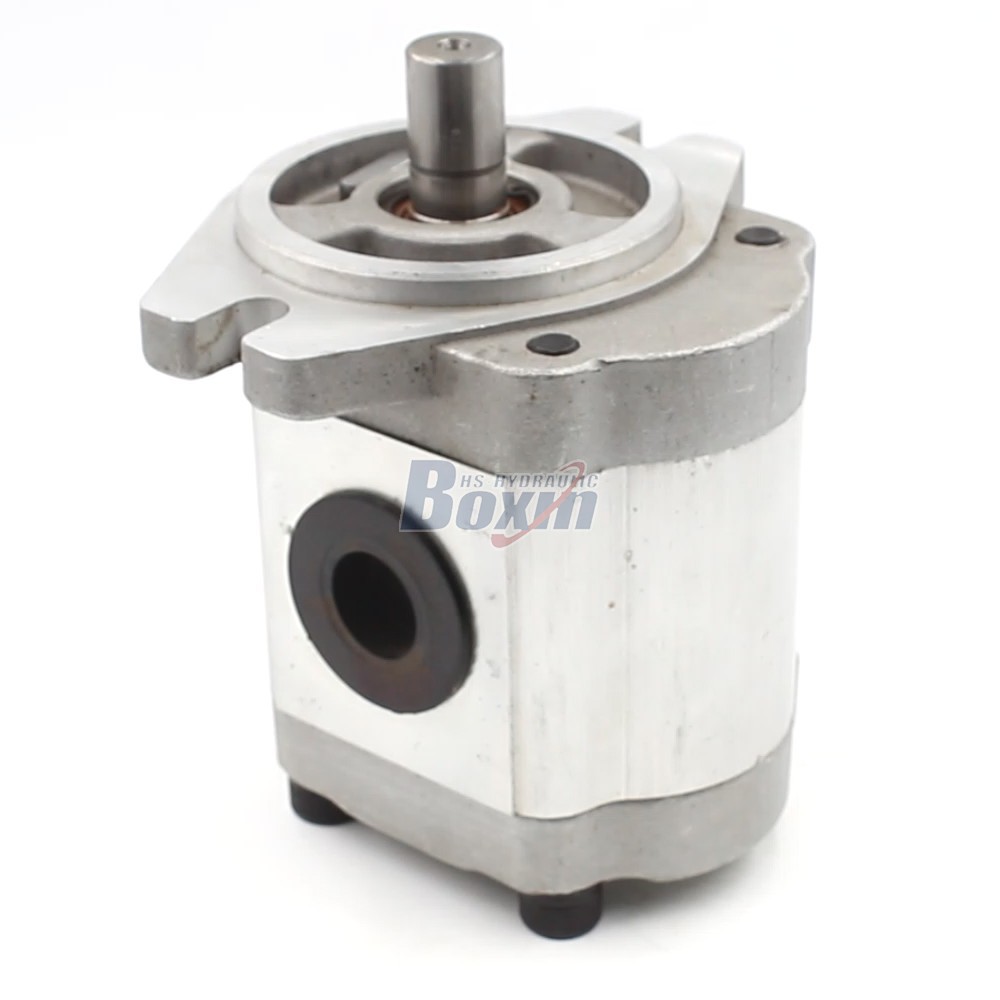

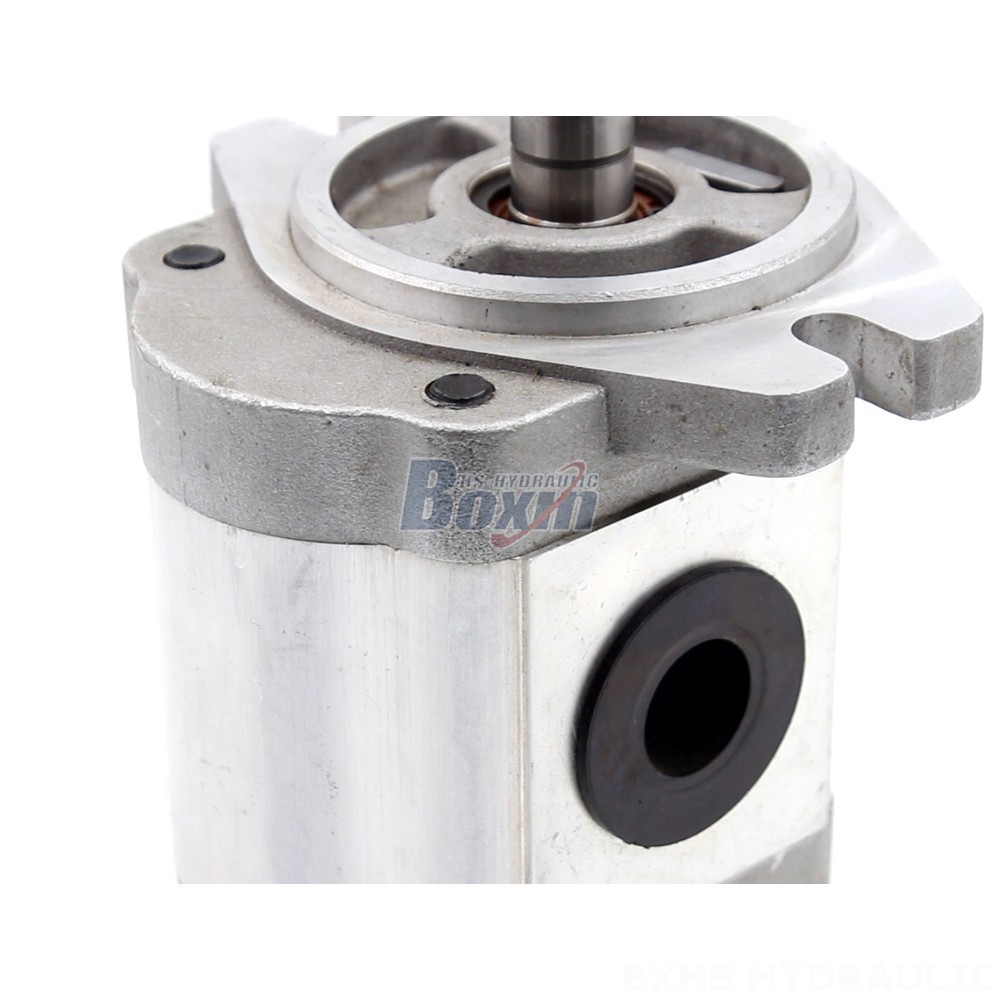

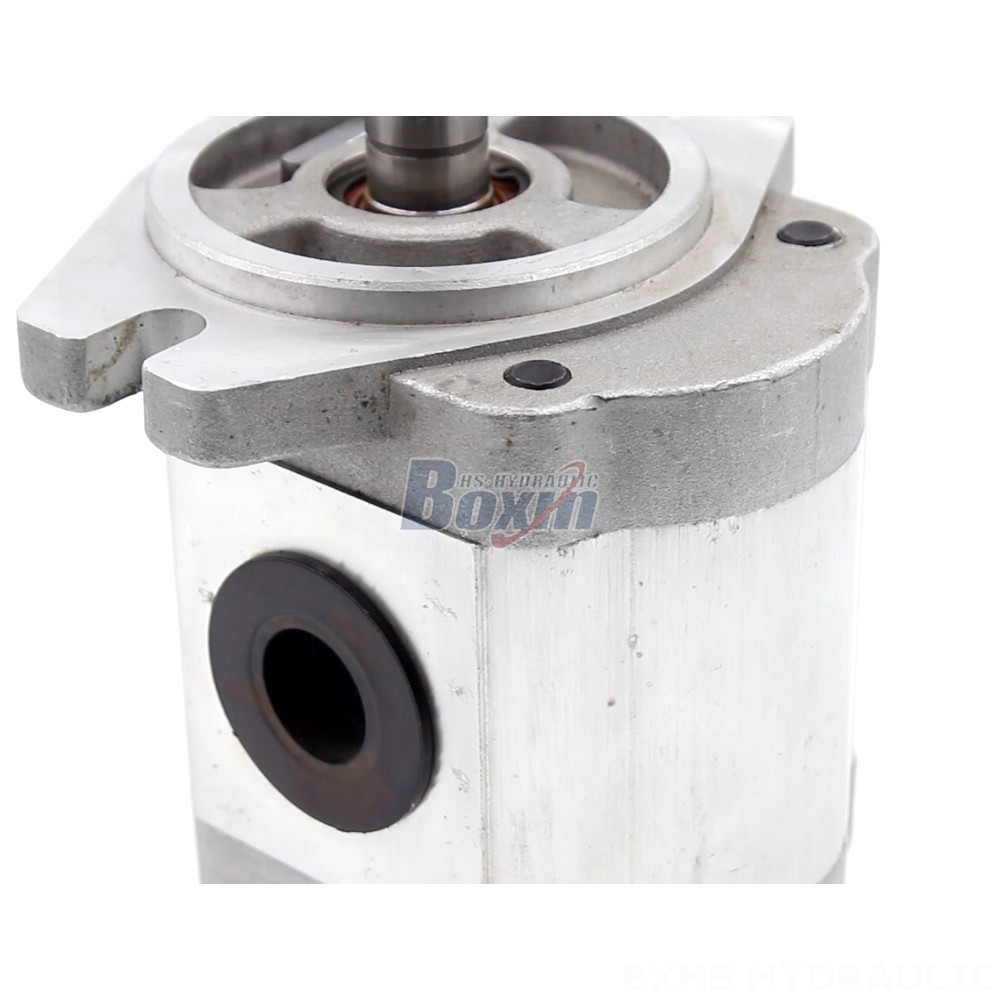

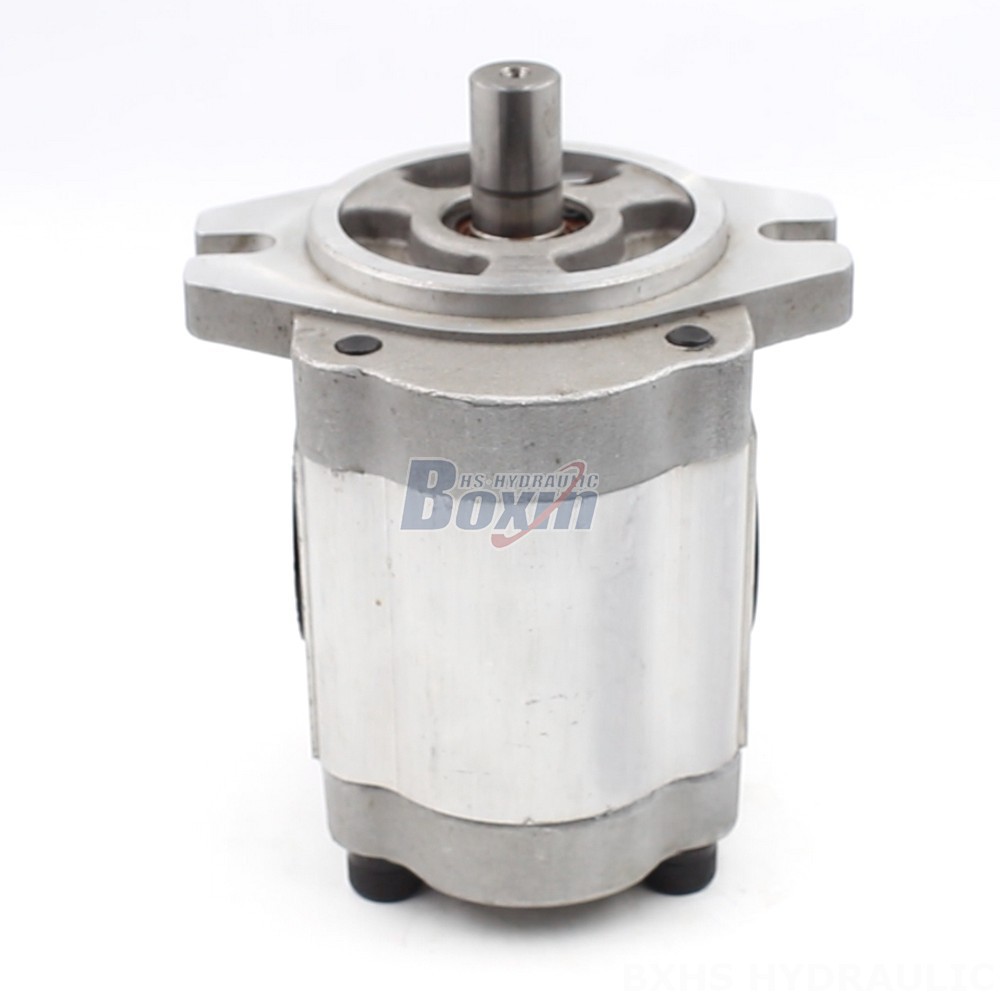

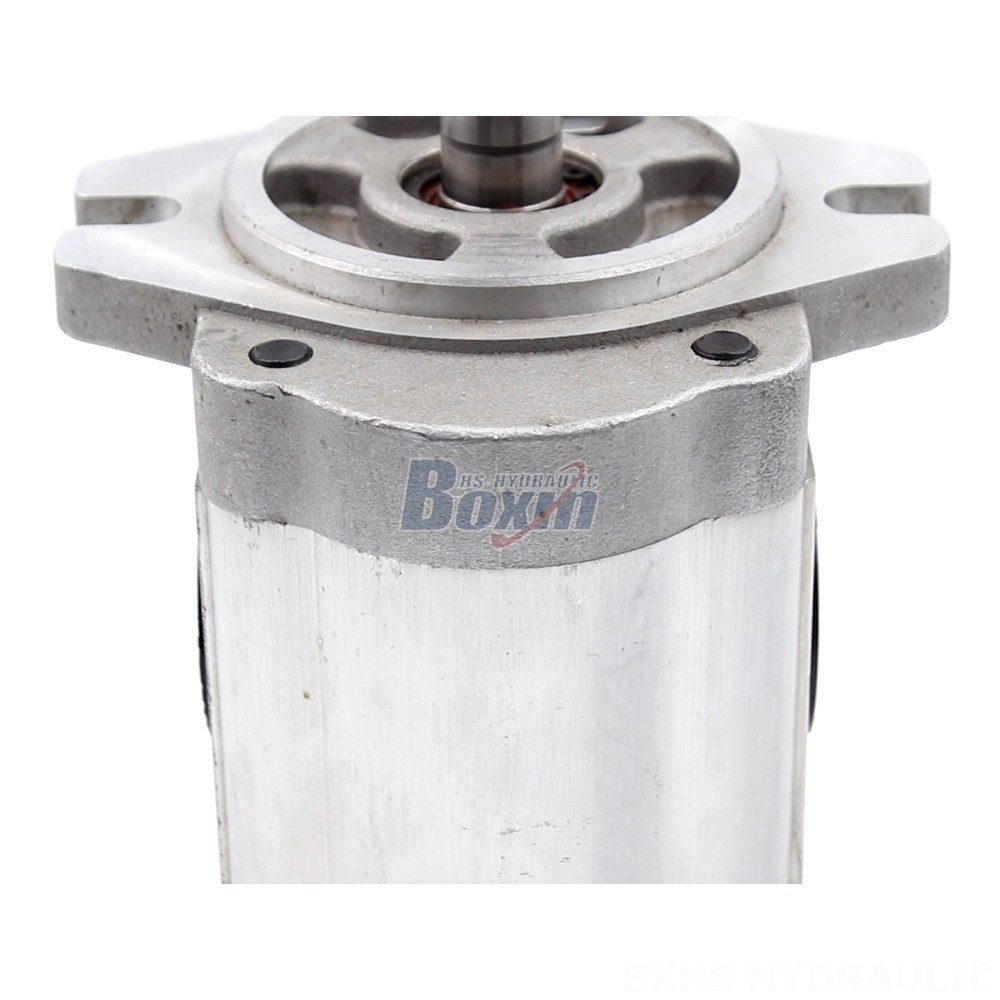

This is a 16 cc/rev hydraulic gear pump with a displacement of 10 cc/rev, rated pressure of 20 MPa (2900 psi), and rated speed of 2000 r/min. It is available in left and right rotation configurations, features an internal gear pump design, and is constructed from aluminium. This pump is suitable for a wide range of applications, including material handling, construction, earth moving, agriculture, and industrial vehicles.
| CBHS-FL3系列 液压齿轮泵 参数 | |
|---|---|
| 排量 | 10 毫升/转, 4 毫升/转, 20 毫升/转, 16 毫升/转, 14 毫升/转, 6 毫升/转 |
| 额定压力 | 20 MPa (2900 psi) |
| 最大压力 | 25 MPa (3625 psi) |
| 额定转速 | 2000 r/min |
| 最大转速 | 3000 r/min |
| 旋转方向 | 左旋(逆时针旋转), 右旋(顺时针旋转) |
| 材质 | 铝 |
| 架构 | 外啮合齿轮泵 |
| 法兰盘类型 | A-菱形法兰 |
| 轴伸形式 | H:矩形花键, X:渐开线花键, P:普通键 |
This high-performance 16 cc/rev hydraulic gear pump is designed for demanding applications in material handling, construction, earth moving, agriculture, and industrial vehicles. It boasts a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min, with a maximum speed of 3000 r/min. The pump is available in both left (counter-clockwise) and right (clockwise) rotation configurations, and features an internal gear pump design for reliability and efficiency. Constructed from robust aluminium, the pump is equipped with an A-Oval flange and a plain key shaft type. It belongs to the CBHS-FL3 series, known for its durability and performance. This pump is ideal for use in forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini-excavators, midi-excavators, tractors and front-end loaders, harvesters, balers, and sprayers. As a global supplier, we offer manufacturing, OEM, ODM, private labeling, and customization services to meet specific customer requirements.
