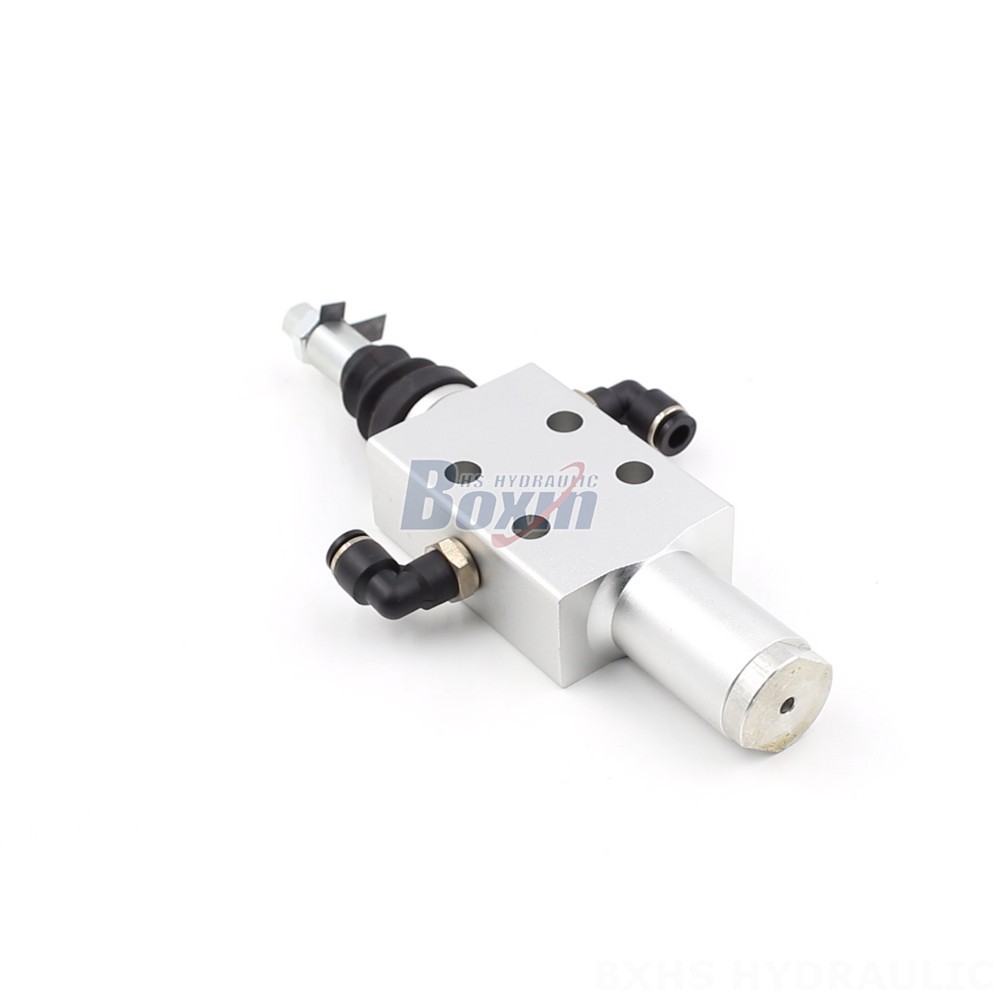

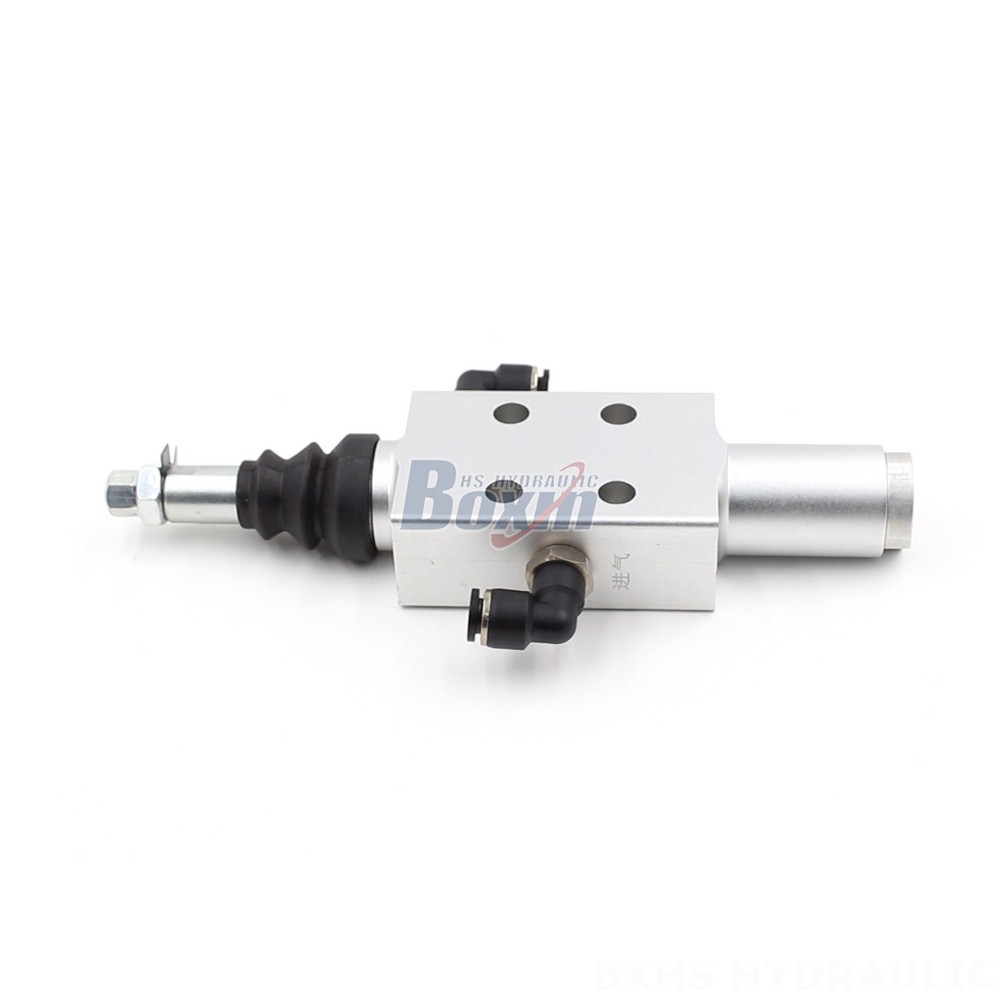

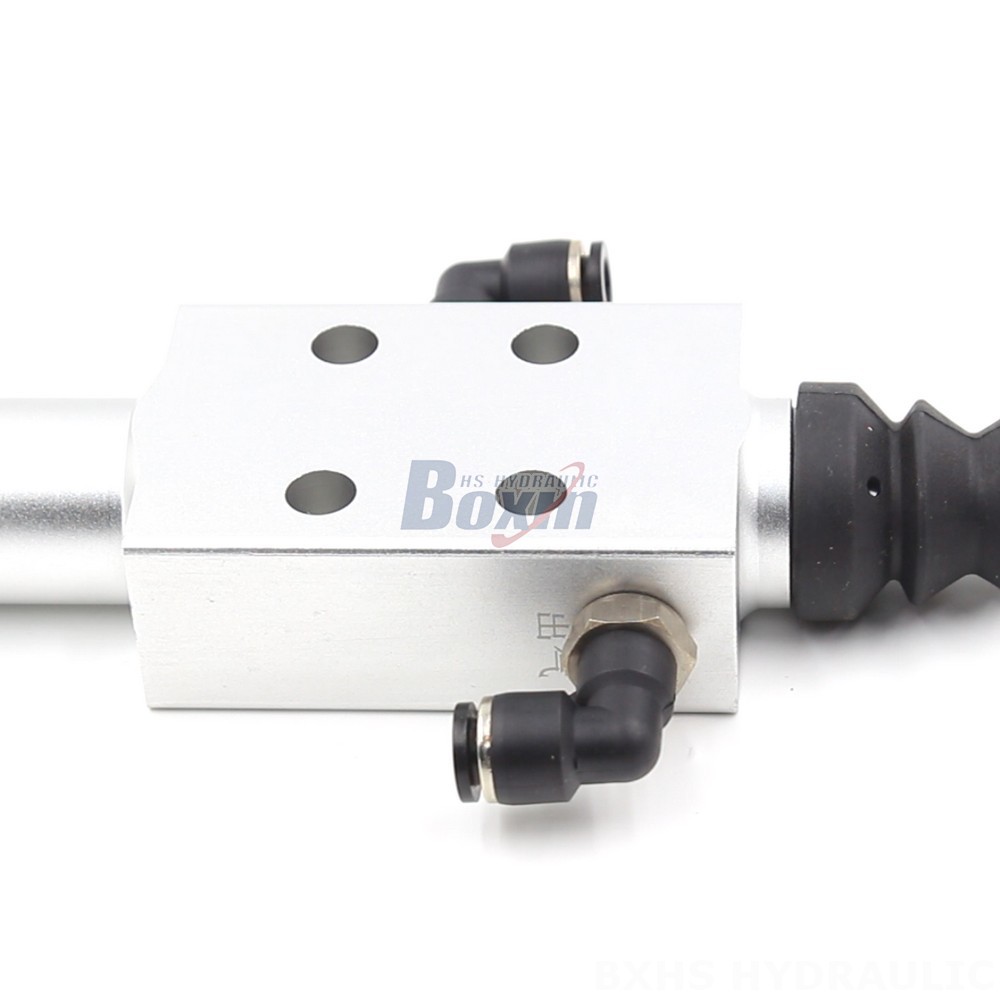

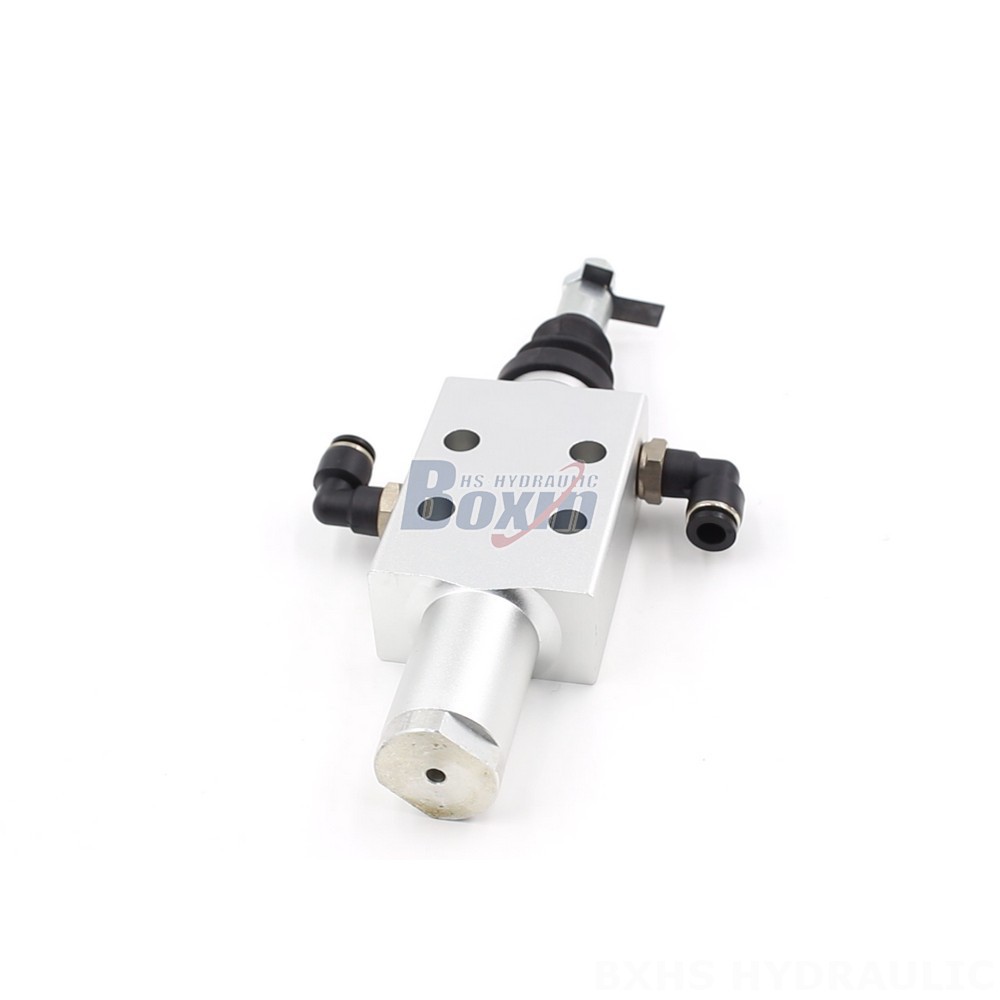

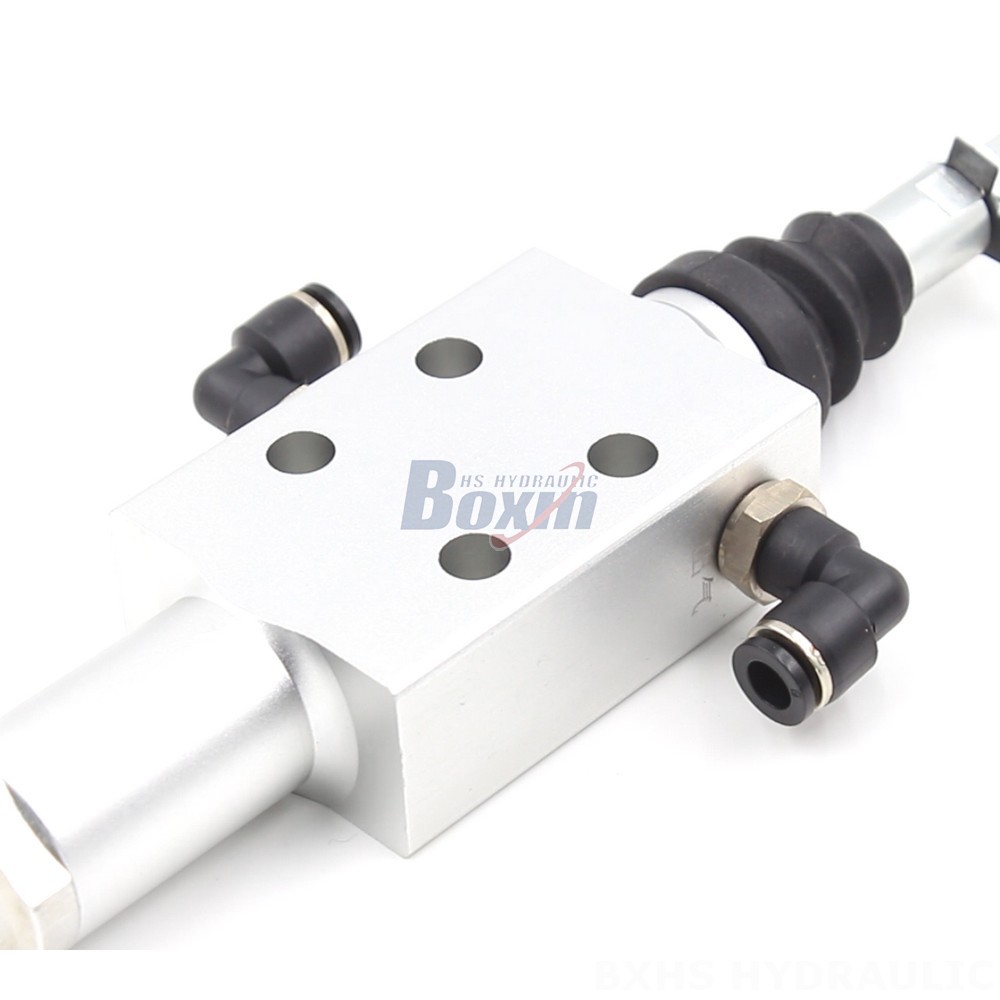

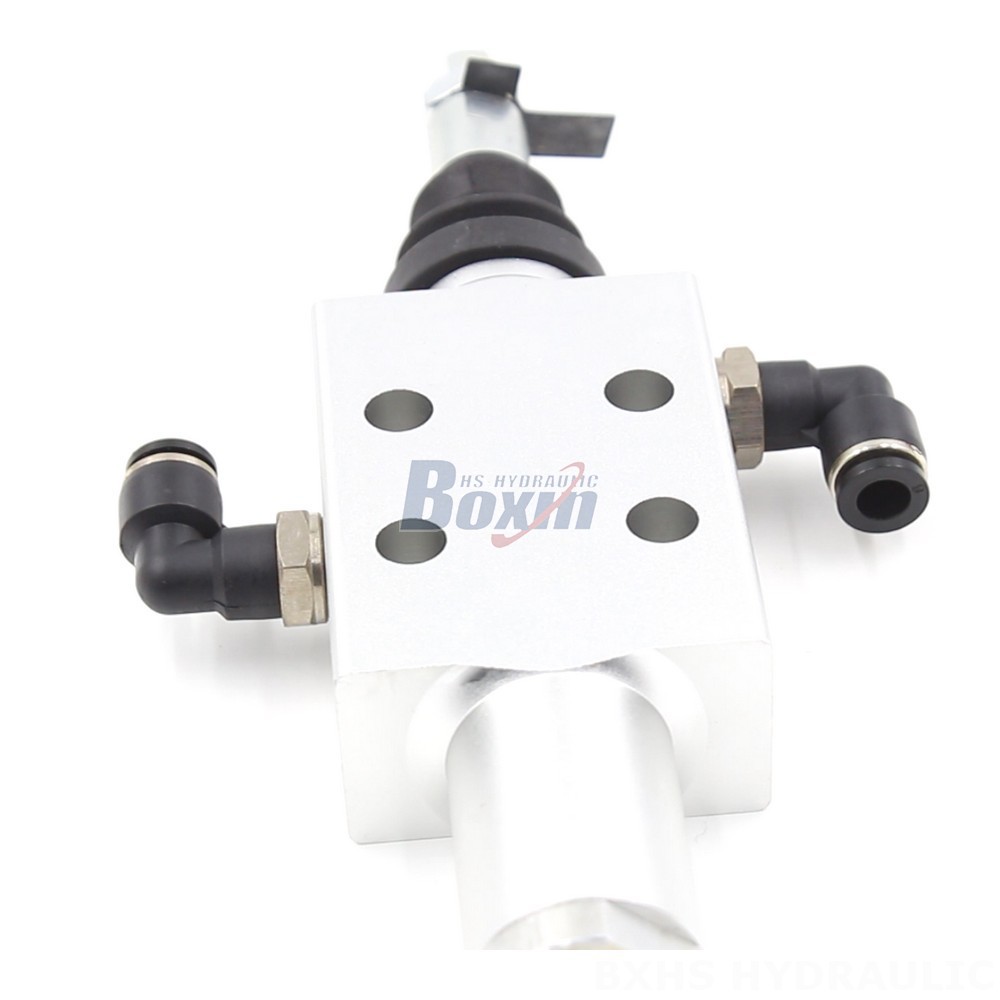

Hydraulic Valve Tractor 1 Spool Pneumatic Directional Valve | Reliable & Efficient Operation

控制方式:气控

路数:1 联

额定流量:40 L/min (10.5 US gpm)

最大压力:1 MPa (145 psi)

进油口:G1/4接口

出油口:G1/4接口

接口尺寸:G1/4接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:XQF系列 单块式方向阀

Packagingsize:22*15*12

Grossweight:0.50 kg

库存: 有货

907 次查看了此产品

Hydraulic Valve Tractor 1 Spool Pneumatic Directional Valve | Reliable & Efficient Operation

Hydraulic Valve Tractor 1 Spool Pneumatic Directional Valve | Reliable & Efficient Operation

Hydraulic Valve Tractor 1 Spool Pneumatic Directional Valve | Reliable & Efficient Operation drawing image

The XQF Series Hydraulic Valve Tractor 1 Spool Pneumatic Directional Valve is a reliable and efficient solution for various applications, including construction, material handling, and agriculture. It features a monoblock design, 1 spool, and a maximum pressure of 200 bar (2900 psi).

XQF系列 单块式方向阀 参数
控制方式 气控
路数 1 联
环境温度范围 -40°C to +60°C (-40°F to +140°F)
结构类型 整体阀
联数 1联
工作粘度范围 12 - 400 mm²/s (12 cSt to 400 cSt)
额定流量 50 L/min (13.2 US gpm)
最大压力 200 bar (2900 psi)
进油口 G1/4接口
出油口 G1/4接口
接口尺寸 G1/4接口

This high-performance XQF Series Hydraulic Valve Tractor 1 Spool Pneumatic Directional Valve is designed for demanding applications in construction, material handling, and agriculture. Featuring a robust monoblock structure, it offers exceptional reliability and efficiency. Its pneumatic control provides precise and responsive operation. With a single spool configuration and a maximum pressure rating of 200 bar (2900 psi), this valve is capable of handling various hydraulic functions. Its wide operating viscosity range (12-400 mm²/s) ensures optimal performance across diverse environments. The valve is also built to withstand extreme temperatures, operating flawlessly between -40°C to +60°C (-40°F to +140°F). The XQF Series is designed for compatibility with various equipment, including forklifts, telehandlers, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and sprayers.
