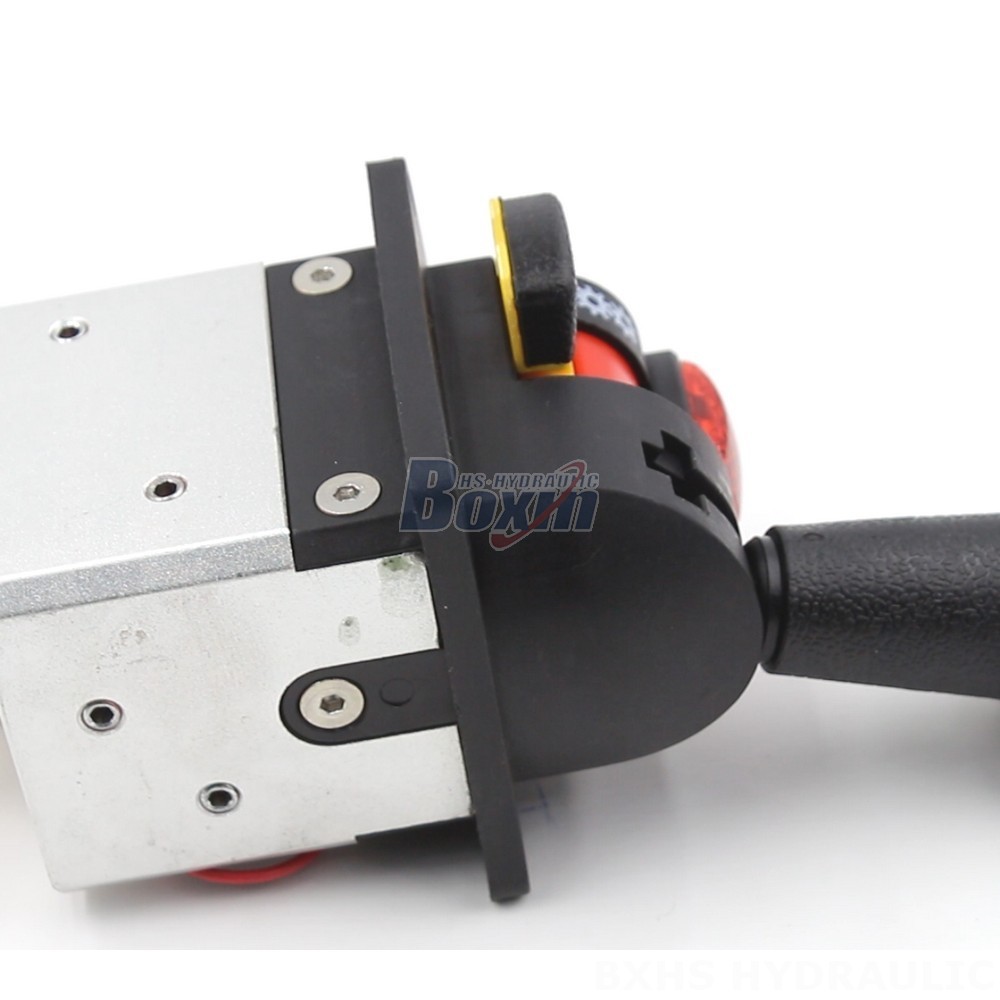

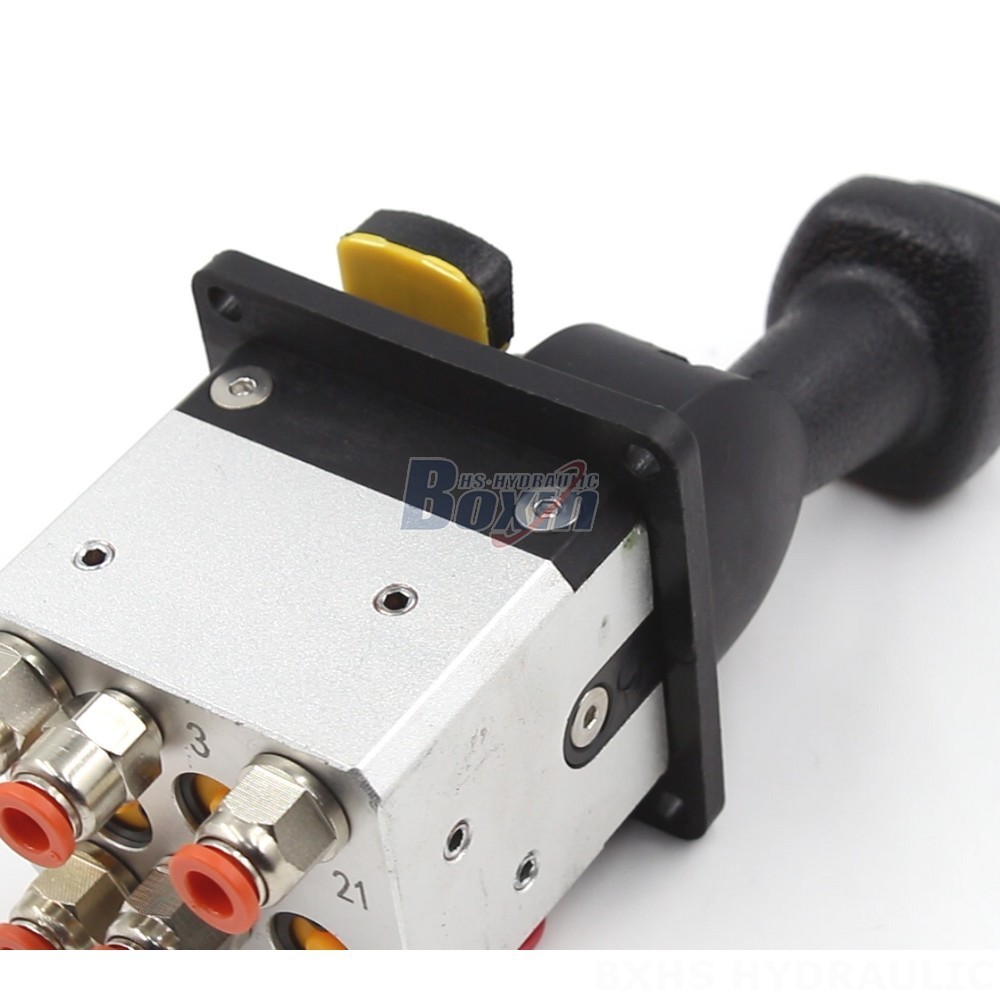

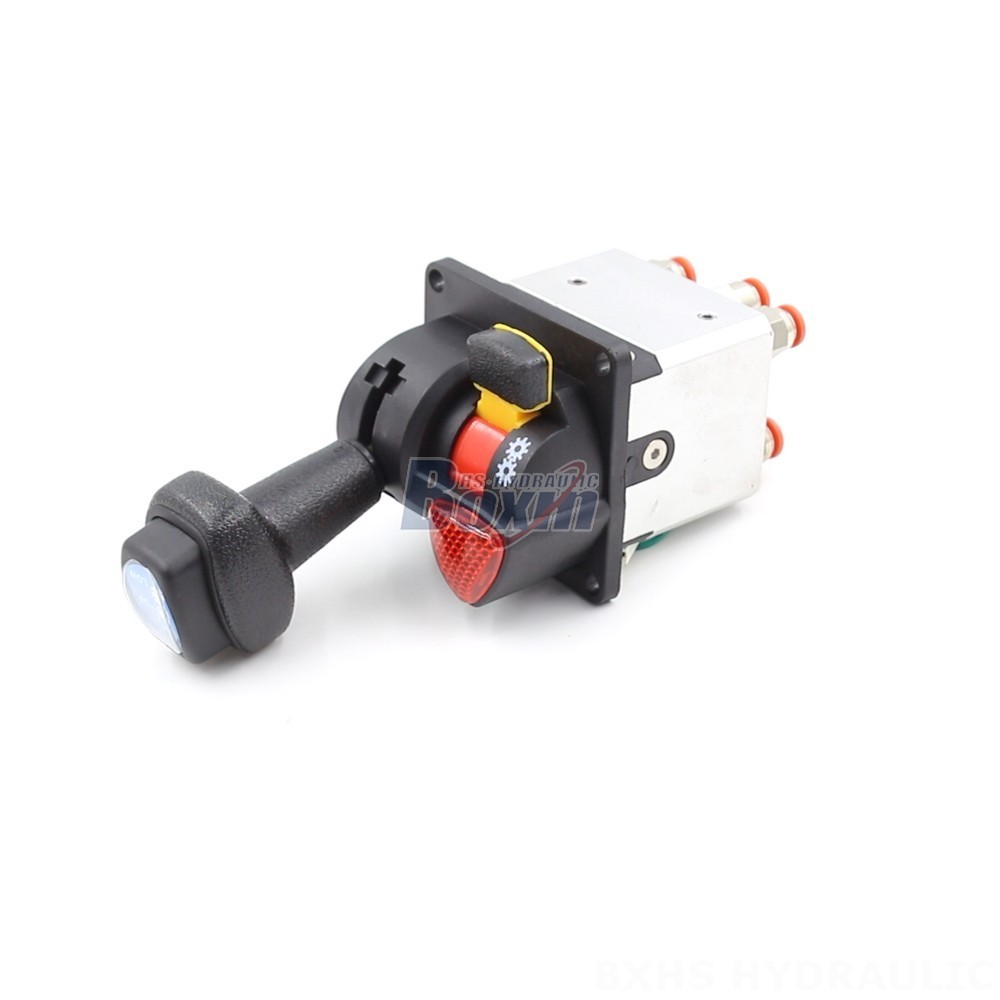

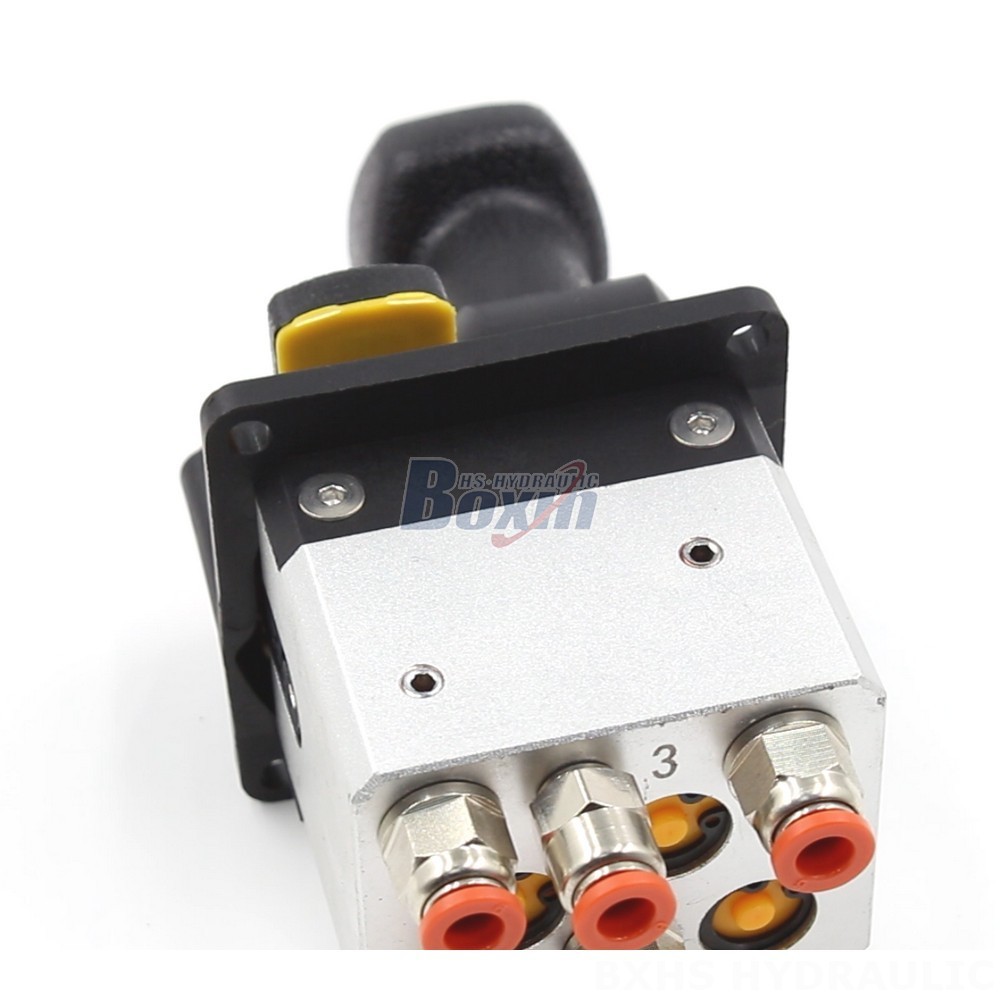

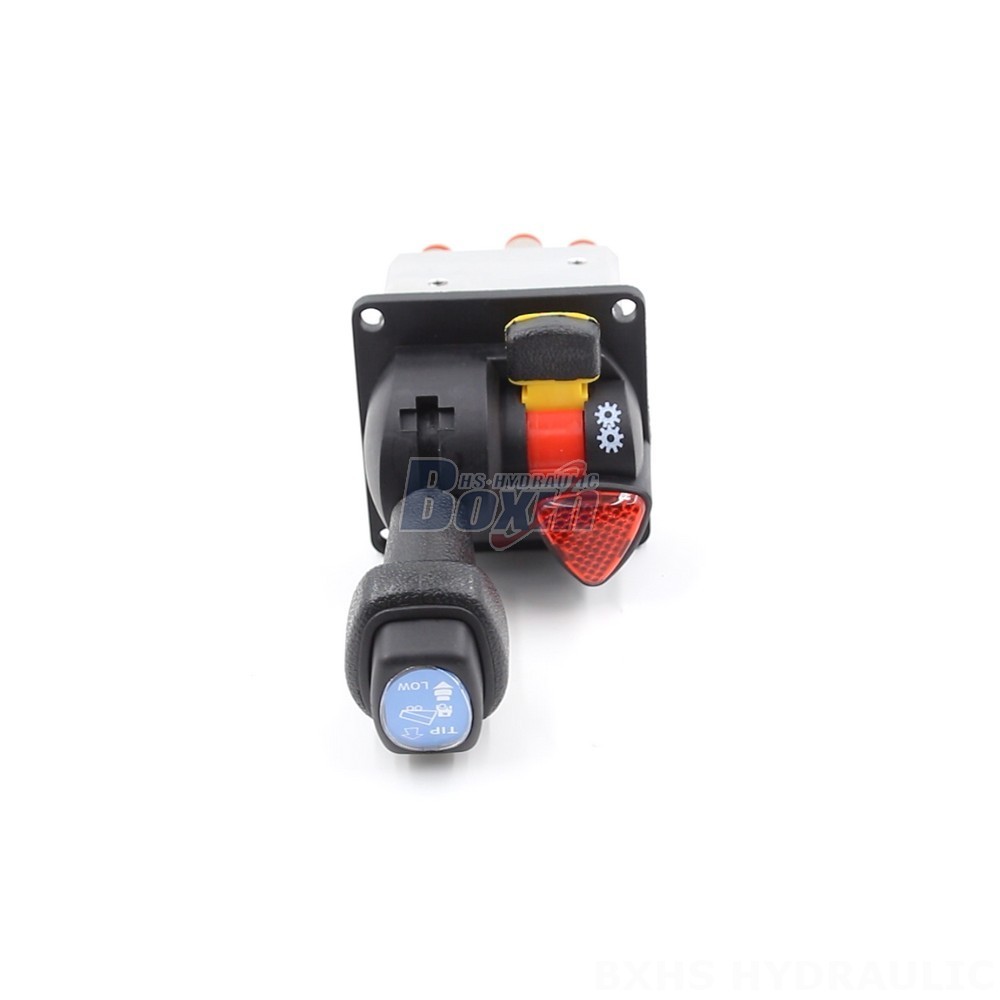

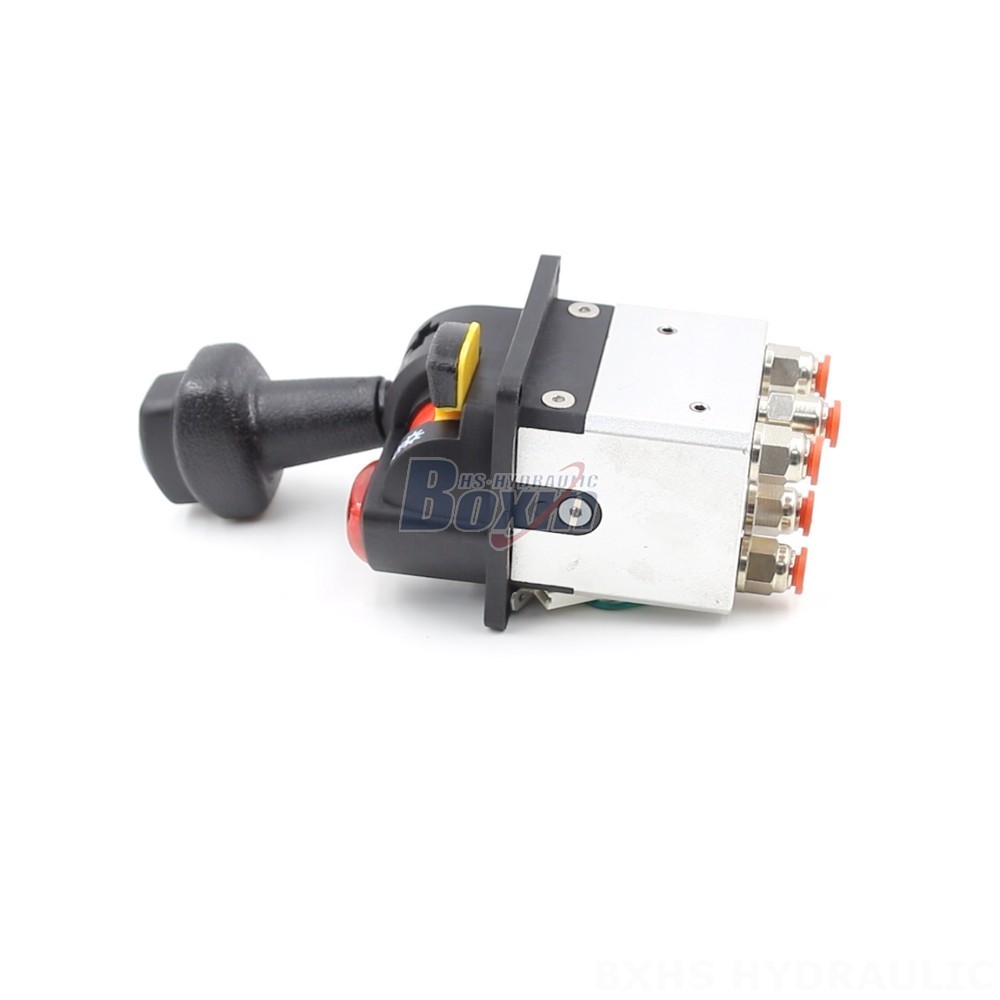

The BKQF34 Series Directional Control Valve is a reliable and durable 1-spool pneumatic control valve designed for fluid power systems in various applications, including construction equipment, material handling, agriculture, and industrial vehicles. It features a compact monoblock structure, a rated flow of 40 L/min, and a maximum pressure of 1 MPa.
| BKQF34系列 气动控制阀 参数 | |
|---|---|
| 控制方式 | 气控 |
| 路数 | 1 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 1 MPa (145 psi) |
| 进油口 | G1/4接口 |
| 出油口 | G1/4接口 |
| 接口尺寸 | G1/4接口 |
This 1-section, 1-spool pneumatic control valve is designed for use in a variety of fluid power systems. It features a compact monoblock structure and a rated flow of 40 L/min. The valve is capable of handling pressures up to 1 MPa and is suitable for use in operating temperatures ranging from -40°C to +80°C. The BKQF34 Series Directional Control Valve is perfect for applications in construction and earth moving, material handling, agriculture, and industrial vehicles. It is specifically designed for use in forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini-excavators, midi-excavators, tractors and front-end loaders, harvesters, balers, and sprayers.
